IBM Power System 9009-41A User Manual

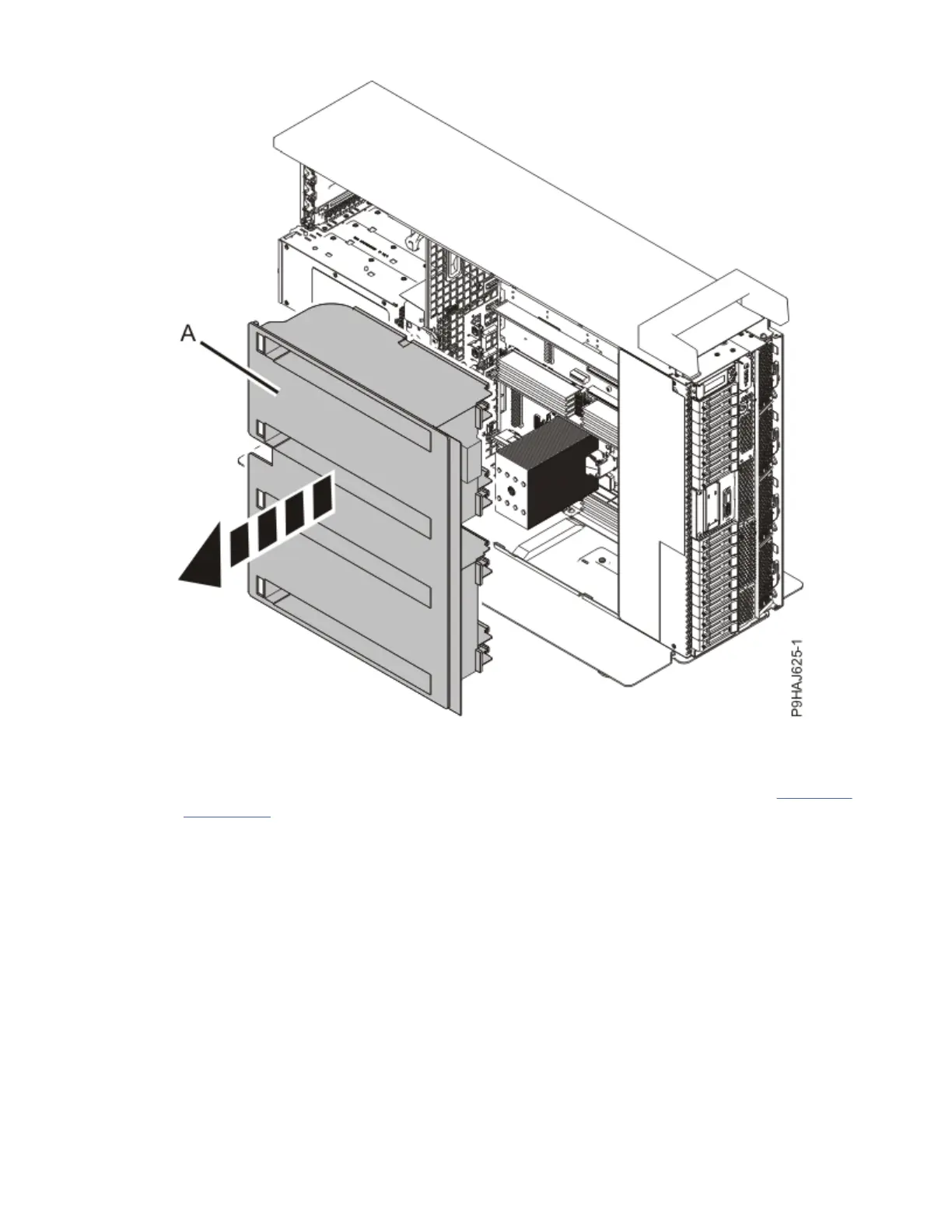

Figure 106. Removing the air baffle from a stand-alone system
3. If the server has an RDX drive, partially remove the RDX docking station.
a) Push the RDX docking station latch upwards in the direction of the arrow as shown in Figure 107
on page 112.
b) Slide the RDX docking station about 1 in (2.5 cm) from of the system.
Control panel cables for the 9009-41A, 9009-42A, or 9223-42H
111

IBM Power System 9009-41A Specifications

General

Processor	POWER9
Memory slots	16
Form factor	4U
Operating systems supported	AIX, IBM i, Linux
Processor cores	4
Processor threads	32
Processor speed	2.8 GHz
Maximum memory	1024 GB
Storage	SAS SFF Gen3 HDD/SSD, NVMe SSD
