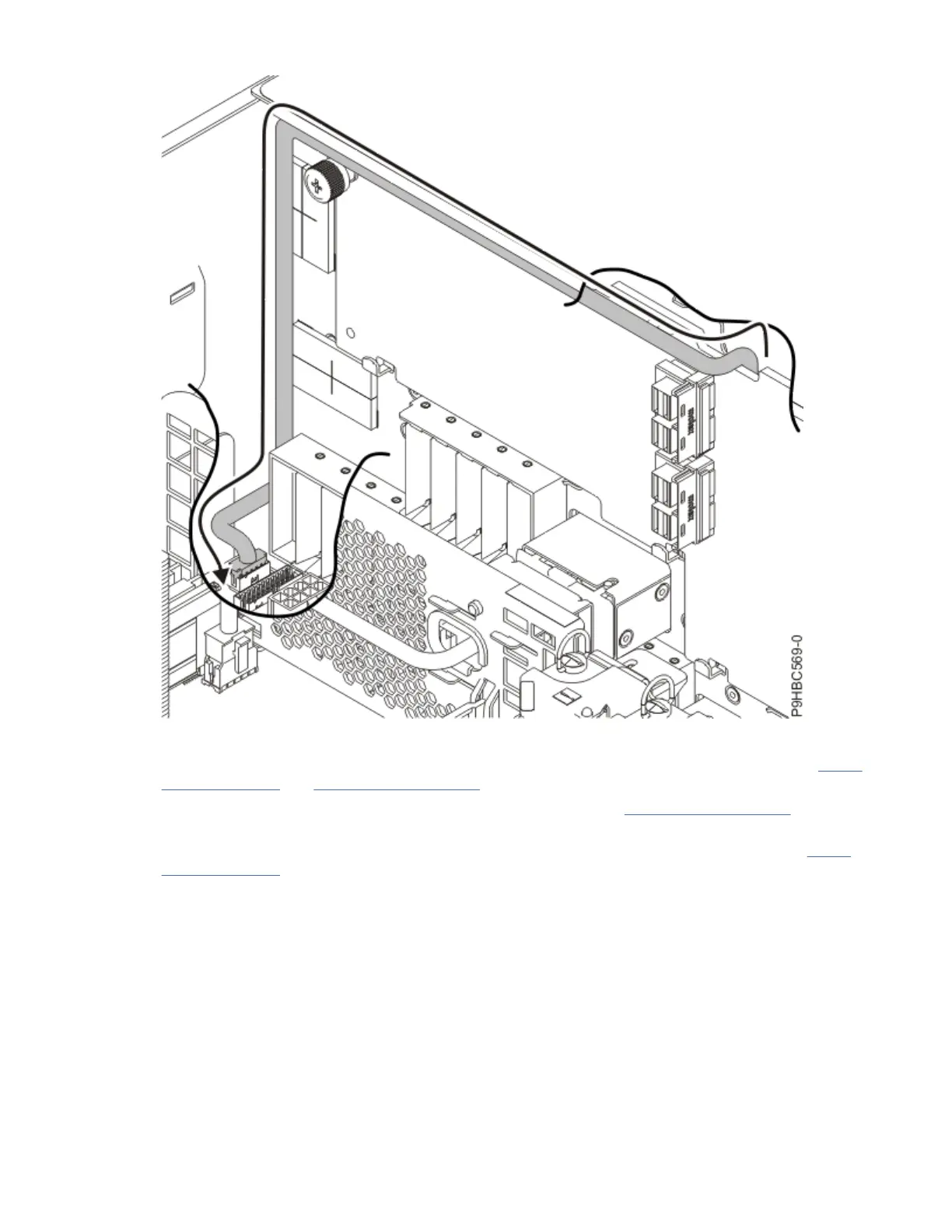

Figure 120. Control panel display cable path for a rack-mounted system

4. For the stand-alone system, insert the control panel display cable into the system as shown in Figure

121 on page 126 and Figure 122 on page 127.

a) Pull any cable slack inside the system in the direction shown in Figure 122 on page 127 to prevent

the cable from interfering with the fan.

5. Secure the control panel display housing to the system using the two screws (A) as shown in Figure

121 on page 126.

Control panel cables for the 9009-41A, 9009-42A, or 9223-42H

125
