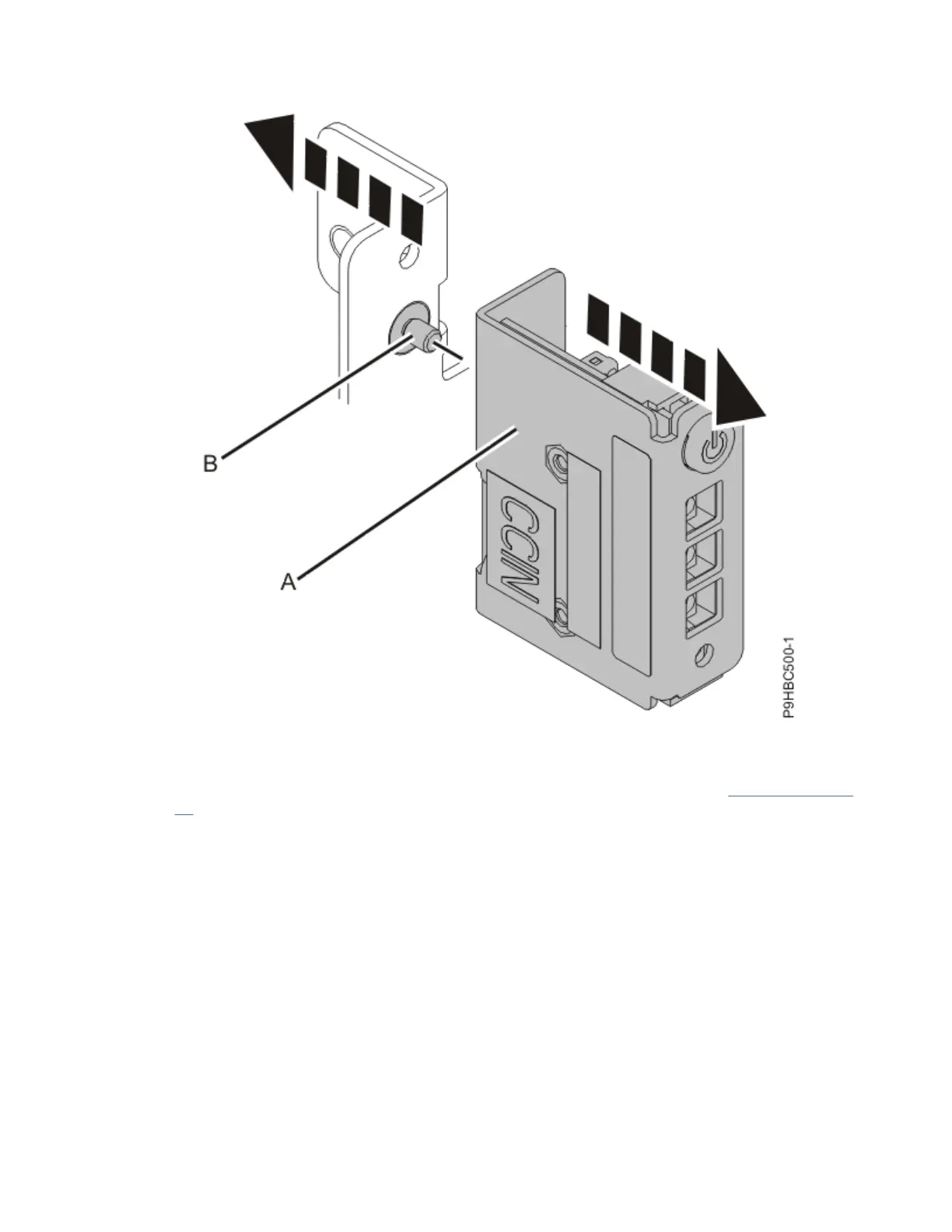

Figure 16. Removing the control panel from the bracket for a rack-mounted system

3. Complete the following steps for a stand-alone system.

a) Remove the screw (A) that secures the control panel to the system as shown in Figure 17 on page

19, then pivot the control panel up to release the top tab (B).

Power Systems: Power Systems: Control panel

Questions and Answers:

Need help?

Do you have a question about the IBM Power System 9009-41A and is the answer not in the manual?

IBM Power System 9009-41A Specifications

General

Processor	POWER9
Memory slots	16
Form factor	4U
Operating systems supported	AIX, IBM i, Linux
Processor cores	4
Processor threads	32
Processor speed	2.8 GHz
Maximum memory	1024 GB
Storage	SAS SFF Gen3 HDD/SSD, NVMe SSD
