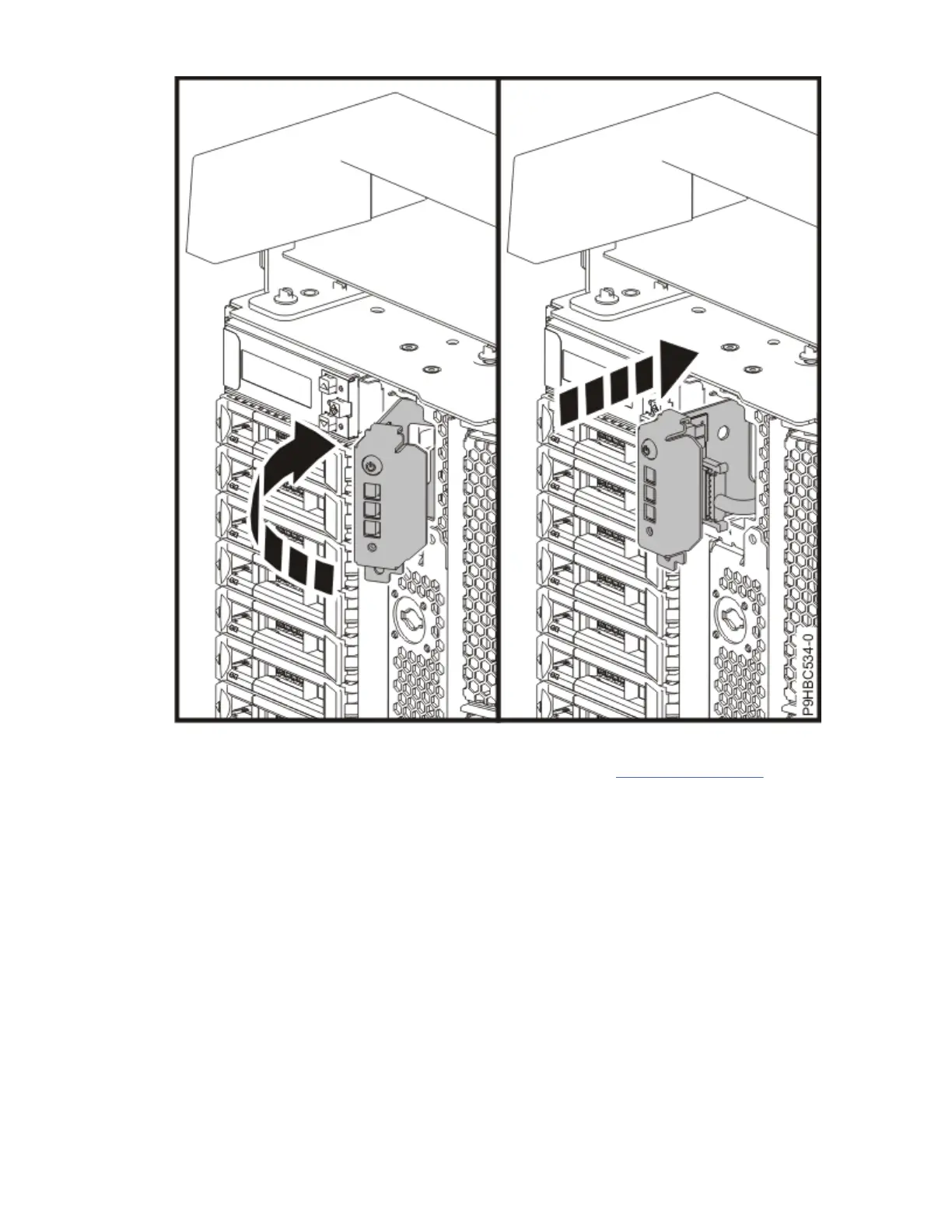

Figure 24. Replacing the control panel in a stand-alone system
b) Pivot the control panel up to secure the top tab (A) as shown in Figure 25 on page 27, then
replace the screw (B) that secures the control panel to the system.
26
Power Systems: Power Systems: Control panel
