IBM Power System 9009-41A - Page 46

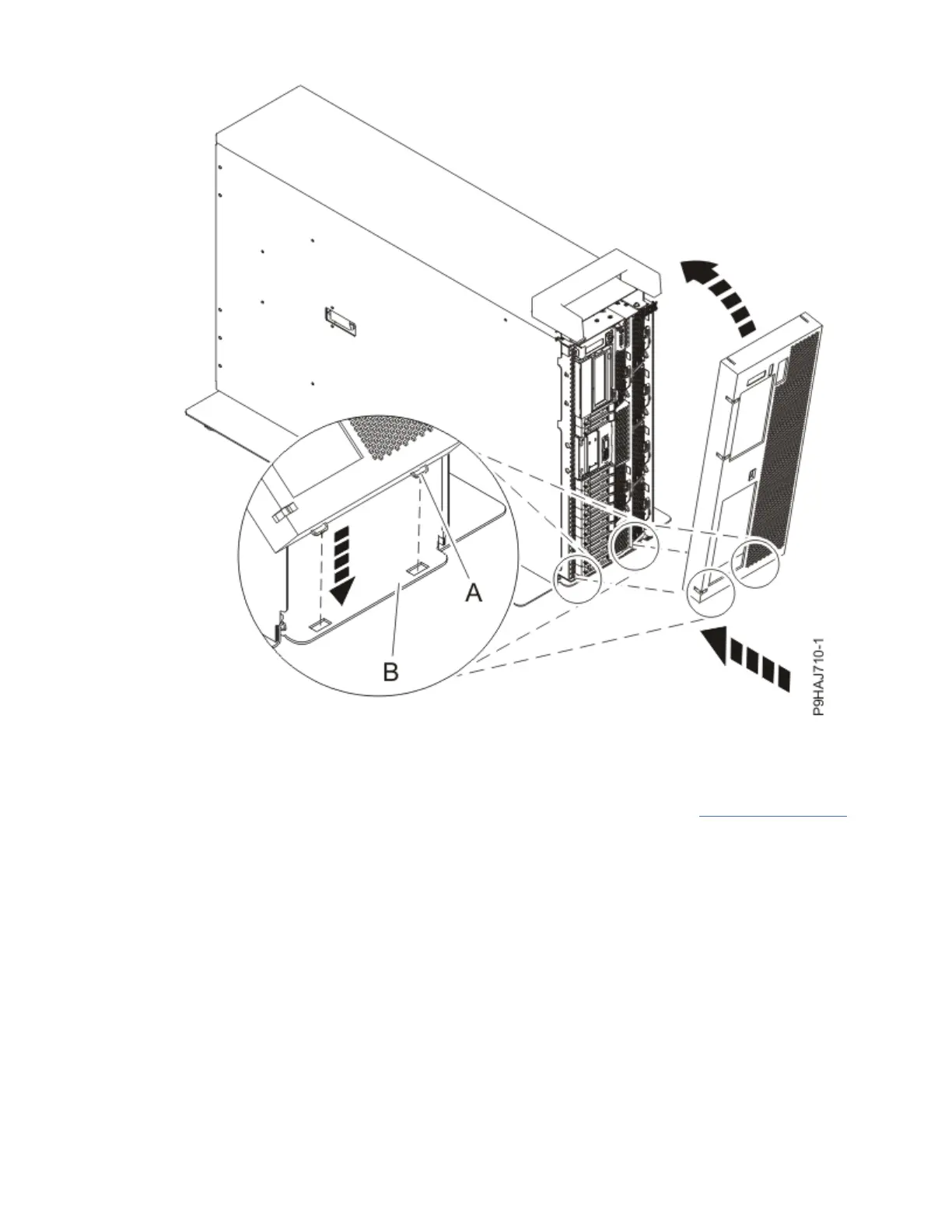

Figure 30. Installing the front cover and door
c) Rotate the cover up and towards the system until the release latch is seated into its respective
slot.
d) Twist the cover latch to the right (clockwise) to lock the cover as shown in Figure 31 on page 33.
Vertical is locked; horizontal is unlocked.
32
Power Systems: Power Systems: Control panel
