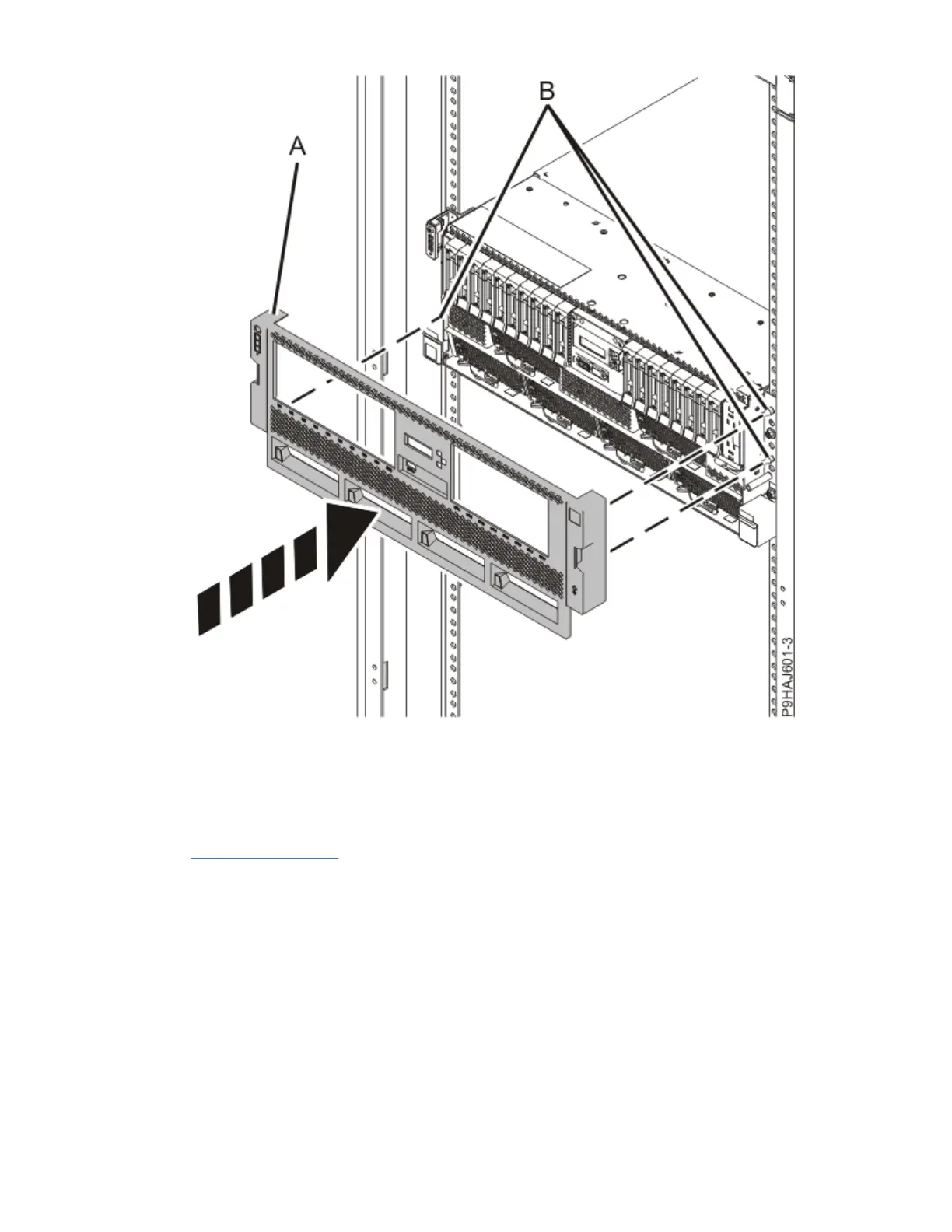

Figure 45. Installing the front cover

7. For a stand-alone system, install the front cover and door by completing these steps.

a) Ensure that you have the electrostatic discharge (ESD) wrist strap on and that the ESD clip is

plugged into a ground jack or connected to an unpainted metal surface. If not, do so now.

b) Align the cover until the two cover tabs (A) are seated into the slots on the base plate (B) as shown

in Figure 46 on page 48.

Control panel and control panel display for the 9009-41A, 9009-42A, or 9223-42H

Questions and Answers:

Need help?

Do you have a question about the IBM Power System 9009-41A and is the answer not in the manual?

IBM Power System 9009-41A Specifications

General

Processor	POWER9
Memory slots	16
Form factor	4U
Operating systems supported	AIX, IBM i, Linux
Processor cores	4
Processor threads	32
Processor speed	2.8 GHz
Maximum memory	1024 GB
Storage	SAS SFF Gen3 HDD/SSD, NVMe SSD
