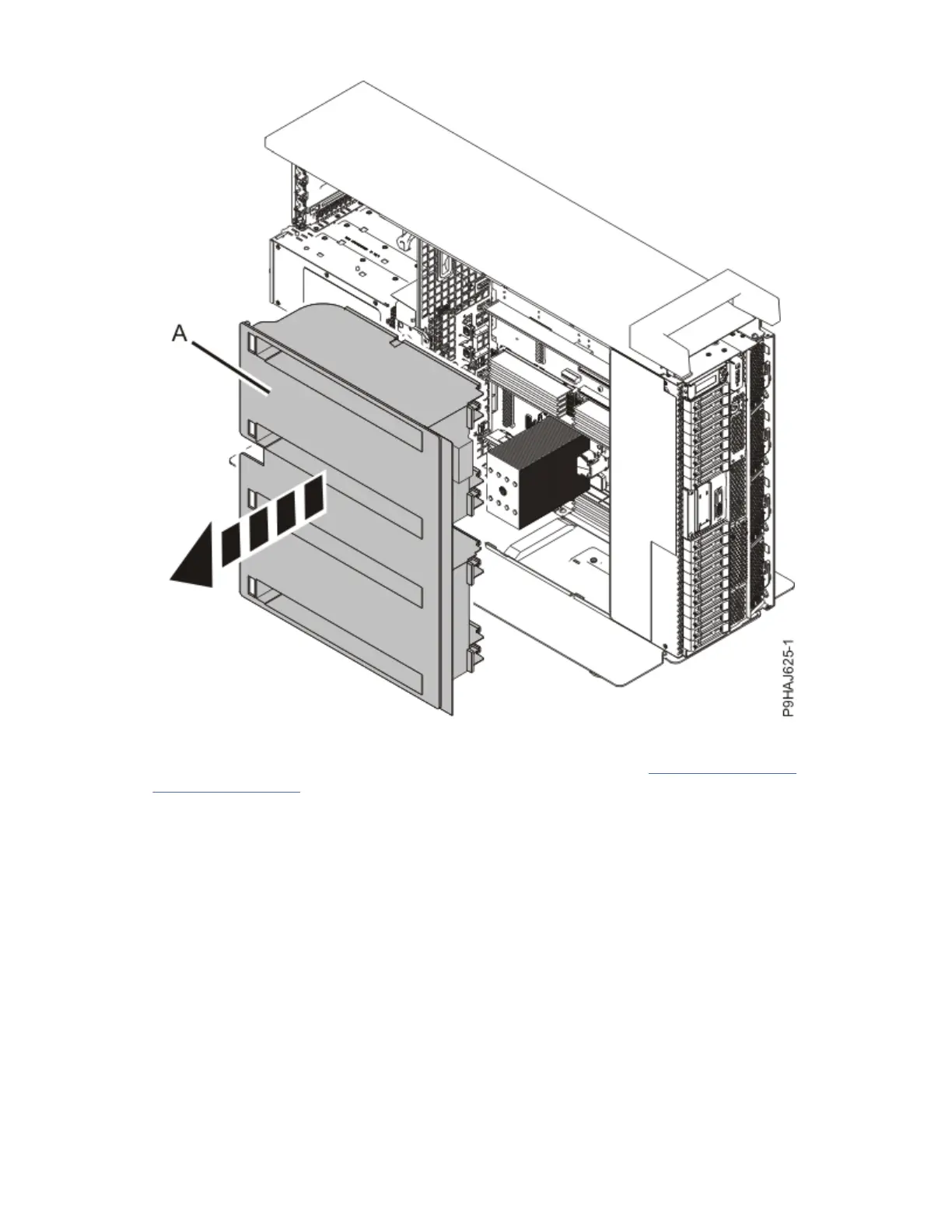

Figure 60. Removing the air baffle from a stand-alone system

3. Unplug the control panel cable from the system backplane as shown in Figure 61 on page 65 or

Figure 62 on page 66.

As you face the chassis, the connector is in the left front corner. You can pull the cable from the

system backplane by using the cable cover near the plug.

Power Systems: Power Systems: Control panel

Questions and Answers:

Need help?

Do you have a question about the IBM Power System 9009-41A and is the answer not in the manual?

IBM Power System 9009-41A Specifications

General

Processor	POWER9
Memory slots	16
Form factor	4U
Operating systems supported	AIX, IBM i, Linux
Processor cores	4
Processor threads	32
Processor speed	2.8 GHz
Maximum memory	1024 GB
Storage	SAS SFF Gen3 HDD/SSD, NVMe SSD
