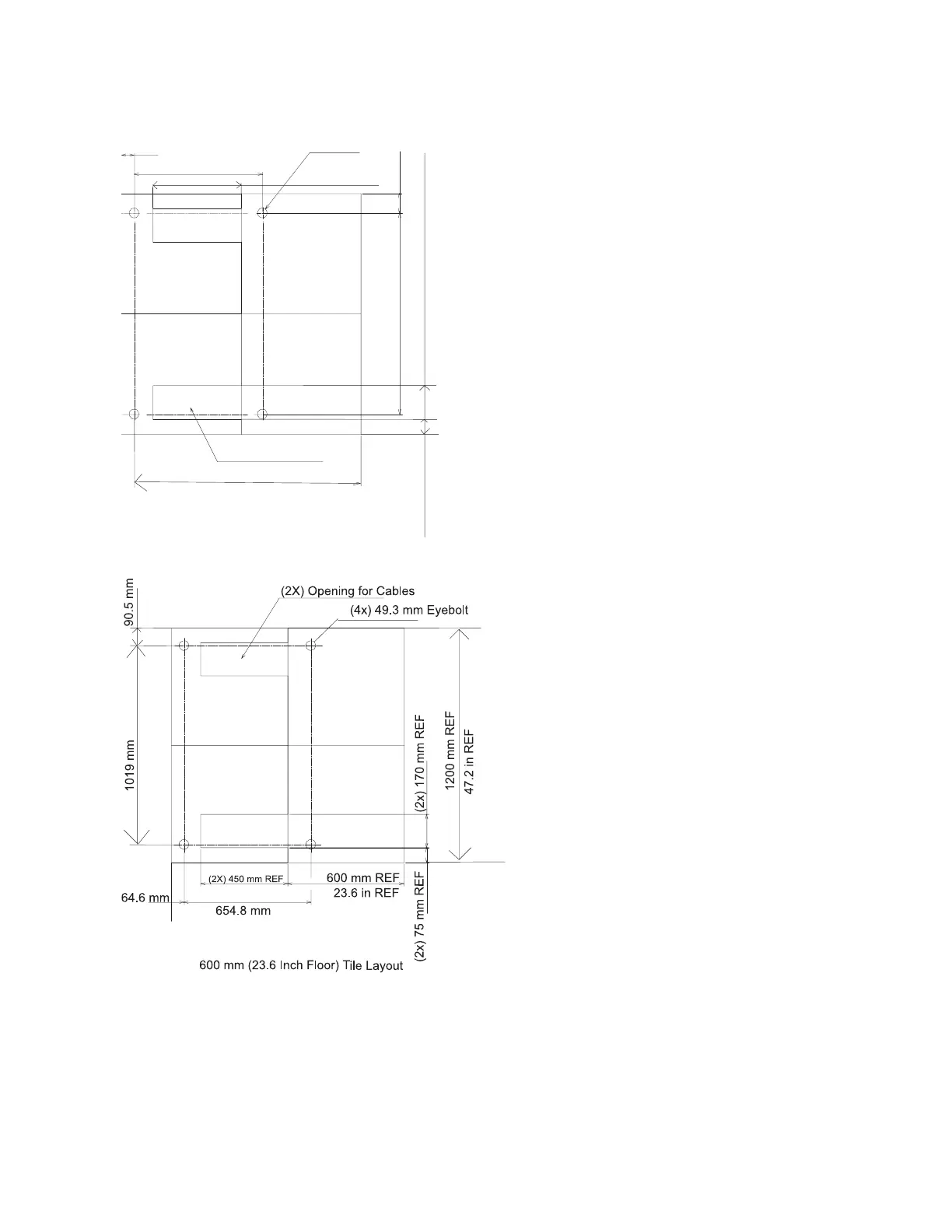

3. Plan for installing four eyebolts positioned to match the dimensions given in the following illustrations.
654.8 mm
(4x) 49.3 mm
Eyebolt
(2x) 450 mm REF
1220 mm REF
1019 mm
(2x) 170 mm REF
(2x) 75 mm REF
64.6 mm
100.5 mm
610 mm (24 Inch) Floor Tile Layout
(2x) Opening for Cables
48 in REF
4. Install the eyebolts to the floor.
