Asynchronous Adapter Planning Charts: Example

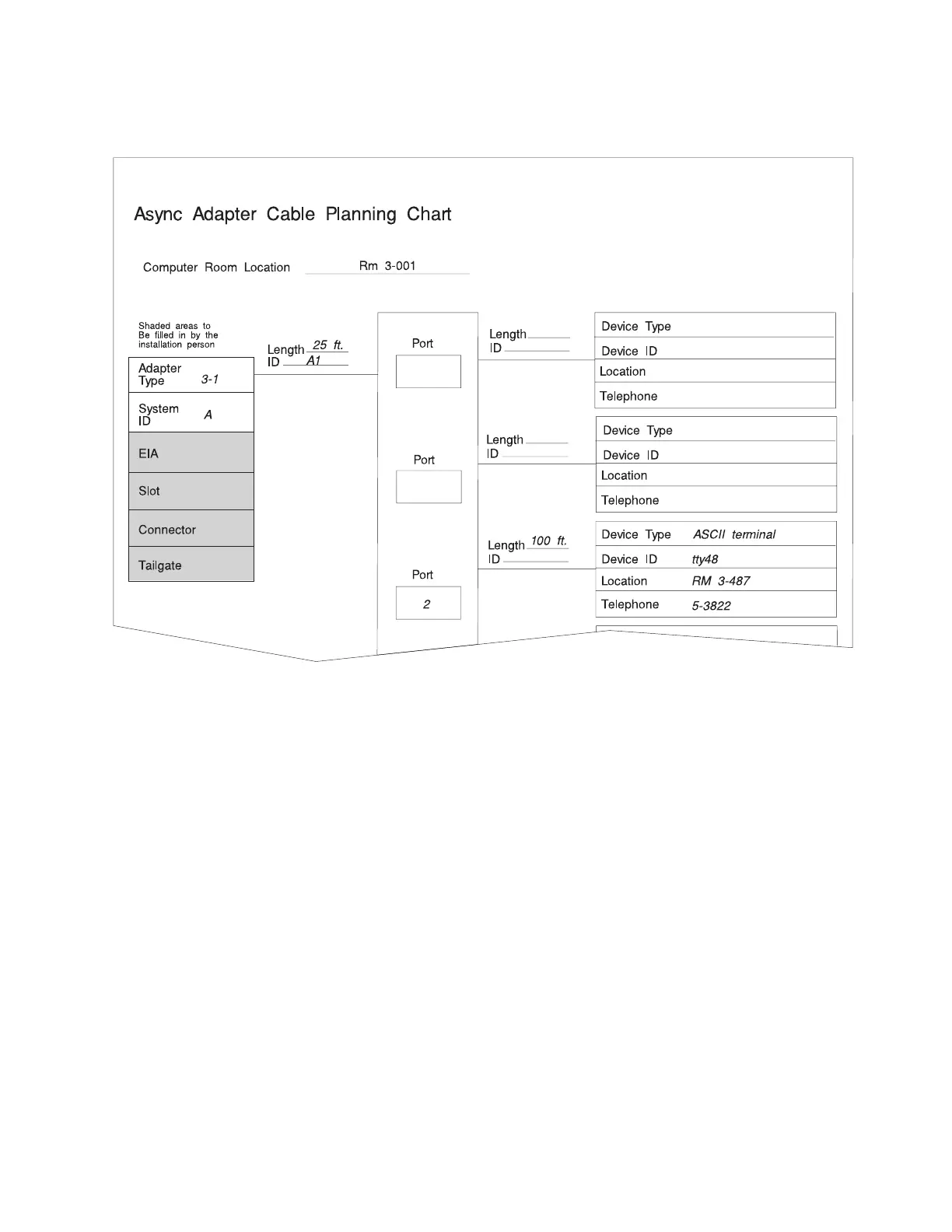

An example of an Async Cable Planning Chart for the 8 port async adapter complete for an ASCII
terminal. In this example, the terminal is attached to Port 2. Use this chart for 8-port or 16-port
asynchronous adapters.
