SSA Cabling Connections
This section shows how to connect the cables from the HA cluster server and the 7133 Serial Disk
Systems.
SSA From Cluster Servers to Double Looped 7133

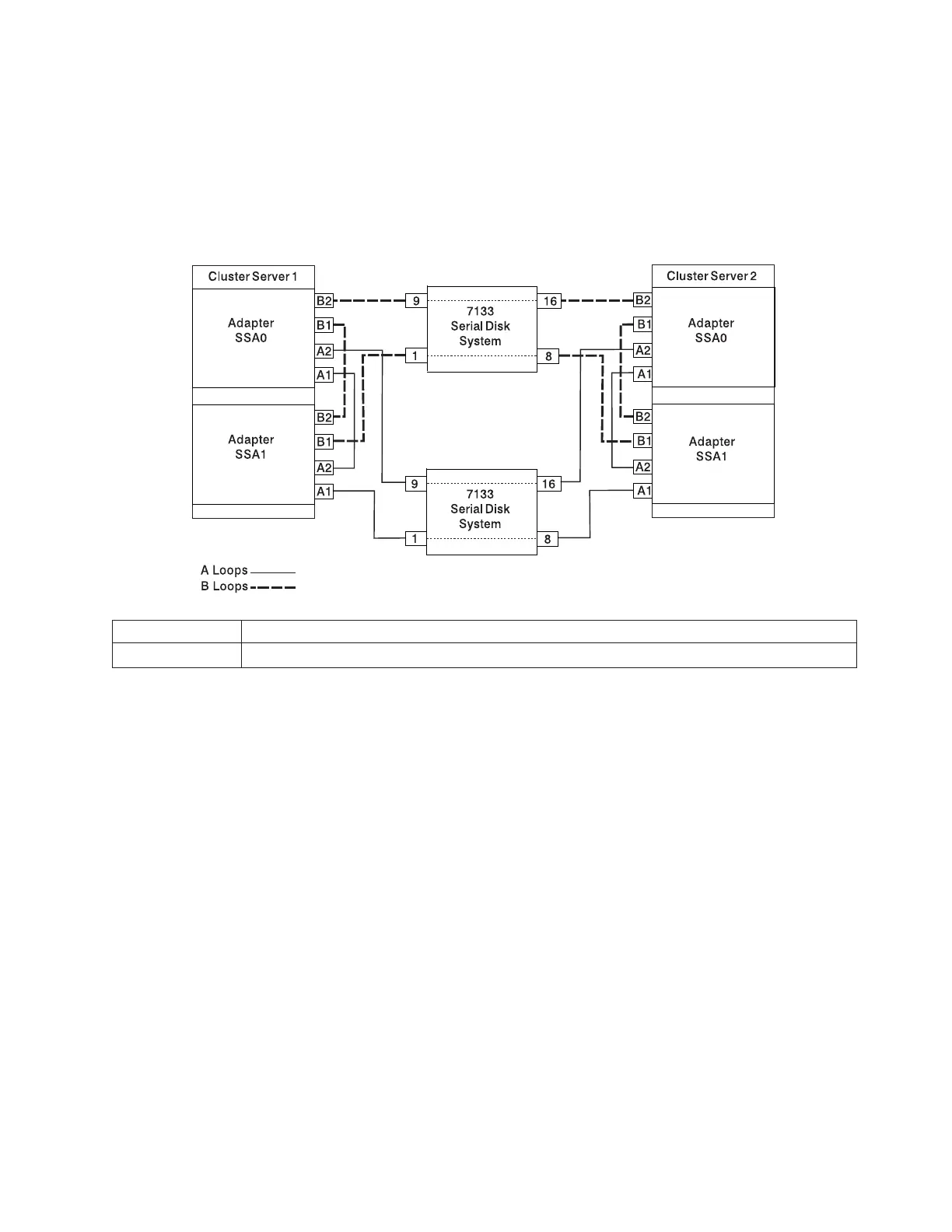

The following figure shows cabling for a fully populated 7133 (16 disk drives installed). Configuration with
fewer disk drives may use different port numbers.
Index Description
1 7133 SSA Cable (FC 5050, PN 88G6404)
Chapter 13. High Availability Information 373
