Rack Configuration (AC Systems)

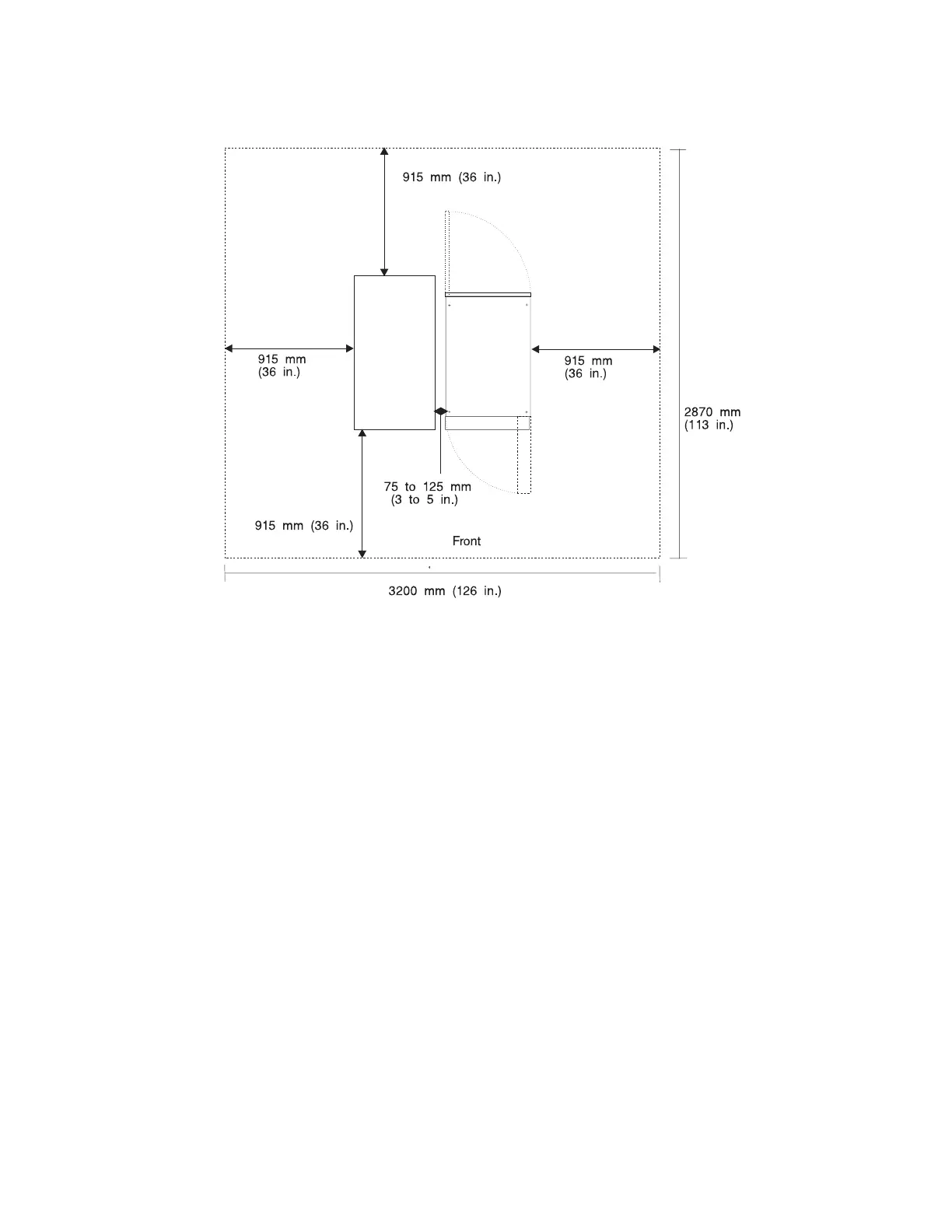

Note: Rack units are large and heavy, and they are not easily moved. Because maintenance activities
require access at both the front and back, extra room must be allowed. The footprint shows the
radius of the swinging doors on the I/O rack. The illustration shows the minimum space required.
Chapter 2. Physical Characteristics of Systems 55
