IBM Storwize V7000 Installation Guide

Each canister has two SAS ports that are numbered 1 on the left 1 and 2 on the
right 2.
Port 1 is the input port, as indicated by the arrow at 1. Port 1 must always be
connected.
Port 2 is the output port, as indicated by the arrow at 2. Port 2 is only connected
if this expansion unit is not the last one in the chain.
Note: The reference to the left and right locations applies to canister 1, which is
the upper canister. The port locations are inverted for canister 2, which is the lower
canister.
svc00668
1
1
2
2

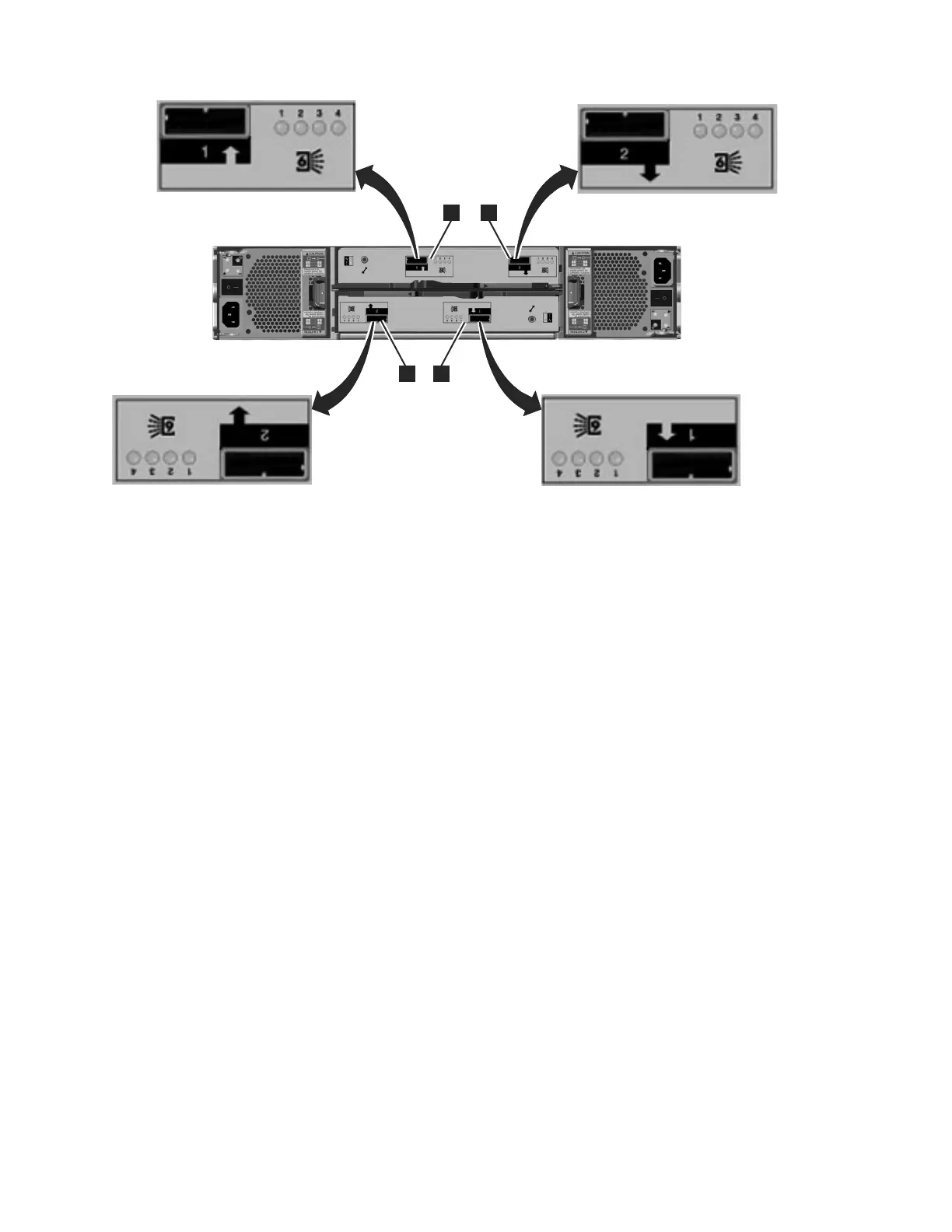

Figure 3. SAS ports and LEDs in rear of expansion enclosure
Chapter 3. Before you begin the installation 7

IBM Storwize V7000 Specifications

General

Model	Storwize V7000
Storage Type	Hybrid Flash Array
RAID Levels	0, 1, 5, 6, 10
Form Factor	2U
Drive Types	SSD, SAS
Host Interface	8 Gbps Fibre Channel, 16 Gbps Fibre Channel, 1 Gbps iSCSI, 10 Gbps iSCSI, 12 Gbps SAS
Maximum Cache	32GB
Operating System Support	IBM AIX, Linux, Windows, VMware
Data Reduction Features	Real-time Compression
Management Software	IBM Spectrum Virtualize
