__ – Two M5 x 15 Hex Phillips screws per rail (two rails)
__ – Two M5 x 15 Hex Phillips screws per chassis
Note: Two parts of the rail kit are attached to each side of the enclosure.
__ v Two power cords
__ v Drive assemblies or blank carriers (installed in the enclosure).
Verify the number of drives and the size of the drives.
Other shipped items:
__ v Environmental Notices flyer
__ v Limited Warranty information
__ v Software CD that contains the environmental notices, the publication PDFs,
and the information center content. One CD is shipped per enclosure.
__ v License Function authorization document
Additional components for expansion enclosure:
__ v One set of SAS cables for each expansion enclosure
Identifying the hardware components
Expansion enclosure components
Figure 2 shows the rear view of an expansion enclosure and identifies the location
of the power supply units and the canisters. The ports and their use are described
later in this section.
v Power supply units are on the left and right of the canisters. Power supply 1
is located on the left. Power supply 2 is located on the right. Power supply 1
is inserted top side up, and power supply 2 is inverted, or top side down.
v Two canisters are housed in the middle of the enclosure. Each canister is known
as an expansion canister. The upper canister, as shown in Figure 2, is canister
3, and the lower canister is canister 4. Canister 3 is top side up, and canister
4 is inverted, or top side down.
Figure 3 on page 7 shows the rear view of an expansion enclosure and identifies
the SAS port locations.
1
2
3
svc00610
4

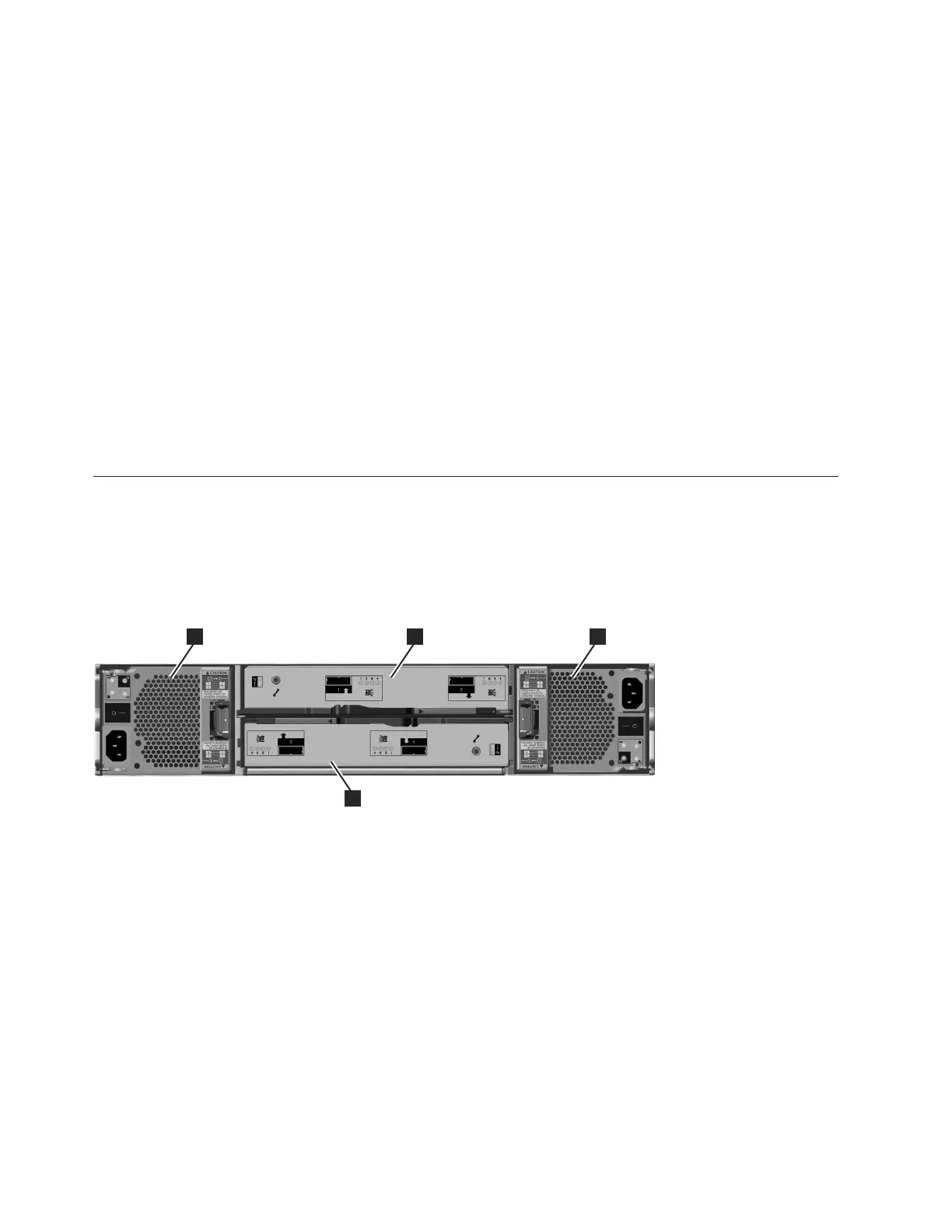

Figure 2. Rear view of a model 2076-212 or a model 2076-224 expansion enclosure
6 IBM Storwize V7000: Expansion Enclosure Installation Guide
