IBM System x3500 M4 - Locations of Key Components and Connectors

IBM System x3500 M4 4
Low-voltage Intel Xeon processors draw less energy to satisfy demands of power and thermally
z
constrained data centers and telecommunication environments.
Low-voltage 1.35 V DDR3 memory RDIMMs consume 15% less energy than 1.5 V DDR3 RDIMMs.
z
The server uses hexagonal ventilation holes, a part of IBM Calibrated Vectored Cooling™ technology.
z
Hexagonal holes can be grouped more densely than round holes, providing more efficient airflow
through the system.
IBM Systems Director Active Energy Manager™ provides advanced data center power notification and
z
management to help achieve lower heat output and reduced cooling needs.
Locations of key components and connectors
Figure 2 shows the front of the server.

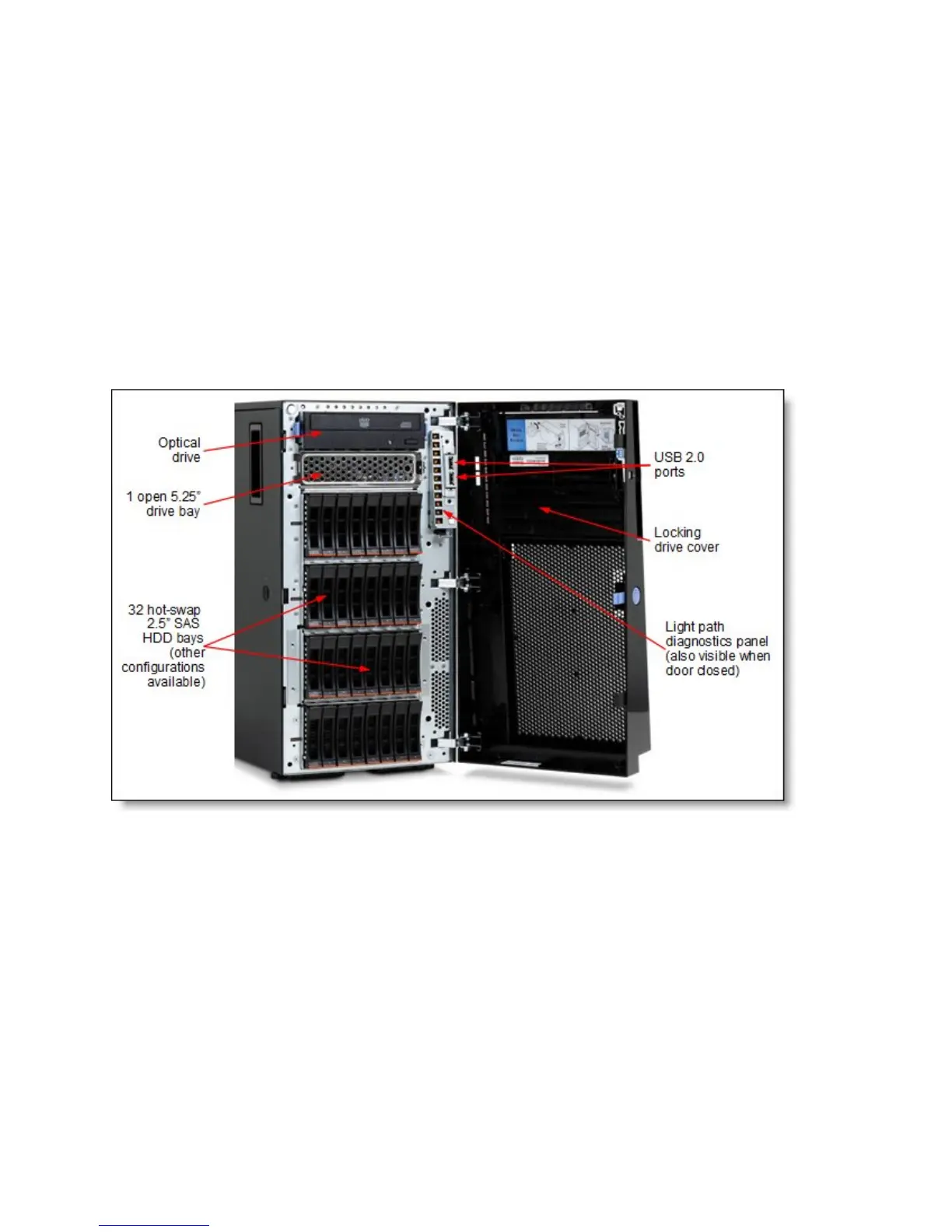

Figure 2. Front view of the IBM System x3500 M4
