2030 Inverter card
For access, remove these FRUs, in order:
v “1010 Battery pack” on page 60
v “1050 Hard-disk drive or RF ID adapter” on page 67
v “1060 Ultrabay 2000 device” on page 69
v “1070 Keyboard” on page 71
v “1080 Keyboard CRU insulator” on page 74
v “1090 Hinge cover and clear sheet icon” on page 75
v “1100 Keyboard bezel and speaker” on page 76
v “2010 LCD assembly” on page 94
v “2020 Front bezel” on page 96
12.1-in. panel

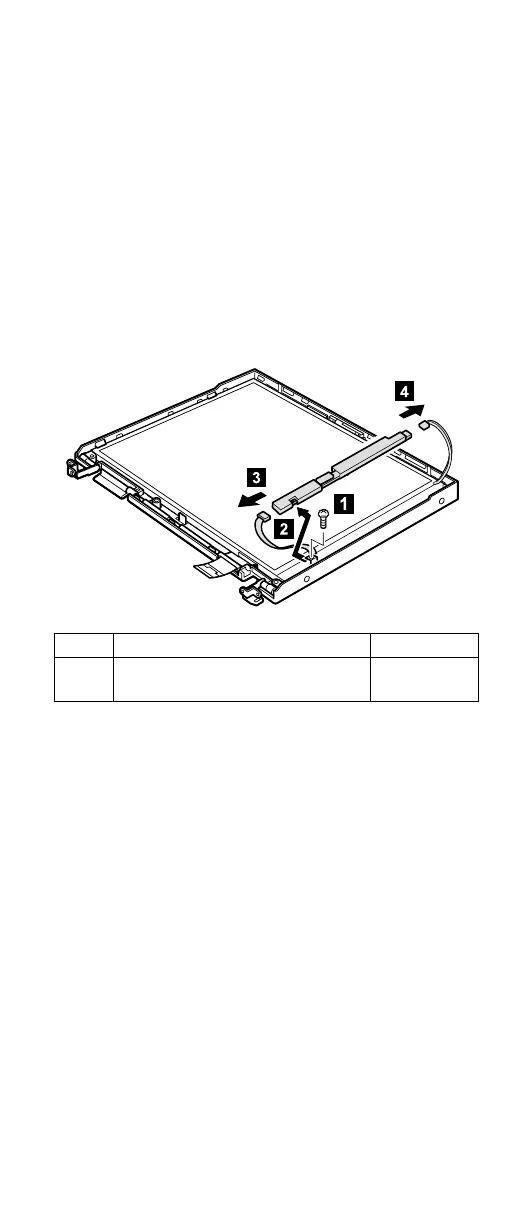

Step Screw (quantity) Torque
1 M2.5 × 4.8 mm, nylon-coated (1) 0.392 Nm
(4 kgfcm)
(continued)
Removing and replacing a FRU
ThinkPad A20m/p, A21m/p and A22m/p 99
