1170 TV card
Note
This section is only for MT2628-Fxx,-Gxx, -Sxx,-Txx,
MT2633-Gxx,-Txx, and MT2629. Other models do
not have the TV card.
For access, remove these FRUs, in order:
v “1010 Battery pack” on page 60
v “1050 Hard-disk drive or RF ID adapter” on page 67
v “1060 Ultrabay 2000 device” on page 69
v “1070 Keyboard” on page 71
v “1080 Keyboard CRU insulator” on page 74
v “1090 Hinge cover and clear sheet icon” on page 75
v “1100 Keyboard bezel and speaker” on page 76
v “1110 Microphone and speaker cable” on page 78
v “1120 Sub card” on page 80
v “1130 PC Card slot assembly” on page 82
v “1140 Fan assembly” on page 83
v “1150 Diskette drive” on page 85
v “1160 Upper shield” on page 87

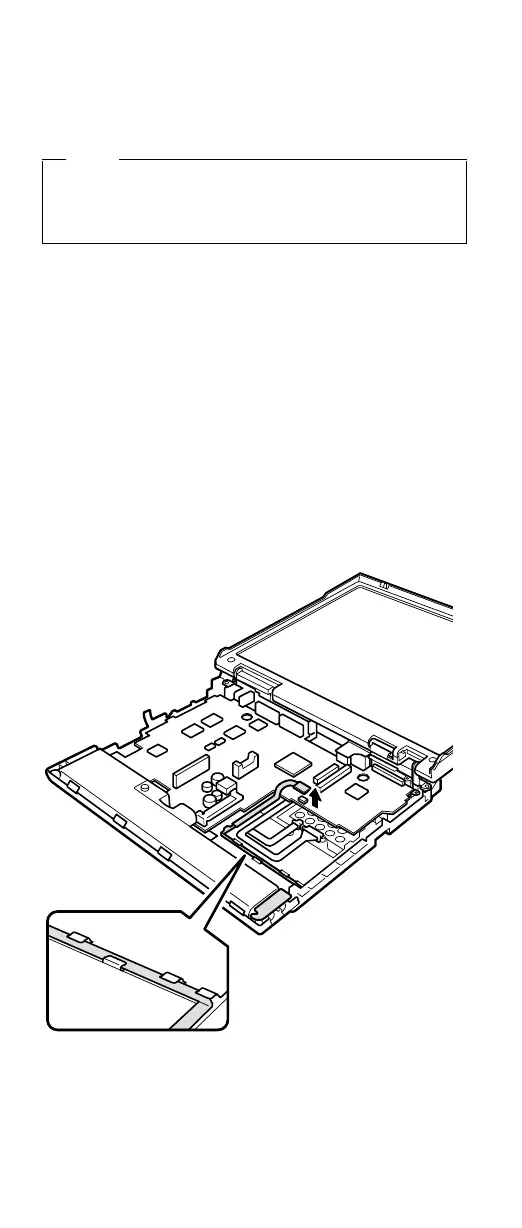

Cable routing: When replacing the modem cable, see the
figure for the cable routing.
Removing and replacing a FRU
88 ThinkPad A20m/p, A21m/p, A22m/p
