IBM x3650 M4 User Manual

IBM System x3650 M4 24
Internal disk storage options
IBM System x3650 M4 server supports 1.8-inch solid-state drives (SSDs), 2.5-inch SSDs and HDDs, and
3.5-inch HDDs. The server supports the following configurations:
16x 2.5-inch hot-swap drive bays, either with or without a SAS expander
1.
8x 2.5-inch hot-swap drive bays
2.
6x 3.5-inch hot-swap hard drive bays
3.
8x 2.5-inch hot-swap drive bays + 16x 1.8-inch SSD drive bays
4.
8x 2.5-inch simple swap drive bays (only available in CTO)
5.
32x 1.8-inch SSD drive bays (only available in CTO)
6.
6x 3.5-inch simple-swap SATA hard drive bays (only available in CTO)
7.

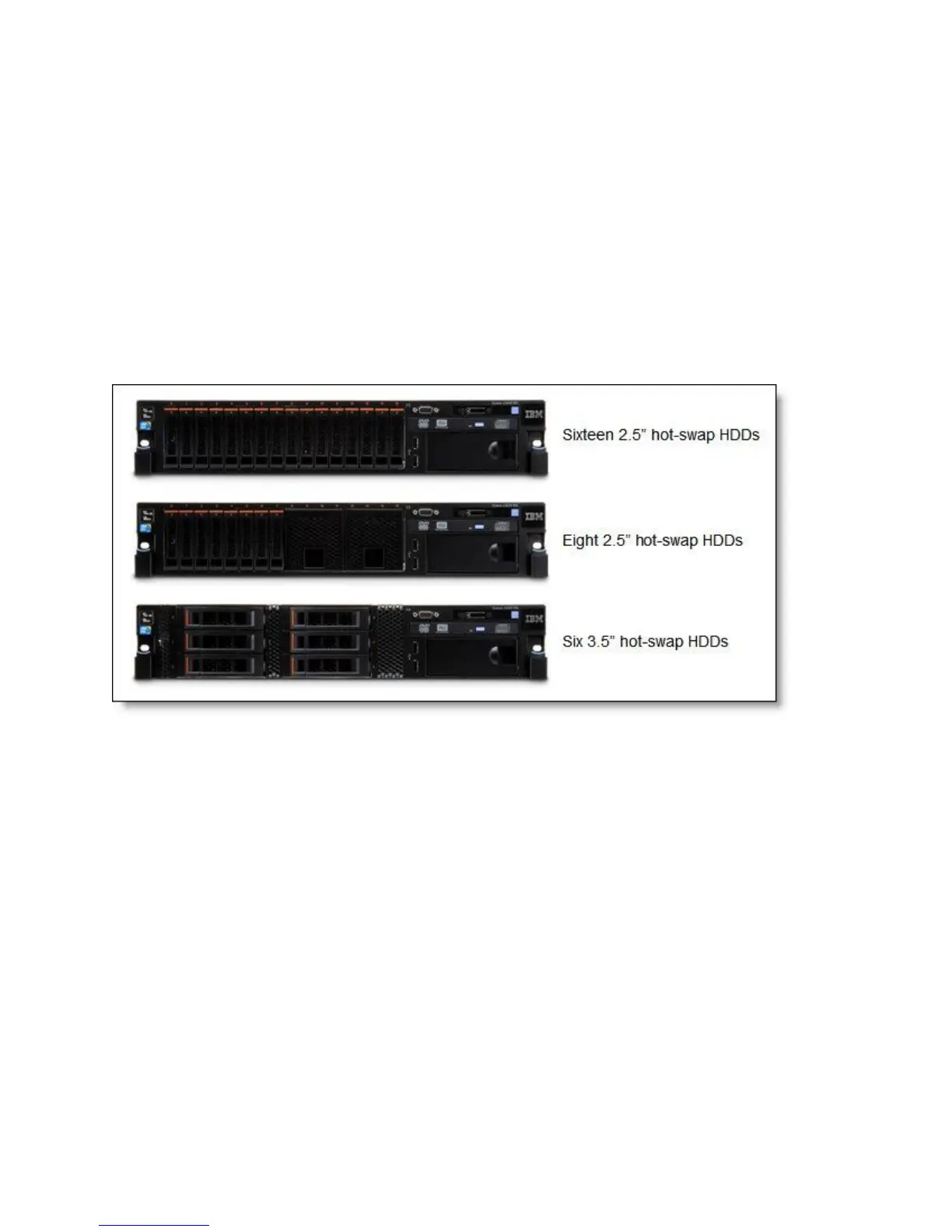

The following figure shows the first three of these configurations.
Figure 5. Internal drive configurations (3 of 6 configurations shown)

IBM x3650 M4 Specifications

General

Processor	Intel Xeon E5-2600 series
Processor Sockets	2
Memory Slots	24 DIMM slots
Form Factor	2U Rack
Memory	Up to 768GB
Network Interface	4 x 1 GbE
RAID Support	RAID 0, 1, 5, 6, 10
Remote Management	Integrated Management Module II (IMM2)
Chipset	Intel C600 series chipset
Expansion Slots	6 PCIe 3.0 slots
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Storage	Up to 32 TB
