IBM X3850 X6 Installation Instructions

55.4 kg
(122 lbs)
32 kg
(70 lbs)
(4X)(4X)
or
107 kg
(230 lbs)
32 kg
(70 lbs)
32 kg
(70 lbs)
(4X)
(3X)
(5X)
(5X)
(3X)
(4X)
15 kg
(33 lbs)

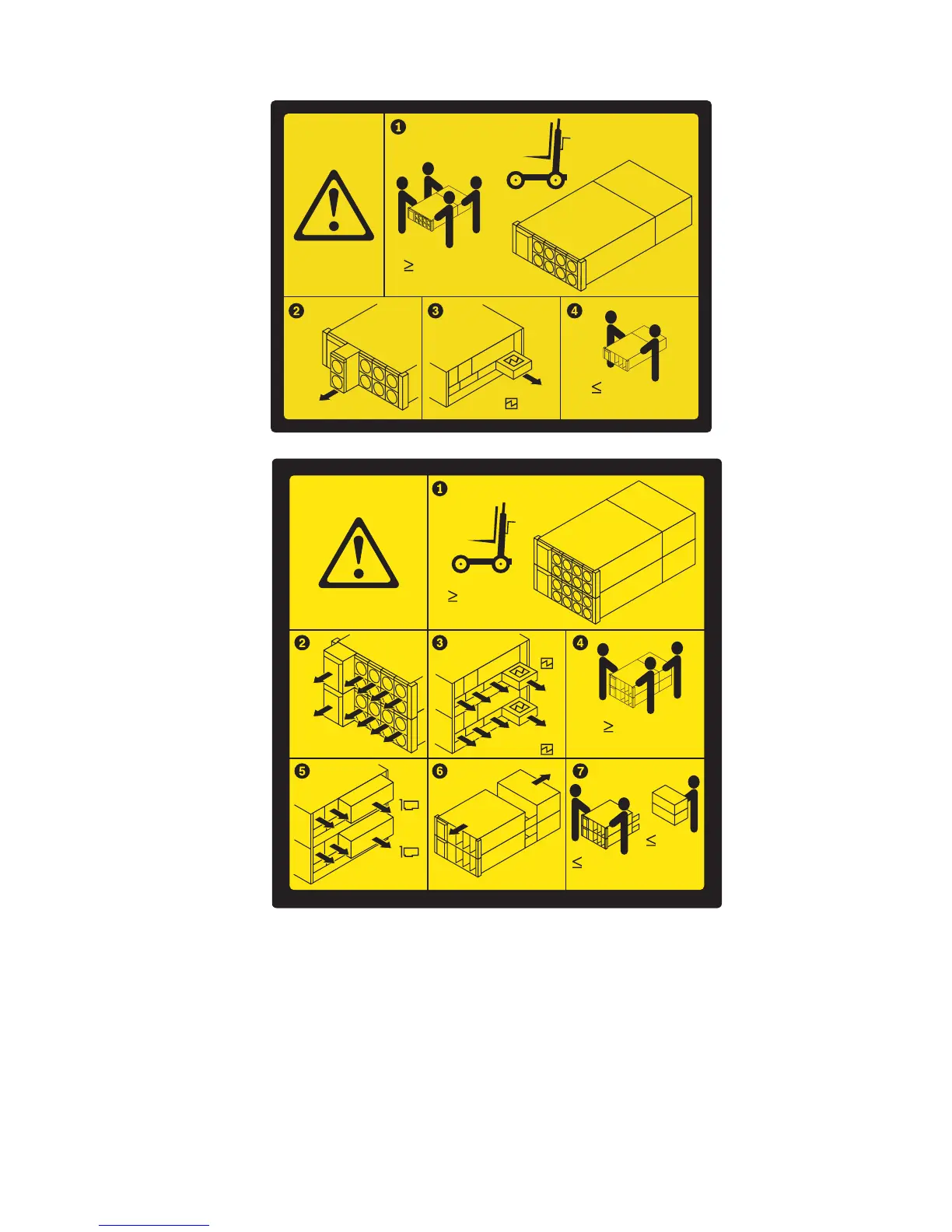

1. Remove the server components (for example, the compute books and power
supplies from the front and rear of the server). This reduces the weight of the
server and allow the server to be easily installed in the rack. See the server
documentation for instructions on removing the individual components from
the server.
2. Press the blue buttons on each side of the server to release the server handles
(as shown in the illustration).
Note: The server handles are released the same way for both the 4U and the
8U.
Chapter 3. Rack installation 11

IBM X3850 X6 Specifications

General

Chipset	Intel C602J
Network Controller	Integrated quad-port Gigabit Ethernet
Processor	Up to four Intel Xeon E7-4800 v2 series processors or Intel Xeon E7-8800 v2 series processors
Memory	Up to 6 TB of DDR3 ECC Registered DIMMs (RDIMMs) or Load-Reduced DIMMs (LRDIMMs)
Form Factor	4U rack server
Storage	Up to 24x 2.5" hot-swap SAS/SATA HDDs or SSDs
Expansion Slots	Up to 11 PCIe 3.0 slots
Power Supply	Up to four 1400W or 900W hot-swap power supplies
Memory Type	DDR3 RDIMM/LRDIMM
Storage Controller	ServeRAID M5210 SAS/SATA controller
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
