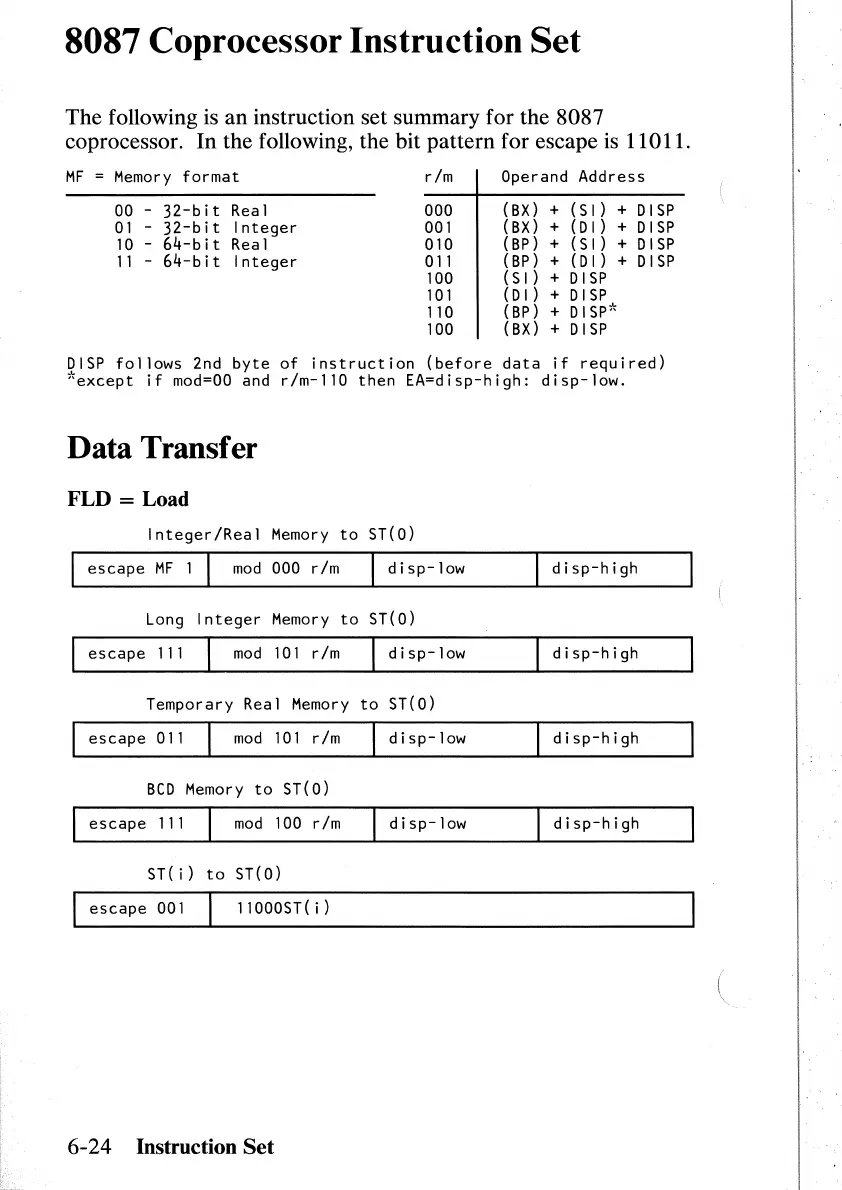

8087 Coprocessor Instruction Set
The following is an instruction set summary for the 8087
coprocessor.
In the following, the bit pattern for escape is 11011.
MF =
Memory format
rIm
Operand
Address
00 -
32-bit
Real
000
(BX)
+
(S I)
+
DISP
01
- 32-bit Integer 001
(BX)
+ (D I) +
DISP
10 -
64-bit
Real 010
(BP)
+ (S I) +
DISP
11
- 64-bit
Integer all
(BP)
+
(D I) +
DISP
100
(S I)
+
DISP
101
(D I) +
DISP
110
(BP)
+
DISP*
100
(BX)
+
DISP
DISP follows 2nd byte of instruction (before data if required)
*except if mod=OO and r/m-110 then EA=disp-high: disp-low.
Data Transfer
FLD = Load
Integer/Real Memory to ST(O)
escape MF 1 mod 000 rIm
disp-low
Long
Integer
Memory to
ST(O)
escape 111 mod 101
rIm
disp-low
Temporary Real Memory to
ST(O)
escape all
mod 101
rIm
disp-low
BCD Memory to ST(O)
disp-high
disp-high
disp-high
escape 111
mod 100 rIm disp-low disp-high
ST(i) to ST(O)
escape 001
11000ST(i)
6-24 Instruction Set
