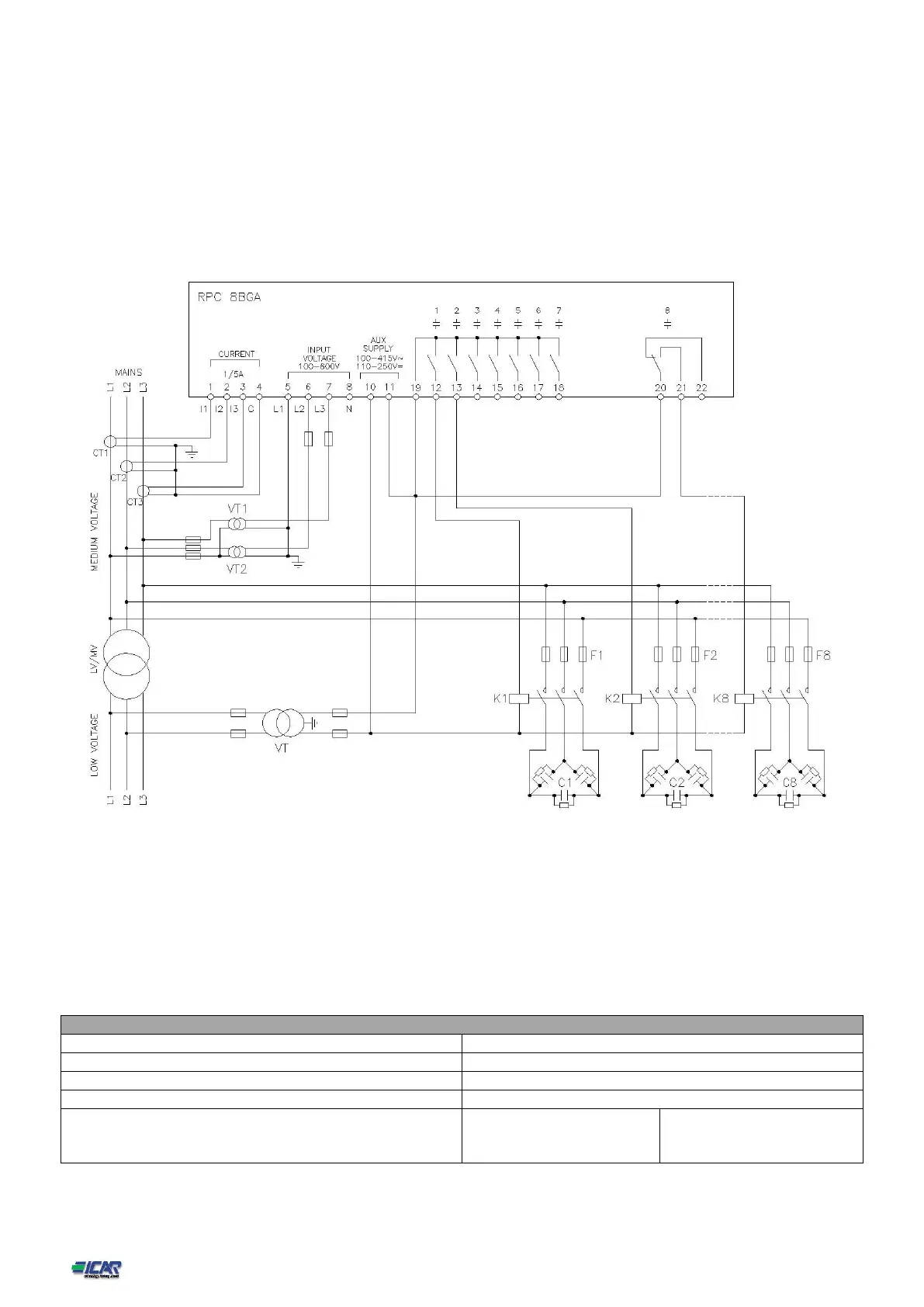

Full MV wiring configuration
Configuration with MV measurement and correction
Voltage measure
3 ph-to-ph voltage reading L1-L2, L2-L3, L3-L1 on MV side
Current measure
L1-L2-L3 phase
Phase angle offset
90°
Capacitor overload current measure
1 reading on L1-L3, LV side
Parameter setting
P02.03 = Three-phase
P02.04 = L1-L2-L3
P02.06 = L1-L2-L3
P02.22 = MV
P02.23 = ON
