s. 12 / 40
Page Title. If P01.09 is set, then the
plant description will be shown here.
Step
status
Black =
On
Gray =
Off
Weekley
true
power
factor
Fan status
Black =
On
Gray =
Off
kvar
needed to
reach
setpoint
Voltage and current
total harmonic
distortion
8. Display page navigation
Keys ▲and ▼scroll through the measurements pages one by one. The title bar shows the current page.
Some measurements may not be shown depending on the system programming and connections.
Sub-pages, which can be opened with key ►, are also available on some pages (displaying voltages and
currents in the form of bar graphs, for example).
The user can specify which page and which sub-page the display should return to automatically when no
keys have been pressed for a certain time.
The system can also be programmed so the display remains were it was last.
You can set this function in menu M01 – Utility.

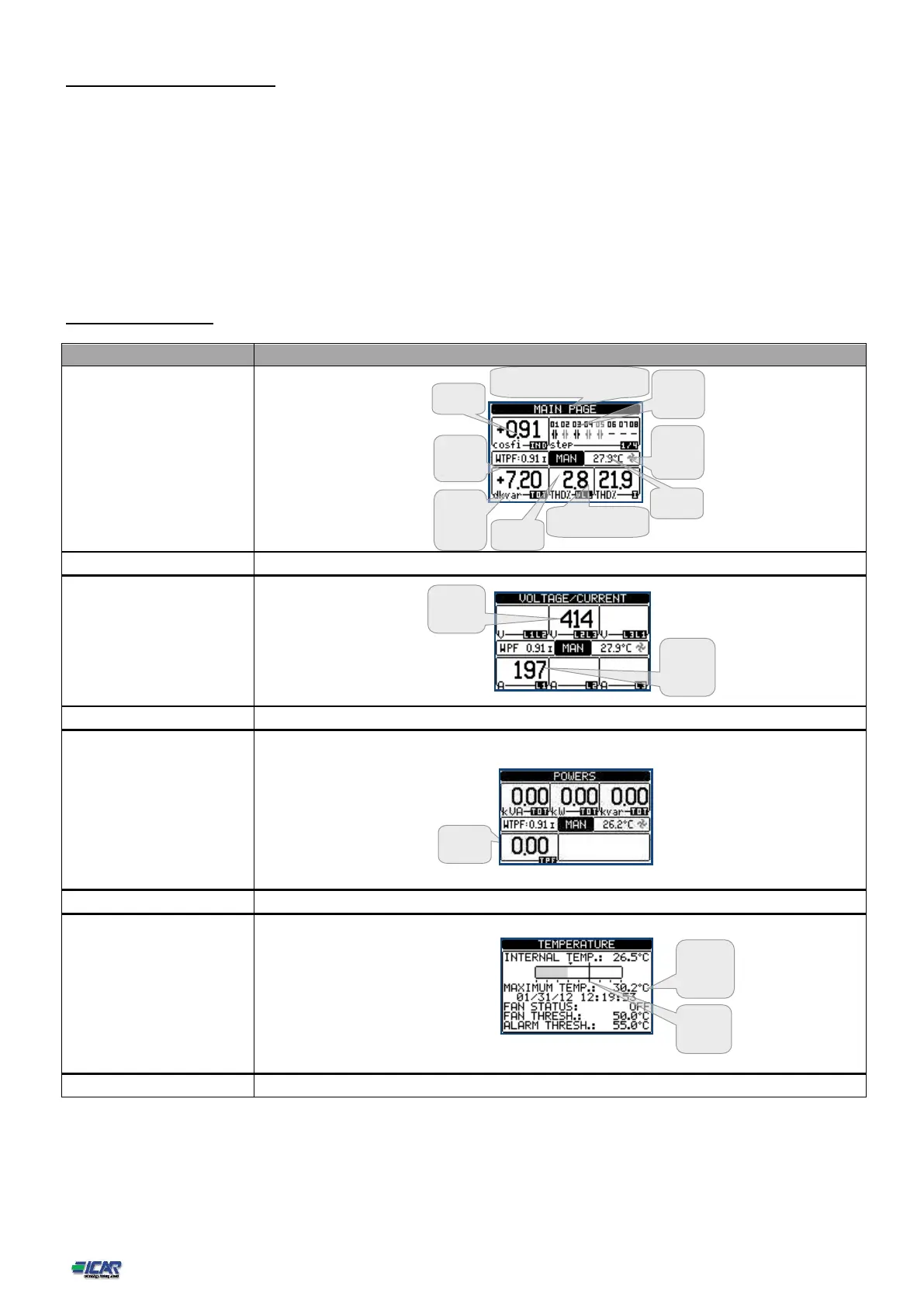

Table of display pages
Max
temperature
peak with
date
