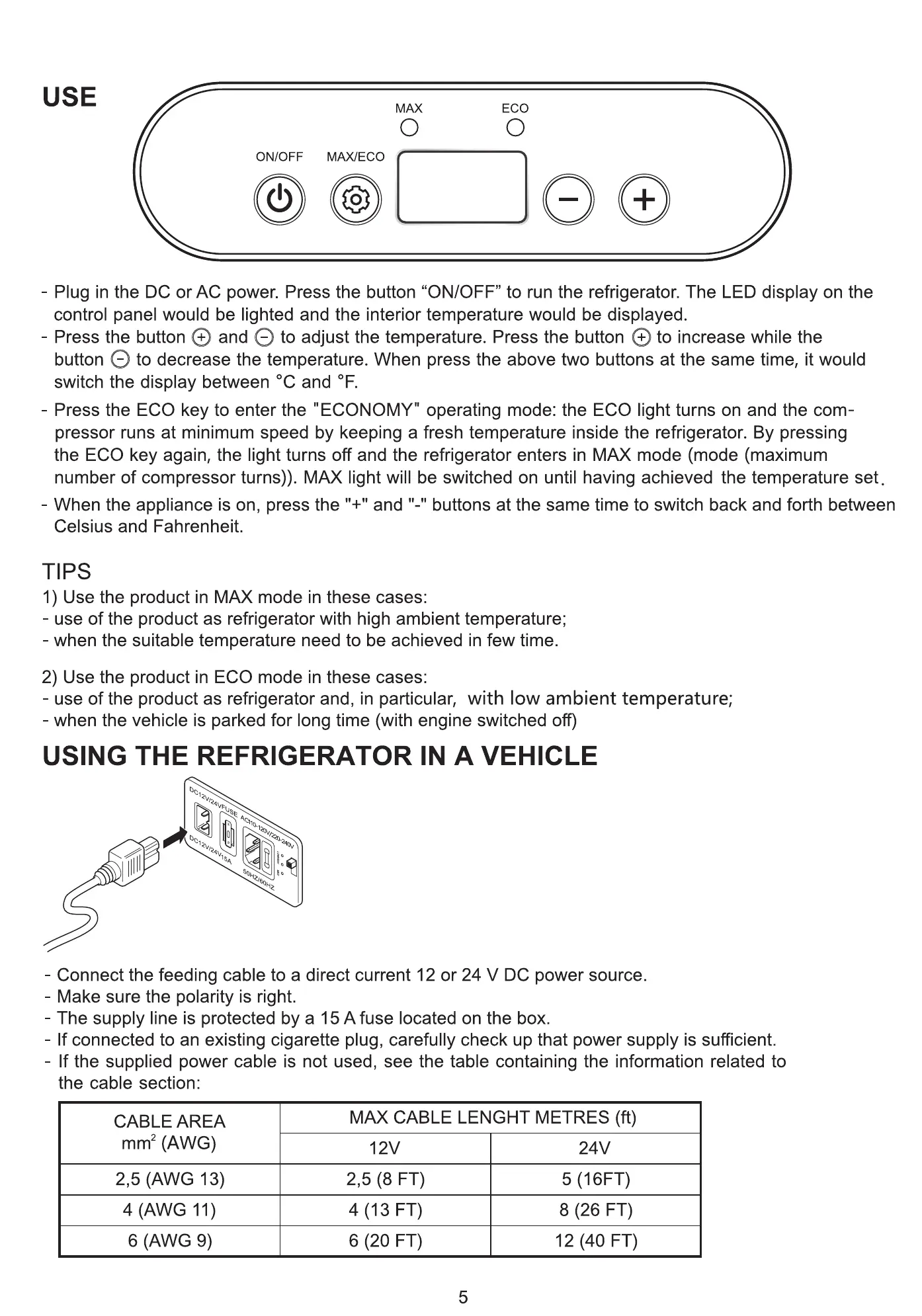

USE
OWOFF
MAX
o
MAXIE-CO
o
ECO
o
Plug in the DC or AC power. Press the button "ON/OFF" to run the refrigerator. The LED display on the
control panel would be lighted and the interior temperature would be displayed.
- Press the button O and O to adjust the temperature. Press the button O to increase while the
button O to decrease the temperature. When press the above two buttons at the same time, it would
switch the display between oc and OF.
- Press the ECO key to enter the "ECONOMY" operating mode: the ECO light turns on and the com-
pressor runs at minimum speed by keeping a fresh temperature inside the refrigerator. By pressing
the ECO key again, the light turns off and the refrigerator enters in MAX mode (mode (maximum
number of compressor turns)). MAX light will be switched on until having achieved the temperature set.
- When the appliance is on, press the "+" and
- buttons at the same time to switch back and forth between
Celsius and Fahrenheit.
TIPS
1) Use the product in MAX mode in these cases:
- use of the product as refrigerator with high ambient temperature;
- when the suitable temperature need to be achieved in few time.
2) Use the product in ECO mode in these cases:
- use of the product as refrigerator and, in particular, with low ambient temperature;
- when the vehicle is parked for long time (with engine switched off)
USING THE REFRIGERATOR IN A VEHICLE
- Connect the feeding cable to a direct current 12 or 24 V DC power source.
Make sure the polarity is right.
The supply line is protected by a 15 A fuse located on the box.
- If connected to an existing cigarette plug, carefully check up that power supply is sufficient.
- If the supplied power cable is not used, see the table containing the information related to
the cable section:
CABLE AREA
mm2(AWG)
(AWG 13)
4 (AWG II)
6 (AWG 9)
MAX CABLE LENGHT METRES (ft)
12V
(8 FT)
4 (13 FT)
6 (20 FT)
5
24V
5 (16FT)
8 (26 FT)
12 (40 FT)
