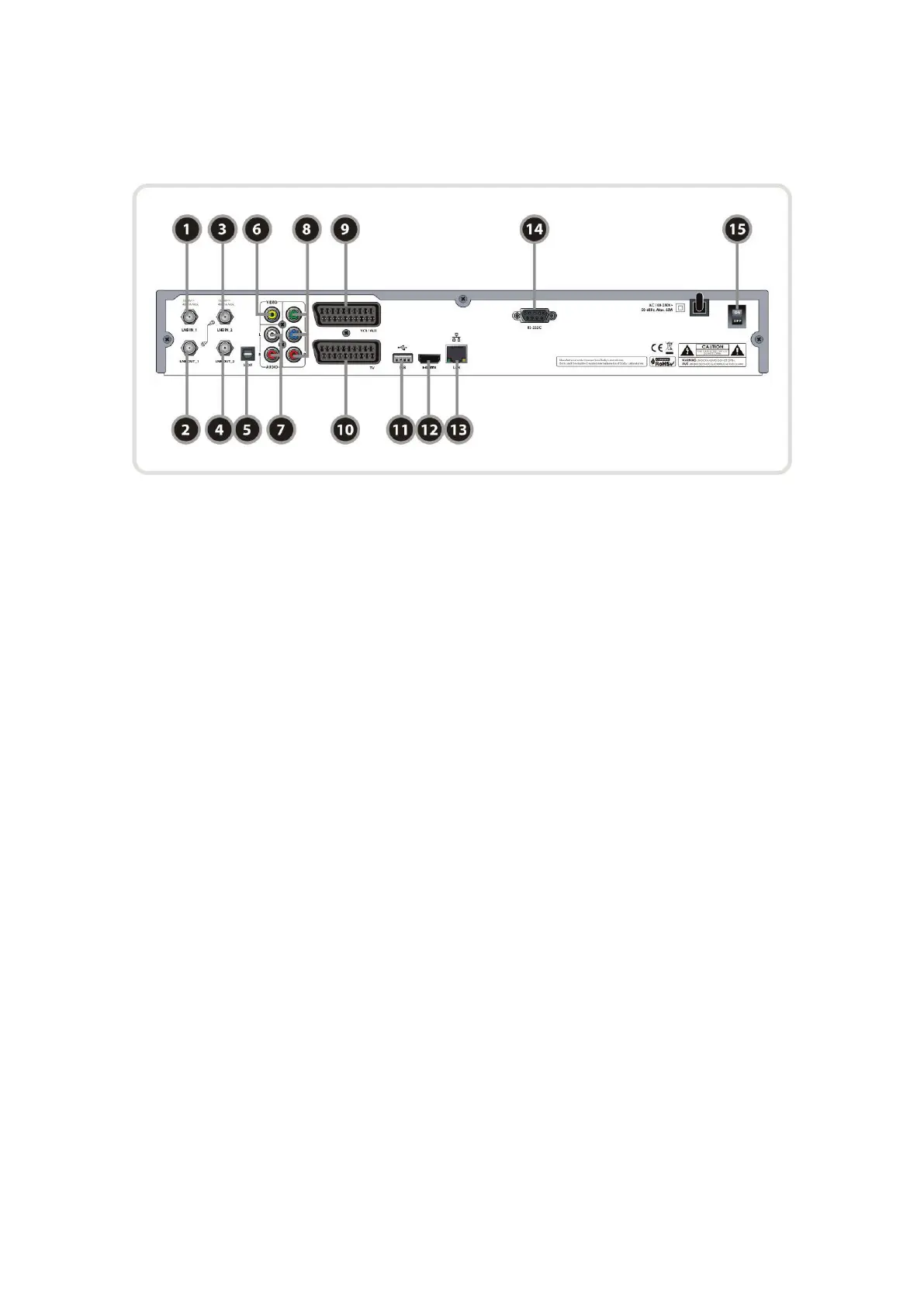

3. Rear Panel Configuration
1. LNB IN_1
Satellite broadcasting signal input socket for the first tuner. Connects a satellite antenna LNB cable.
2. LNB OUT_1
Satellite broadcasting signal output socket through the first tuner. Connects to a second tuner for
loop-through.
3. LNB IN_2 :
Satellite broadcasting signal input socket for the second tuner. Connects a satellite antenna cable or
from the first tuner LNB OUT_1 connector.
4. LNB OUT_2 :
Satellite broadcasting signal output socket through the second tuner. Connects to another STB for
loop-through.
5. SPDIF : Connects to the audio system using a S/PDIF cable. (digital audio)
6. VIDEO : Connects to the TV or VCR using a RCA cable. (Composite video output / Yellow)
7. AUDIO L/R : Connects to the TV or VCR using a RCA cable. (Stereo audio output / White, Red)
8. Component : Connects to the TV or VCR using a component cable. ( YPbPr)
9. VCR SCART : Connects to the VCR or DVD using a VCR SCART cable.
10. TV SCART : Connects to the TV input using a TV SCART cable.
11. USB : Use it when connecting to external USB storage device.
12. HDMI : Connects to the TV by using a HDMI cable for the best quality picture and audio.
13. Ethernet : Local area network port for direct computer connection.
14. RS-232C : Serial port for firmware update and data transfer.
15. A/C Switch : Power switch
