SERVICE MANUAL FD/HD
28

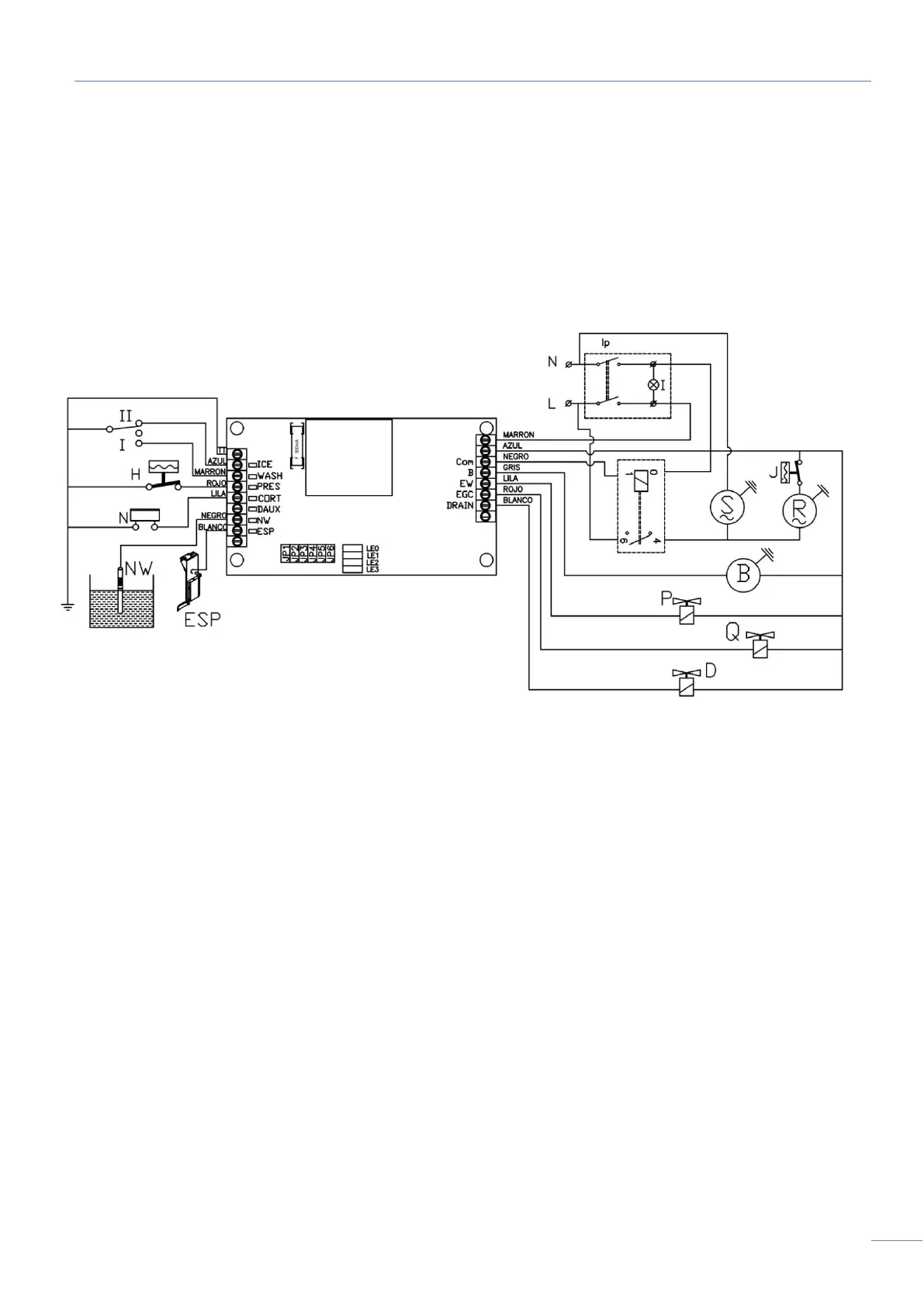

8. WIRING DIAGRAMS
8.1. FD/HD single-phase
COMPONENTS
H Safety pressostat
N Curtain sensor
I Ice - Wash (3 positions)
S Compressor.
R Fan motor
J Condensation pressostat (water condenser)
B Pump
P Water valve
Q Hot gas valve.
D Drain valve
NW Water level sensor
ESP Thickness detector
Ip ON/OFF switch
