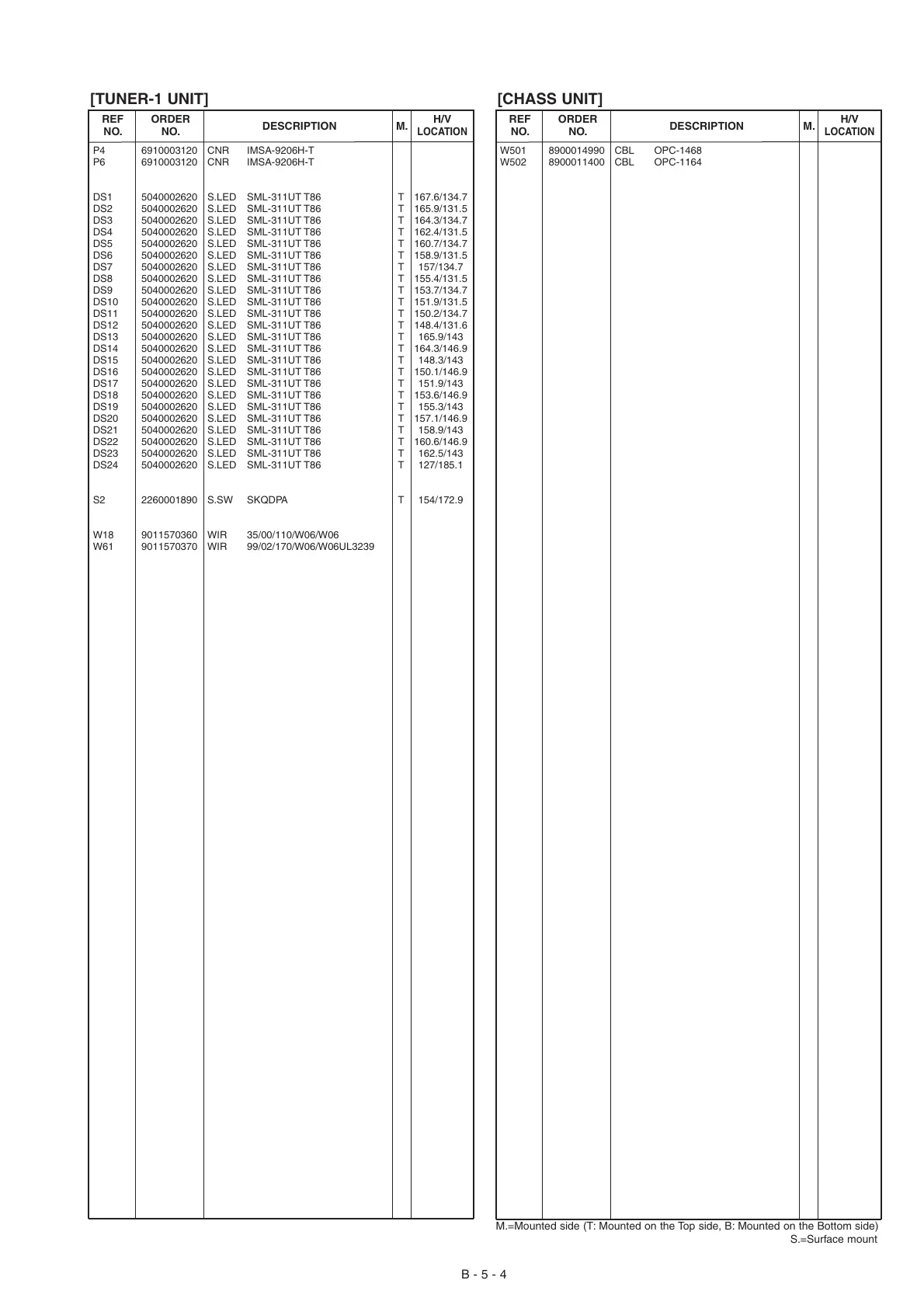

Icom AT-141 Service Manual

B - 5 - 4
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
S.=Surface mount
REF ORDER
DESCRIPTION M.
H/V
NO. NO.
LOCATION
[TUNER-1 UNIT]
P4 6910003120 CNR IMSA-9206H-T
P6 6910003120 CNR IMSA-9206H-T
DS1 5040002620 S.LED SML-311UT T86 T 167.6/134.7
DS2 5040002620 S.LED SML-311UT T86 T 165.9/131.5
DS3 5040002620 S.LED SML-311UT T86 T 164.3/134.7
DS4 5040002620 S.LED SML-311UT T86 T 162.4/131.5
DS5 5040002620 S.LED SML-311UT T86 T 160.7/134.7
DS6 5040002620 S.LED SML-311UT T86 T 158.9/131.5
DS7 5040002620 S.LED SML-311UT T86 T 157/134.7
DS8 5040002620 S.LED SML-311UT T86 T 155.4/131.5
DS9 5040002620 S.LED SML-311UT T86 T 153.7/134.7
DS10 5040002620 S.LED SML-311UT T86 T 151.9/131.5
DS11 5040002620 S.LED SML-311UT T86 T 150.2/134.7
DS12 5040002620 S.LED SML-311UT T86 T 148.4/131.6
DS13 5040002620 S.LED SML-311UT T86 T 165.9/143
DS14 5040002620 S.LED SML-311UT T86 T 164.3/146.9
DS15 5040002620 S.LED SML-311UT T86 T 148.3/143
DS16 5040002620 S.LED SML-311UT T86 T 150.1/146.9
DS17 5040002620 S.LED SML-311UT T86 T 151.9/143
DS18 5040002620 S.LED SML-311UT T86 T 153.6/146.9
DS19 5040002620 S.LED SML-311UT T86 T 155.3/143
DS20 5040002620 S.LED SML-311UT T86 T 157.1/146.9
DS21 5040002620 S.LED SML-311UT T86 T 158.9/143
DS22 5040002620 S.LED SML-311UT T86 T 160.6/146.9
DS23 5040002620 S.LED SML-311UT T86 T 162.5/143
DS24 5040002620 S.LED SML-311UT T86 T 127/185.1
S2 2260001890 S.SW SKQDPA T 154/172.9
W18 9011570360 WIR 35/00/110/W06/W06
W61 9011570370 WIR 99/02/170/W06/W06UL3239
REF ORDER
DESCRIPTION M.
H/V
NO. NO.
LOCATION
[CHASS UNIT]
W501 8900014990 CBL OPC-1468
W502 8900011400 CBL OPC-1164
