B - 4 - 1

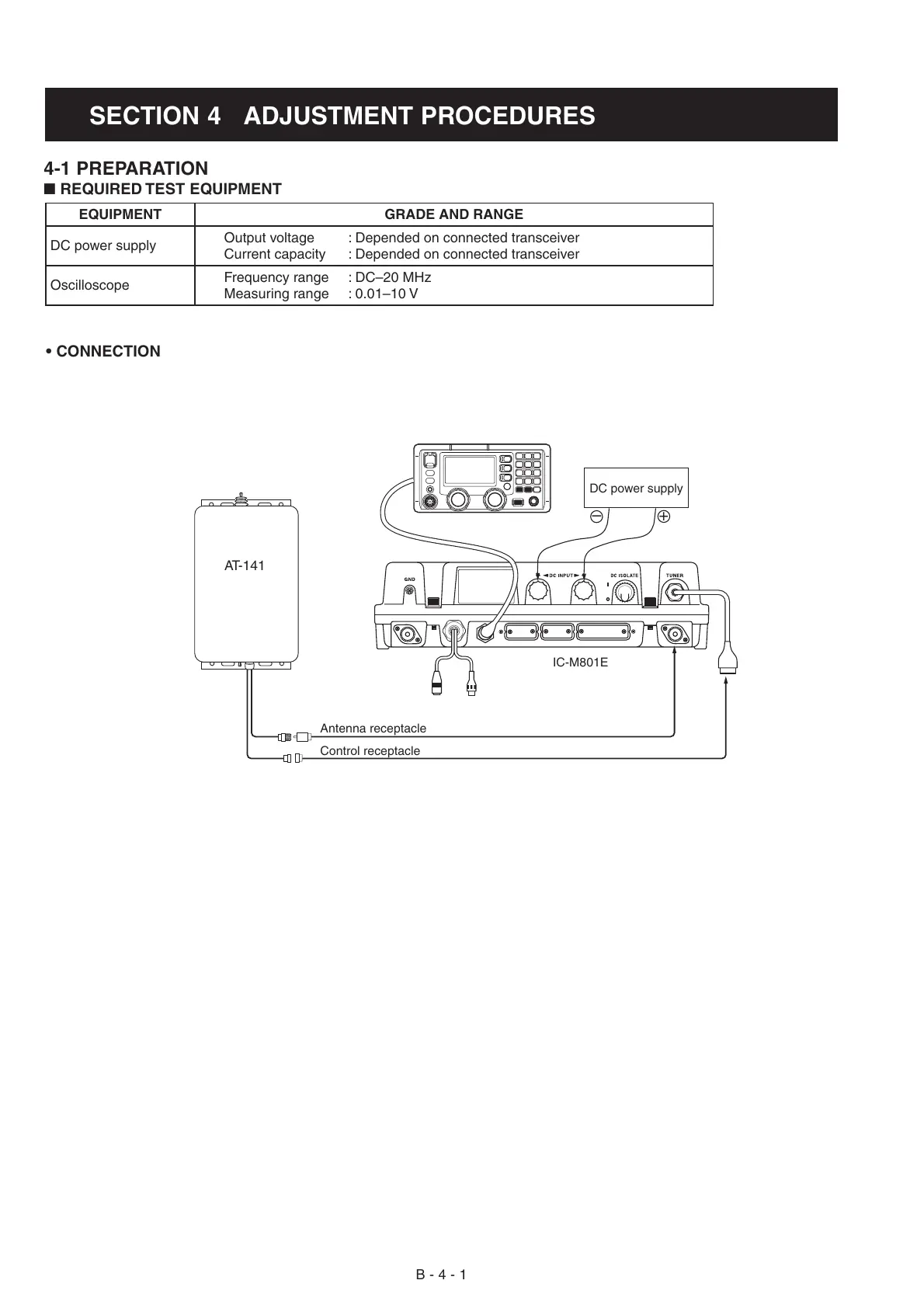

SECTION 4 ADJUSTMENT PROCEDURES
DC power supply
IC-M801E
Antenna receptacle
Control receptacle
AT-141
+
• CONNECTION
4-1 PREPARATION
REQUIRED TEST EQUIPMENT
EQUIPMENT GRADE AND RANGE
DC power supply
Output voltage : Depended on connected transceiver
Current capacity : Depended on connected transceiver
Oscilloscope
Frequency range : DC–20 MHz
Measuring range : 0.01–10 V
