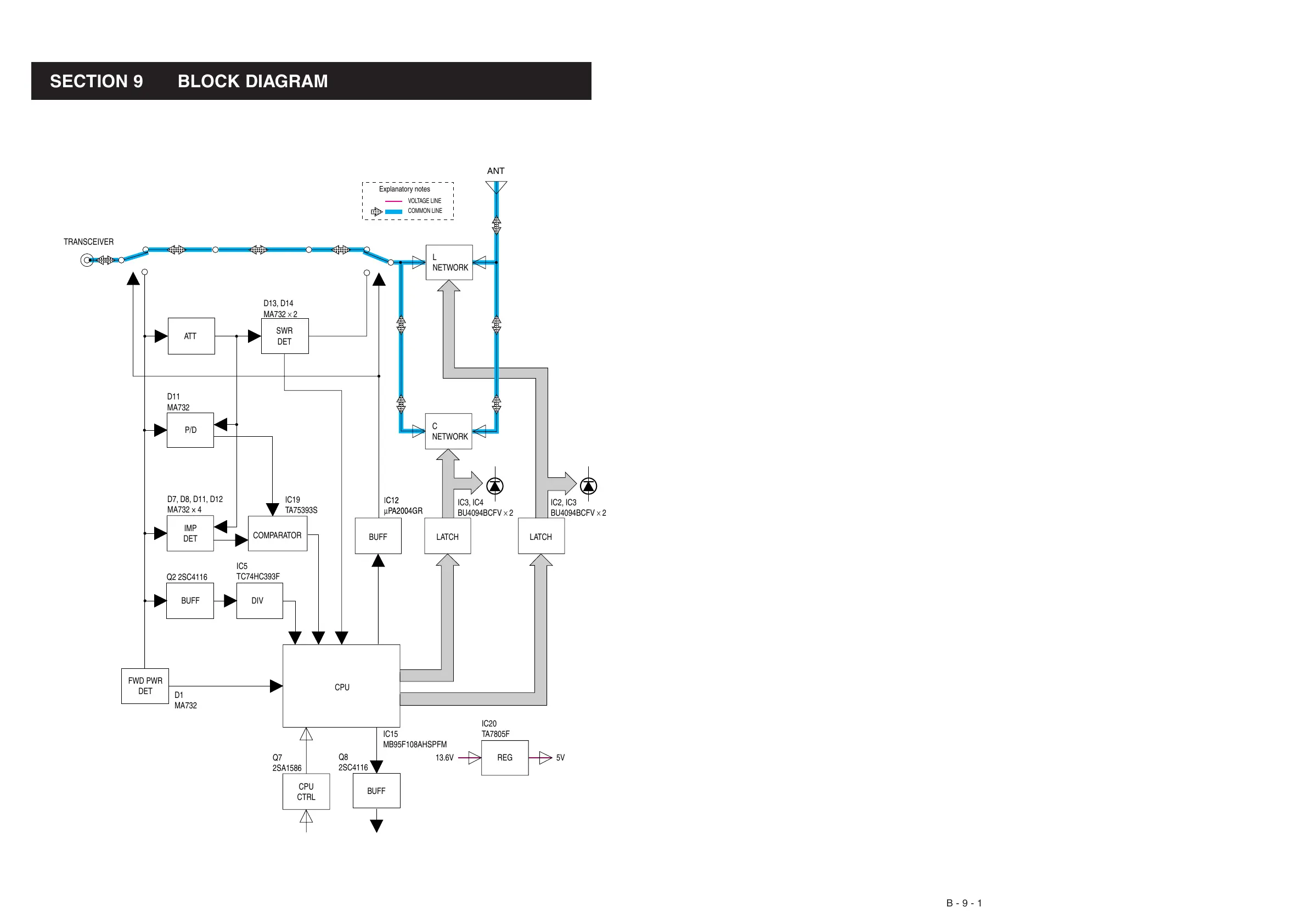

Icom AT-141 - Section 9 Block Diagram

VOLTAGE LINE
Explanatory notes
COMMON LINE
ANT
L
NETWORK
D13, D14
MA732 × 2
IMP
DET
COMPARATOR
IC19
TA75393S
CPU
Q7
2SA1586
CPU
CTRL
IC15
MB95F108AHSPFM
BUFF LATCH LATCH
IC2, IC3
BU4094BCFV × 2
IC3, IC4
BU4094BCFV × 2
C
NETWORK
13.6V REG
IC20
TA7805F
5V
Q8
2SC4116
BUFF
D1
MA732
FWD PWR
DET
D11
MA732
D7, D8, D11, D12
MA732 × 4
TRANSCEIVER
P/D
Q2 2SC4116
IC5
TC74HC393F
BUFF DIV
SWR
DET
ATT
SECTION 9 BLOCK DIAGRAM
B - 9 - 1
