Icom IC-2000 Service Manual

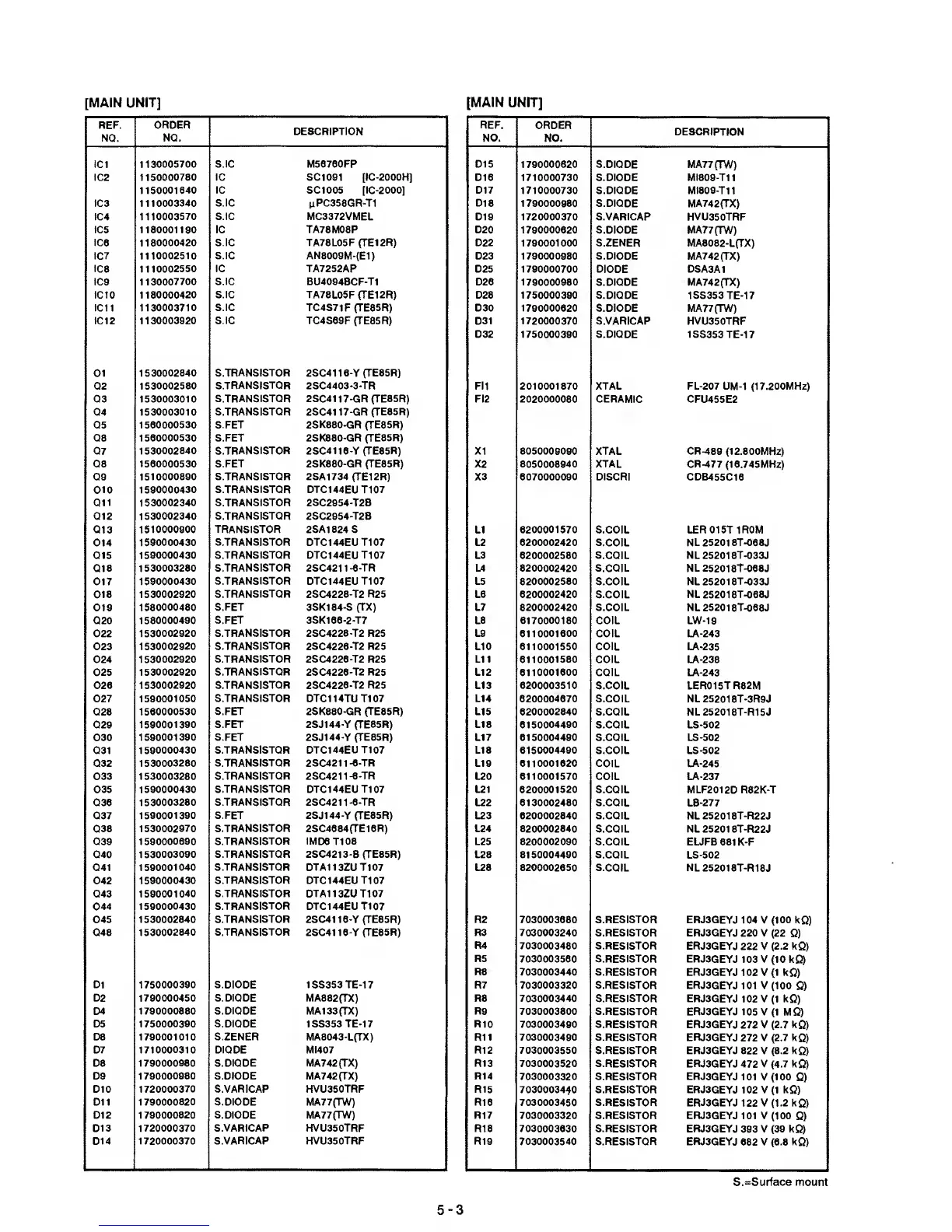

[MAIN UNIT]
REF.
NO.
ORDER
NO.
DESCRIPTION
IC1
1130005700 S.IC M56760FP
IC2
1150000760 1C SC1091 [IC-2000H]
1150001640 1C SC
1005
[IC-2000]
IC3
1110003340 S.IC
UPC358GR-T1
IC4
1110003570 S.IC MC3372VMEL
ICS 1180001190 1C TA78M08P
ice 1180000420 S.IC TA78L05F (TE12R)
IC7
1110002510 S.IC AN8009M-(E1)
IC8 1110002550 1C TA7252AP
ICS
1130007700 S.IC BU4094BCF-T1
IC10
1180000420 S.IC TA78L05F
(TE12R)
IC11
1130003710 S.IC TC4S71F(TE85R)
IC12
1130003920 S.IC TC4S69F
(TE85R)
Q1
1530002840 S.TRANSISTOR
2SC4116-Y
(TE85R)
Q2
1530002560
S.TRANSISTOR
2SC4403-3-TR
Q3 1530003010
S.TRANSISTOR 2SC4117-GR(TE85R)
Q4
1530003010 S.TRANSISTOR
2SC4117-GR
(TE85R)
Q5
1560000530
S.FET
2SK880-GR {TE85R)
Q6
1560000530
S.FET 2SK880-GR
(TE85R)
Q7
1530002840 S.TRANSISTOR 2SC4116-Y (TE85R)
Q8 1560000530 S.FET 2SK880-GR
(TE85R)
Q9
1510000690 S.TRANSISTOR 2SA1734 (TE12R)
Q10 1590000430 S.TRANSISTOR DTC144EUT107
Q11 1530002340 S.TRANSISTOR 2SC2954-T2B
Q12
1530002340 S.TRANSISTOR
2SC2954-T2B
Q13
1510000900 TRANSISTOR 2SA1824
S
Q14
1590000430 S.TRANSISTOR DTC144EU
T107
Q15
1590000430 S.TRANSISTOR DTC144EUT107
Q16
1530003280 S.TRANSISTOR 2SC4211-e-TR
Q17
1590000430 S.TRANSISTOR
DTC144EU T107
Q18
1530002920 S.TRANSISTOR 2SC4226-T2 R25
Q19 1580000480 S.FET 3SK184-S
(TX)
Q20
1580000490 S.FET 3SK166-2-T7
Q22
1530002920
S.TRANSISTOR
2SC4226-T2 R25
Q23
1530002920 S.TRANSISTOR 2SC4226-T2 R25
Q24
1530002920
S.TRANSISTOR
2SC4226-T2 R25
Q25
1530002920 S.TRANSISTOR 2SC4226-T2 R25
Q26
1530002920 S.TRANSISTOR 2SC4226-T2 R25
Q27
1590001050
S.TRANSISTOR
DTC114TU T107
Q28
1560000530 S.FET 2SK880-GR {TE85R)
Q29
1590001390 S.FET 2SJ144-Y (TE85R)
Q30
1590001390 S.FET 2SJ144-Y {TE85R)
Q31
1590000430
S.TRANSISTOR DTC144EU T107
Q32
1530003280 S.TRANSISTOR 2SC4211.6-TR
Q33 1530003280
S.TRANSISTOR 2SC4211-e-TR
Q35 1590000430
S.TRANSISTOR
DTC144EU
T107
Q36
1530003280 S.TRANSISTOR 2SC4211-8-TR
Q37
1590001390 S.FET 2SJ144-Y (TE85R)
Q38
1530002970 S.TRANSISTOR 2SC4884(TE16R)
Q39
1590000690 S.TRANSISTOR IMD6T108
Q40
1530003090 S.TRANSISTOR 2SC4213-B (TE85R)
Q41
1590001040 S.TRANSISTOR DTA113ZUT107
Q42
1590000430 S.TRANSISTOR DTC144EU T107
Q43
1590001040 S.TRANSISTOR DTA113ZU
T107
Q44
1590000430 S.TRANSISTOR
DTC144EU T107
Q45 1530002840
S.TRANSISTOR
2SC41ie-Y
(TE85R)
Q46
1530002840 S.TRANSISTOR
2SC41ie-Y
(TE85R)
D1 1750000390 S.DIODE
1SS353TE-17
D2 1790000450 S.DIODE MA862(TX)
D4
1790000860 S.DIODE MA133(TX)
D5
1750000390
S.DIODE 1SS353 TE-17
D6 1790001010 S.ZENER MA8043-L(TX)
D7
1710000310
DIODE MI407
D8
1790000980
S.DIODE MA742(TX)
D9
1790000980
S.DIODE
MA742fTX)
DIO
1720000370
S.VARICAP HVU350TRF
Dll
1790000620
S.DIODE MA77(TW)
D12
1790000620 S.DIODE
MA77fTW)
D13
1720000370 S.VARICAP HVU350TRF
D14
1720000370 S.VARICAP HVU350TRF
[MAIN
UNIT]
REF.
NO.
ORDER
NO.
DESCRIPTION
D15
1790000820 S.DIODE MA77(TW)
D18 1710000730 S.DIODE MI809-T11
D17
1710000730 S.DIODE MI809-T11
D18
1790000980 S.DIODE MA742(TX)
D19 1720000370 S.VARICAP HVU350TRF
D20
1790000620 S.DIODE MA77(TW)
D22
1790001000 S.ZENER MA8062-L(TX)
D23 1790000980 S.DIODE MA742(TX)
025 1790000700 DIODE DSA3A1
D26 1790000980
S.DIODE
MA742frX)
D28 1750000390
S.DIODE 1SS353
TE-17
D30 1790000620
S.DIODE
MA77fTW)
031 1720000370
S.VARICAP HVU350TRF
D32 1750000390 S.DIODE 1SS353
TE-17
FI1 2010001670 XTAL FL-207 UM-1 (17.200MHz)
FI2 2020000080 CERAMIC CFU455E2
XI
6050009090 XTAL CR-489
(12.800MHz)
X2 8050008940 XTAL CR-477
(16.745MHz)
X3
6070000090
DISCRI CDB455C16
U 6200001570 S.COIL LER015T1R0M
L2 8200002420
S.COIL NL252018T-068J
L3
6200002580 S.COIL NL 25201 8T-033J
L4 8200002420
S.COIL
NL
252018T-068J
L5 6200002580 S.COIL
NL
25201 8T-033J
L6 8200002420
S.COIL
NL252018T-O68J
L7 6200002420
S.COIL
NL252018T-068J
L8
6170000180
COIL LW-19
L9 6110001600
COIL LA-243
L10 6110001550 COIL
U-235
L11 6110001560
COIL LA-236
LI 2 8110001600
COIL LA-243
L13 6200003510
S.COIL LER015TR82M
L14 6200004670
S.COIL NL252018T-3R9J
L15 6200002640
S.COIL NL252018T-R15J
L18 6150004490
S.COIL LS-502
L17
6150004490
S.COIL LS-502
L18 6150004490
S.COIL LS-502
L19 8110001620 COIL LA-245
L20 8110001570 COIL LA-237
L21 8200001520
S.COIL MLF2012D
R82K-T
L22 6130002480 S.COIL
LB-277
L23 6200002840 S.COIL
NL252018T-R22J
L24 6200002840
S.COIL NL 25201
8T-R22J
L25 6200002090
S.COIL EUFB
681 K-F
L26 6150004490 S.COIL
LS-502
L28 8200002650 S.COIL
NL252018T-R18J
R2 7030003680
S.RESISTOR ERJ3GEYJ
104 V (100 kQ)
R3 7030003240
S.RESISTOR ERJ3GEYJ
220 V
(22
Q)
R4
7030003480 S.RESISTOR
ERJ3GEYJ
222 V (2.2
kQ)
R5 7030003560
S.RESISTOR ERJ3GEYJ
103 V
(10
kQ)
R8
7030003440
S.RESISTOR ERJ3GEYJ 102
V
(1
kQ)
R7 7030003320
S.RESISTOR ERJ3GEYJ
101 V
(100
Q)
R8 7030003440
S.RESISTOR ERJ3GEYJ
102 V
(1
kQ)
R9
7030003800 S.RESISTOR
ERJ3GEYJ 105
V
(1
MQ)
RIO
7030003490 S.RESISTOR
ERJ3GEYJ
272 V (2.7
kQ)
R11 7030003490 S.RESISTOR
ERJ3GEYJ
272 V (2.7
kQ)
R12
7030003550
S.RESISTOR ERJ3GEYJ 822
V (8.2
kQ)
R13
7030003520 S.RESISTOR ERJ3GEYJ
472 V
(4.7
kQ)
R14
7030003320 S.RESISTOR ERJ3GEYJ
101
V (100
Q)
R15
7030003440 S.RESISTOR ERJ3GEYJ
102 V
(1
kQ)
R16 7030003450 S.RESISTOR
ERJ3GEYJ
122 V (1.2 kQ)
R17 7030003320 S.RESISTOR ERJ3GEYJ
101 V
(100
Q)
R18 7030003630 S.RESISTOR
ERJ3GEYJ
393 V (39
kQ)
R19 7030003540
S.RESISTOR ERJ3GEYJ
882 V (8.8
kQ)
S.=Surface
mount
5-3
