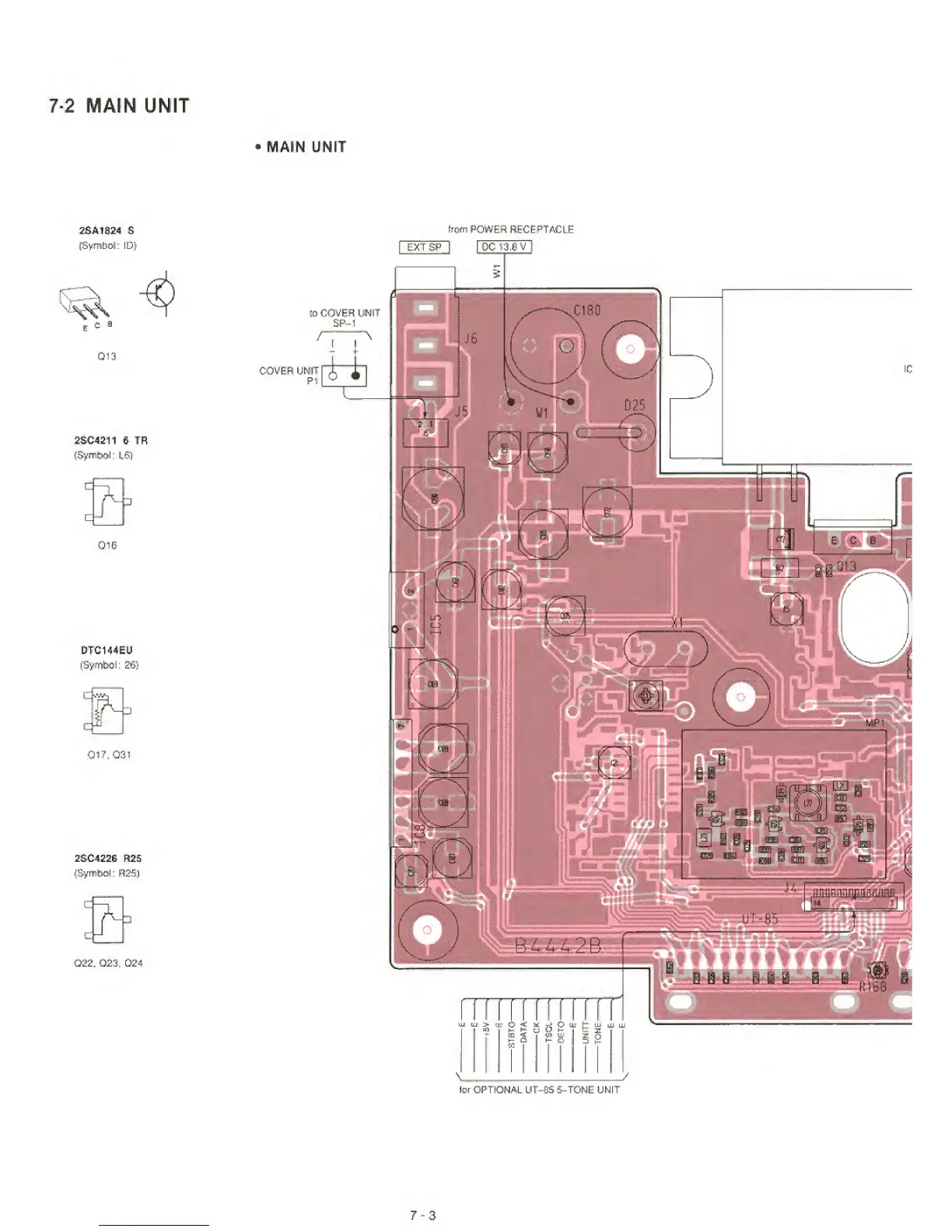

7-2
MAIN UNIT
•
MAIN UNIT
2SA1824 5
(Symbol: ID)
2SC4211 6 TR
(Symbol;
L6)
016
DTC144EU
(Symbol;
£6)
017,
031
2SC422S R25
{Symbol: R25)
022.023,
024
from
POWER
RECEPTACLE
EXTSP DC 13,6 V
to
COVER
UNIT
SP-1
/
COVER
UNIT
PI
1or OPTIONAL UT-SS 5- TONE UNIT
7-3
