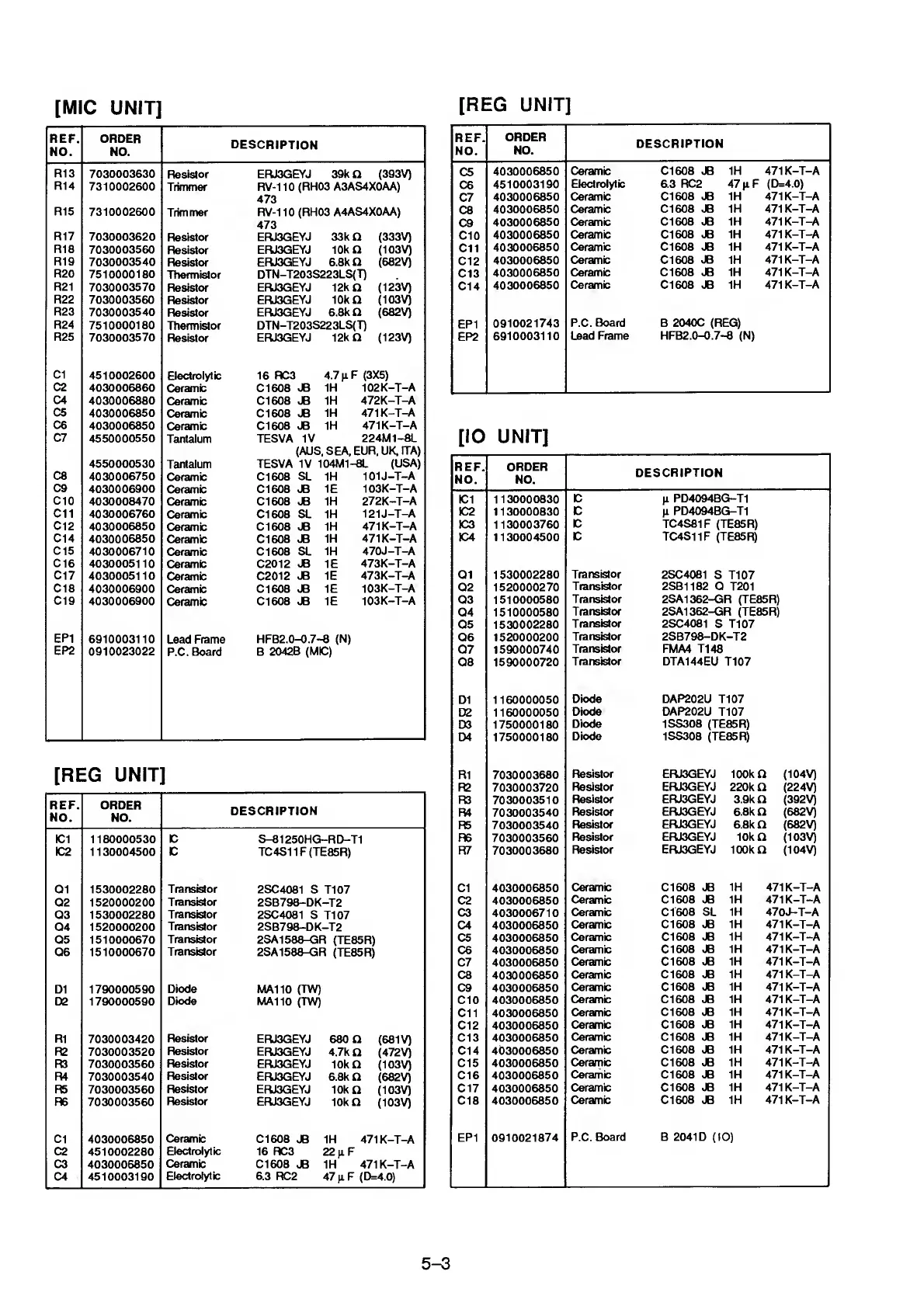

Icom IC-24AT - Page 16

[MIC
UNIT]
REF.
NO.
ORDER
NO.
DESCRIPTION
R13
7030003630
Resistor ERJ3GEYJ 39k
Q
(393V)
R14
7310002600
Trimmer RV-1
10
(RH03 A3AS4X0AA)
473
R15
7310002600
Trimmer RV-1
10
(RH03
A4AS4X0AA)
473
R17
7030003620
Resistor
ERJ3GEYJ 33k
Q
(333V)
R18
7030003560
Resistor
ERJ3GEYJ
lOkQ (103V)
R19
7030003540
Resistor
ERJ3GEYJ
6.8k n (682V)
R20
7510000180
Thermistor
DTN-T203S223LS(T)
R21
7030003570
Resistor
ERJ3GEYJ
12k
O
(123V)
R22
7030003560
Resistor
ERJ3GEYJ 10k n
(103V)
R23
7030003540
Resistor
EFU3GEYJ
6.8k
Q
(682V)
R24
7510000180
Thermistor
DTN-T203S223LS(T)
R25
7030003570
Resistor
ERJ3GEYJ
12k n (123V)
Cl
4510002600
Electrolytic
16 HC3
4.7
^F (3X5)
C2
4030006860
Ceramic C1608
JB 1H 102K-T-A
C4
4030006880
Ceramic
Cl 608 JB 1H
472K-T-nA
C5
4030006850
Ceramic
C1608 JB
1H
471K-T-A
C6
4030006850
Ceramic C1608
JB 1H
471K-T-A
C7
4550000550
Tantalum
TESVA
IV 224M1-8L
(AUS.SEA,
EUR,UK,ITA)
4550000530
Tantalum
TESVA IV 104M1-«.
(USA)
C8
4030006750
Ceramic
C1608
SL 1H
101J-T-A
C9
4030006900
Ceramic
C1608
JB IE
103K-T-A
CIO
4030008470
Ceramic
C1608 JB 1H
272K-T-A
C11
4030006760
Ceramic C1608
SL 1H
121J-T-A
C12
4030006850
Ceramic C1608
JB 1H
471K-T-A
C14
4030006850
Ceramic C1608 JB
1H
471K-T-A
CIS
4030006710
Ceramic C1608
SL 1H
470J-T-A
C16
4030005110
Ceramic C2012
JB IE
473K-T-A
C17
4030005110
Ceramic C2012
JB IE
473K-T-A
C18
4030006900
Ceramic
C1608
JB IE
103K-T-A
C19
4030006900
Ceramic C1608
JB
IE
103K-T-A
EP1
6910003110
Lead
Frame
HFB2.0-0.7-8
(N)
EP2
0910023022
P.C. Board B 2042B
(MIC)
[REG
UNIT]
REF.
NO.
ORDER
NO.
DESCRIPTION
Cl 1180000530
C
S-81250HG-RD-T1
C2 1130004500
c
TC4S11F(TE85R)
oi 1530002280
Transistor
2SC4081
S T107
Q2 1520000200
Transistor
2SB798-DK-T2
Q3 1530002280
Transistor
2SC4081 S T107
Q4 1520000200
Transistor
2SB798-DK-T2
Q5 1510000670
Transistor
2SA1588-GR
(TE85R)
Q6 1510000670
Transistor
2SA1588-GR (TE85R)
D1 1790000590
Diode
MA1
10
(TW)
D2 1790000590
Diode
MA110
(TW)
R1
7030003420
Resistor
ERJ3GEYJ
680 n
(681V)
R2 7030003520
Resistor
ERJ3GEYJ
4.7k
n (472V)
R3 7030003560
Resistor
ERJ3GEYJ
10k n (103V)
R4
7030003540
Resistor
ERJ3GEYJ
6.8k
Q
(682V)
R5 7030003560
Resistor
ERJ3GEYJ
10k
n (103V)
R6
7030003560
Resistor
ERJ3GEYJ
10k
£1
(103V)
Cl
4030006850
Ceramic
C1608
JB 1H
471K-T-A
C2
4510002280
Electrolytic
16 HC3
22^F
C3
4030006850
Ceramic
C1608 JB
1H 471K-T-A
C4 4510003190
Electrolytic 6.3
RC2
47|iF(D=4.0)
[REG UNIT]
REF.
NO.
ORDER
NO.
DESCRIPTION
C5
4030006850
Ceramic C1608 JB 1H 471K-T-A
C6
4510003190
Electrolytic 6.3 RC2
47
(iF (D=4.0)
C7
4030006850 Ceramic
Cl 608 JB 1H 471K-T-A
C8
4030006850
Ceramic C1608 JB 1H 471K-T-A
C9
4030006850 Ceramic
C1608 JB 1H 471K-T-A
CIO
4030006850 Ceramic C1608
JB 1H 471K-T-A
C11
4030006850
Ceramic C1608 JB 1H 471K-T-A
C12
4030006850
Ceramic C1608
JB
1H
471K-T-A
C13
4030006850
Ceramic C1608 JB 1H 471K-T-A
C14
4030006850
Ceramic C1608 JB 1H
471K-T-A
EP1
0910021743
P.C. Board B
2040C
(REG)
EP2
6910003110
Lead Frame HFB2.0-0.7-8 (N)
[10
UNIT]
REF.
NO.
ORDER
NO.
DESCRIPTION
IC1 1130000830
C
(1
PD4094BG-T1
IC2 1130000830
C PD4094BG-T1
IC3 1130003760
C TC4S81F
(TE85R)
IC4 1130004500
C TC4S11F (TE85R)
Q1
1530002280
Transistor
2SC4081
S T107
Q2 1520000270
Transistor 2SB1182 Q T201
Q3 1510000580
Transistor 2SA1362-GR (TE85R)
Q4
1510000580
Transistor 2SA1362-GR (TE85R)
05 1530002280
Transistor
2SC4081
S T107
Q6 1520000200
Transistor
2SB798-DK-T2
Q7
1590000740
Transistor
FMA4 T148
Q8
1590000720
Transistor
DTA144EU
T107
01 1160000050
Diode DAP202U T107
02 1160000050
Diode
DAP202U
T107
03 1750000180
Diode 1SS308 (TE85R)
04 1750000180
Diode 1SS308 (TE85R)
R1
7030003680
Resistor ERJ3GEYJ 100k
n
(104V)
R2 7030003720
Resistor
ERJ3GEYJ
220k a (224V)
R3 7030003510
Resistor
ERJ3GEYJ
3.9k n (392V)
R4
7030003540
Resistor ERJ3GEYJ 6.8k a (682V)
R5 7030003540
Resistor
ERJ3GEYJ
6.8k a (682V)
H6 7030003560
Resistor ERJ3GEYJ 10k
Q
(103V)
R7
7030003680
Resistor ERJ3GEYJ lOOktl (104V)
Cl 4030006850
Ceramic C1608 JB 1H 471K-T-A
C2 4030006850
Ceramic
Cl 608 JB 1H 471K-T-A
C3 4030006710
Ceramic
CT608 SL 1H 470.F-T-A
C4 4030006850
Ceramic
C1608 JB 1H 471K-T-A
C5 4030006850
Ceramic C1608
JB 1H 471K-T-A
C6 4030006850
Ceramic C1608
JB 1H 471K-T-A
C7 4030006850
Ceramic C1608
JB 1H 471K-T-A
C8 4030006850
Ceramic C1608 JB 1H 471K-T-A
C9 4030006850
Ceramic C1608
JB 1H
471K-T-A
CIO 4030006850
Ceramic C1608
JB
1H 471K-T-A
C11 4030006850
Ceramic
C1608 JB 1H 471K-T-A
C12 4030006850
Ceramic C1608
JB 1H
471K-T-A
C13 4030006850
Ceramic C1608 JB 1H 471K-T-A
C14 403OOO685O
Ceramic
Cl 608 JB 1H 471K-T-A
C15 4030006850
Ceramic C1608
JB
1H 471K-T-A
C16 4030006850
Ceramic C1608 JB 1H 471K-T-A
C17 4030006850
Ceramic C1608
JB 1H 471K-T-A
C18 4030006850
Ceramic C1608
JB
1H
471K-T-A
EP1 0910021874
P.C. Board B 2041
D
(lO)
5-3
