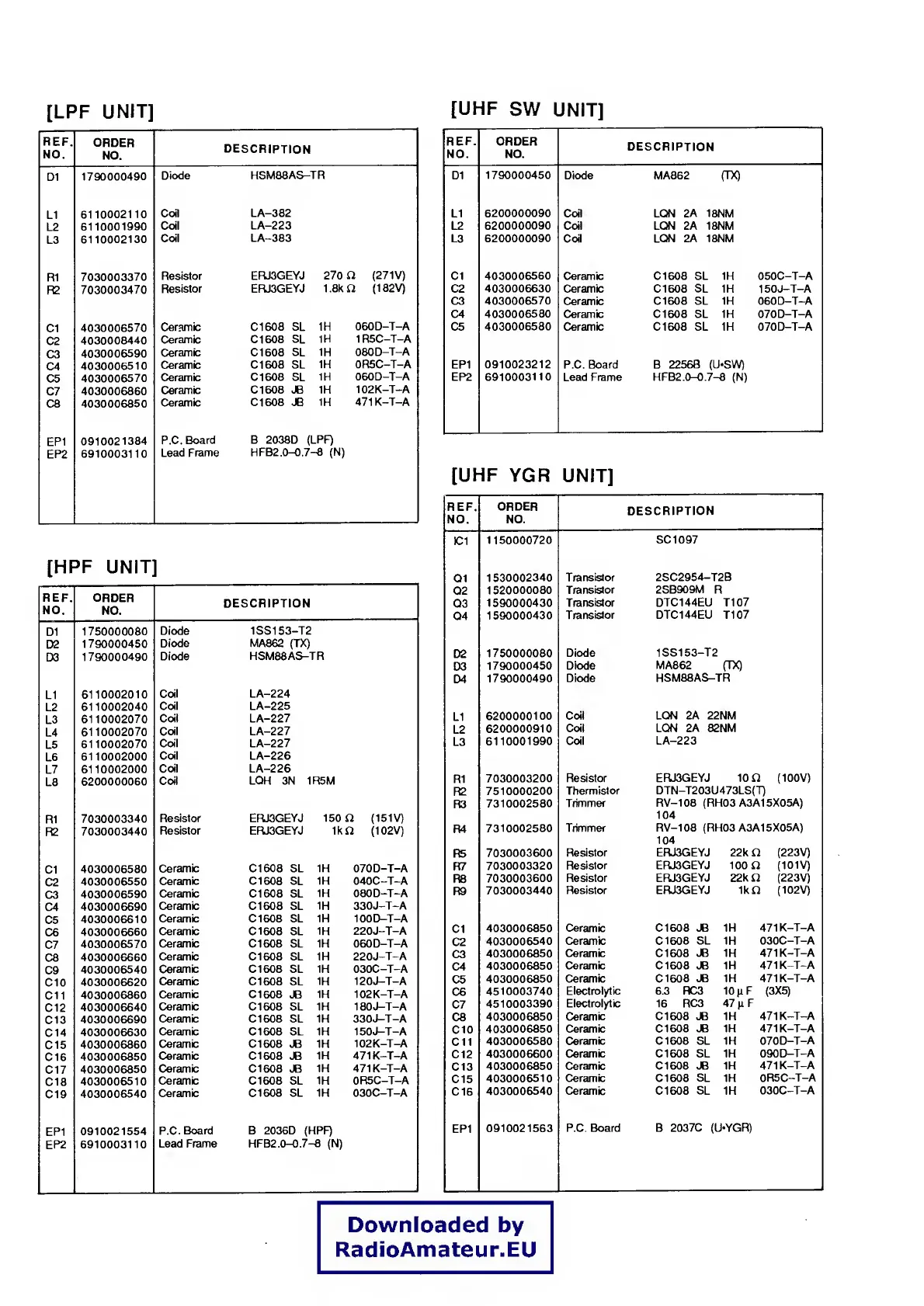

Icom IC-24AT

[LPF
UNIT]
REF.
NO.
ORDER
NO.
DESCRIPTION
D1
1790000490
Diode
HSM88AS-TR
L1
6110002110
Coil
LA-382
L2
6110001990
Coil
LA-223
L3
6110002130
Coil
LA-383
R1
7030003370
Resistor
ERJ3GEYJ 270
n (271V)
F2
7030003470
Resistor
ERJ3GEYJ 1.8k n
(182V)
C1
4030006570
Ceramic C1608
SL 1H
060D-T-A
C2
4030008440
Ceramic C1608
SL 1H 1 R5C-T-A
C3
4030006590
Ceramic Cl 608
SL 1H
080D-T-A
C4
4030006510
Ceramic
C1608 SL
1H 0R5C-T-A
C5
4030006570
Ceramic
C1608 SL
1H 060D-T-A
C7
4030006860
Ceramic
C1608 JB 1H
102K-T-A
C8
4030006850
Ceramic
C1608 JB
1H 471K-T-A
EP1
0910021384
P.C.
Board B 2038D
(LPF)
EP2
6910003110
Lead Frame
HFB2.0-0.7-8
(N)
[HPF UNIT]
REF.
NO.
ORDER
NO.
DESCRIPTION
D1
1750000080
Diode
1SS153-T2
D2
1790000450
Diode
MA862
(TX)
D3
1790000490
Diode
HSM88AS-TR
LI
6110002010
Coil LA-224
L2
6110002040
Coil
LA-225
L3
6110002070
Coil LA-227
L4
6110002070
Coil LA-227
L5
6110002070
Coil LA-227
L6
6110002000
Coil LA-226
L7
6110002000
Coil LA-226
L8
6200000060
Coil LQH 3N 1R5M
R1
7030003340
Resistor ERJ3GEYJ 150
Q
(151V)
R2
7030003440
Resistor ERJ3GEYJ 1k£l
(102V)
Cl
4030006580
Ceramic C1608 SL 1H 070D-T-A
C2
4030006550
Ceramic Cl 608 SL 1H 040C-T-A
C3
4030006590
Ceramic
Cl 608 SL
1H 080D-T-A
C4
4030006690
Ceramic C1608 SL 1H
330J-T-A
C5
4030006610
Ceramic C1608 SL 1H 100D-T-A
C6
4030006660
Ceramic C1608 SL 1H
220J-T-A
C7
4030006570
Ceramc C1608 SL 1H 060D-T-A
C8
4030006660
Ceramic C1608 SL 1H
220J-T-A
C9
4030006540
Ceramic C1608 SL 1H 030C-T-A
CIO
4030006620
Ceramic
C1608 SL 1H
120J-T-A
C11
4030006860
Ceramic C1608 JB 1H 102K-T-A
C12
4030006640
Ceramic C1608 SL 1H 180J-T-A
C13
4030006690
Ceramic C1608 SL 1H 330J-T-A
C14
4030006630
Ceramic C1608 SL 1H 150J-T-A
C15
4030006860
Ceramic C1608 JB 1H
102K-T-A
C16
4030006850
Ceramic
C1608
JB 1H 471K-T-A
C17
4030006850
Ceramic
C1608
JB 1H 471K-T-A
C18
4030006510
Ceramic C1608 SL 1H
0R5C-T-A
C19
4030006540
Ceramic
C1608
SL 1H 030C-T-A
EP1
0910021554
P.C.
Board B 2036D (HPF)
EP2
6910003110
Lead Frame HFB2.0-0.7-8
(N)
[UHF
SW
UNIT]
REF.
NO.
ORDER
NO.
DESCRIPTION
D1
1790000450
Diode MA862 (TX)
LI
6200000090
Coil LON
2A
18NM
L2
6200000090
Coil LON 2A 18NM
L3
6200000090
Coil
LON 2A 18NM
Cl
4030006560
Ceramic C1608 SL 1H 050C-T-A
C2
4030006630
Ceramic C1608 SL 1H 150J-T-A
C3
4030006570
Ceramic C1608 SL 1H 060D-T-A
C4
4030006580
Ceramic C1608 SL 1H 070D-T-A
C5
4030006580
Ceramic C1608 SL 1H 070D-T-A
EP1
0910023212
P C.
Board
B 22568
(U-SW)
EP2
6910003110
Lead Frame HFB2.0-0.7-8 (N)
[UHF
YGR UNIT]
REF.
NO.
ORDER
NO.
DESCRIPTION
Cl
1150000720
SC 1097
01
1530002340
Transistor 2SC2954-T2B
Q2
1520000080
Transistor
2SB909M
F
Q3
1590000430
Transistor DTC144EU T107
Q4
1590000430
Transistor DTC144EU T107
D2
1750000080
Diode
1SS153-T2
D3
1790000450 Diode
MA862 (TX)
D4
1790000490 Diode
HSM88AS-TR
L1
6200000100 Coil
LON 2A 22NM
L2
6200000910
Coil LON
2A
82NM
L3
6110001990 Coil
LA-223
R1
7030003200 Ftesistor
ERJ3GEYJ ion (100V)
R2
7510000200
Thermistor DTN-T203U473LS(T)
R3
7310002580 Trimmer
RV-108 (RH03
A3A15X05A)
104
R4
7310002580 Trimmer
RV-108 (RH03
A3A15X05A)
104
R5
7030003600
Ftesistor ERJ3GEYJ 22k n
(223V)
R7
7030003320
Resistor
ERJ3GEYJ
100 n
(101V)
R8
7030003600 Resistor
ERJ3GEYJ 22k n (223V)
R9
7030003440 Ftesistor
ERJ3GEYJ
ikn
(102V)
Cl
4030006850
Ceramic C1608 JB 1H
471K-T-A
C2
4030006540 Ceramc C1608
SL
1H
030C-T-A
C3
4030006850 Ceramic C1608
JB
1H
471 K-T-A
C4
4030006850
Ceramic C1608 JB 1H
471 K-T-A
C5
4030006850 Ceramic C1608
JB 1H 471 K-T-A
C6
4510003740
Electrolytic 6.3 HC3
10
(iF (3X5)
C7
4510003390
Electrolytic
16
RC3 47jiF
C8
4030006850
Ceramic Cl 608 JB 1H
471 K-T-A
CIO
4030006850 Ceramic
C1608 JB 1H 471 K-T-A
C11
4030006580
Ceramic C1608 SL 1H
070D-T-A
C12
4030006600
Ceramic C1608 SL 1H
090D-T-A
C13
4030006850
Ceramic C1608 JB 1H
471 K-T-A
C15
4030006510 Ceramic Cl 608
SL
1H
0FI5C-T-A
C16
4030006540 Ceramic C1608
SL
1H
030C-T-A
EP1
0910021563 P.C. Board B
2037C (U-YGR)
