Icom IC-4088SR - Cabinet Parts; Accessories

SP1 2510001120 Speaker SDRS-3650P-008 1
EP1 3310003060 Antenna 2628 ANT [EUR] 1
3310003120 Antenna 2628 SHORT ANT M [EUR-1] 1
MP1 8210019370 2628 Front panel 1
MP2 8110007900 2628 Rear cover 1
MP3 8210019380 2628 Rear panel 1
MP4 8310054740 2628 Window plate 1
MP5 8930059220 2628 Window sheet 1
MP6 8930059210 2628 SP JACK CAP 1
MP7 8610011270 Knob N-296 1
MP8 8930059240 2628 4-key 1
MP9 8930059250 2628 PTT rubber 1
MP10 8930059260 2628 A-terminal 1
MP11 8930059270 2628 B-terminal 1
MP12 8930059280 2628 Detect button 1
MP13 8930059550 2628 PTT sheet 1
MP14 8110007910 2628 Lock cover 1
MP15 8930059290 O-ring (AU) 1
MP16 8930059590 O-ring (AV) 1
MP17 8930045220 2045 BATT seal 1
MP19 8930045370 2045 C-terminal 2
MP20 8810008750 Screw PH B0 2x15 ZK (BT) 1
MP22 8930058310 2605 DC cap 1
MP25 8830000550 Nut (E) 1
MP32 8810009560 Screw PH B0 2x6 ZK (BT) 5
MP33 8810008620 Screw PH B0 2x20 ZK (BT) 1
MP35 8930059600 2628 Mic rubber 1
MP36 8930059610 Sponge (HC) 1

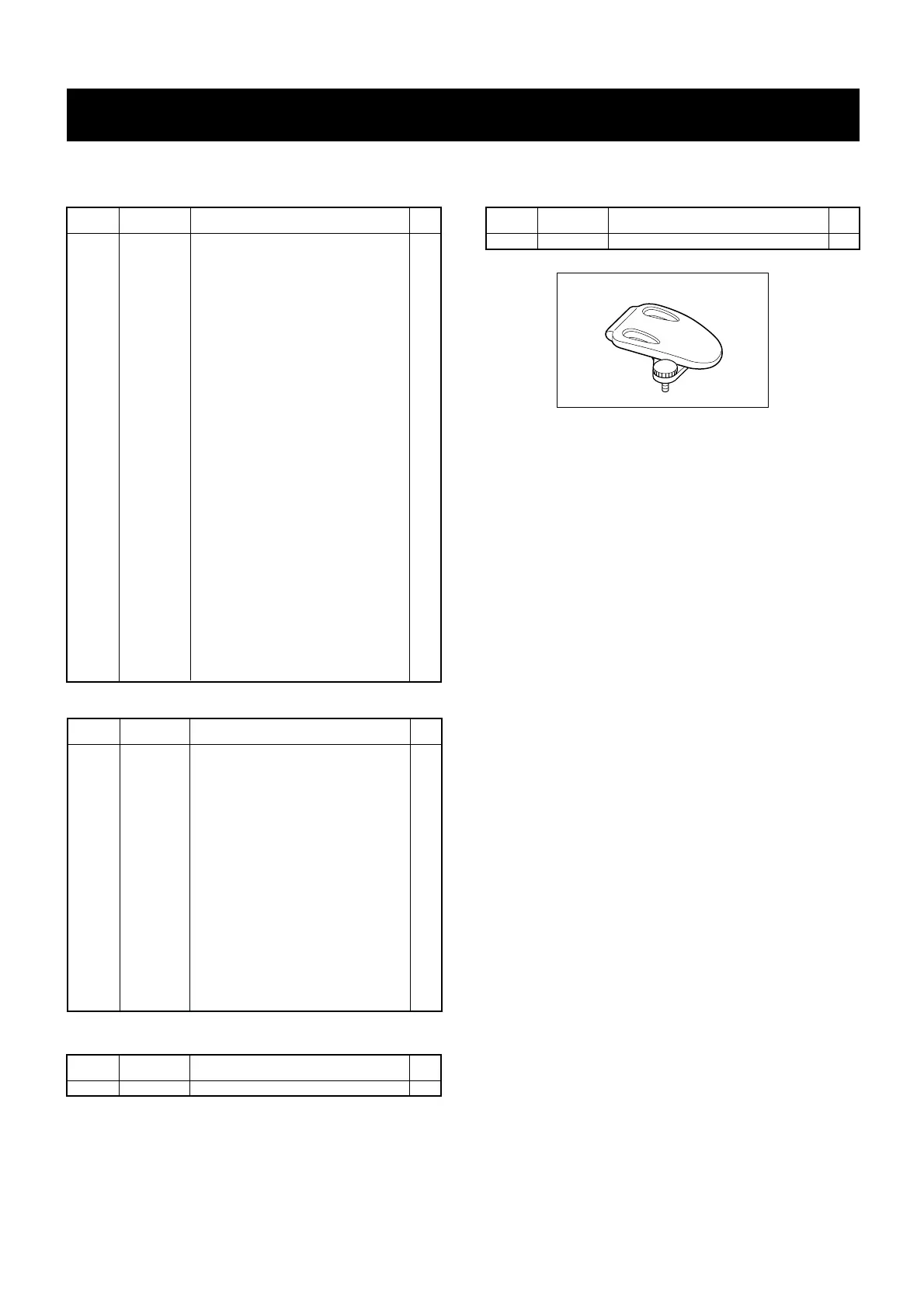

SECTION 7 MECHANICAL PARTS AND DISASSEMBLY
7 - 1
Screw abbreviations B0, BT: Self-tapping
PH: Pan head
ZK: Black
REF. NO. ORDER NO.
DESCRIPTION
QTY.
7-1 CABINET PARTS
[CHASSIS PARTS]
REF. NO. ORDER NO.
DESCRIPTION
QTY.
[MAIN UNIT]
R406 7210001970 RV-244 1
J301 6450001060 HSJ1493-01-01 1
J302 6450002130 04-730A-02BKA 1
J303 6450000130 HSJ1102-01-540 1
DS300 5030002520 LCD L2-0494TAY 1
MC300 7700002160 KUC3523-040245 1
S304 2260001900 SW-149 1
EP303 6910012350 LCD contact SRCN-2045-SP-N-W 1
MP301 8210019390 2628 Reflector 1
MP302 8930060120 2628 LCD holder 1
MP303 8810004890 Screw PH 2x6 ZK 2
MP304 8010019180 2628 CHASSIS 1
MP1 8930045332 2045 Belt clip-2 1
REF. NO. ORDER NO.
DESCRIPTION
QTY.
REF. NO. ORDER NO.
DESCRIPTION
QTY.
[RF UNIT]
MP1 8510011570 2405 VCO case 1
7-2 ACCESSORIES
MP1
