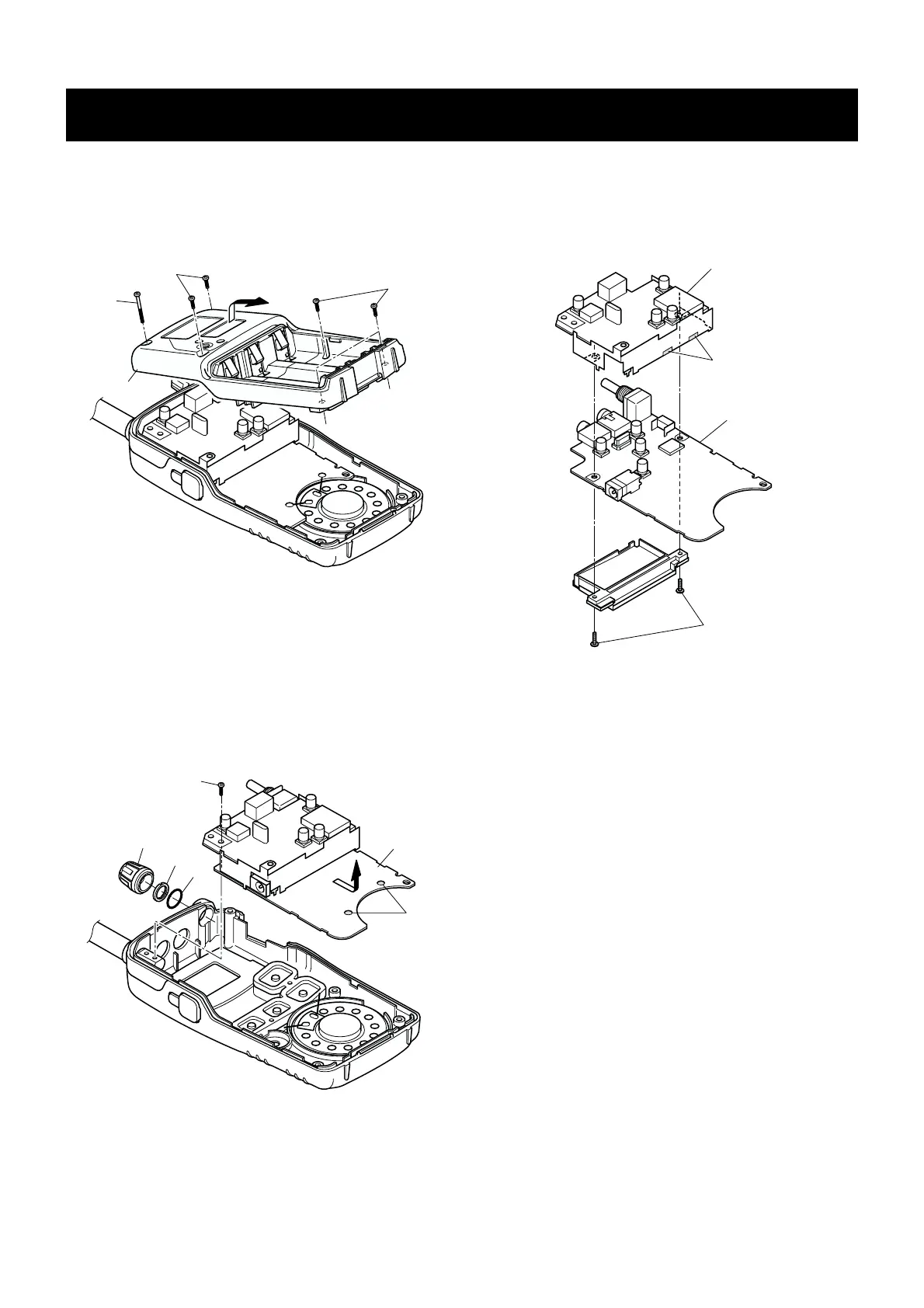

SECTION 3 DISASSEMBLY INSTRUCTIONS
3 - 1
Rear panel
B
A
B
C
D
F
G
Main unit
E
RF unit
Main unit
I
H
•
REMOVING THE REAR PANEL
1 Unscrew 1 screw A, and 5 screws B.
2 Remove the rear panel in the direction of the arrow.
•
REMOVING THE RF UNIT
1 Unscrew 2 screws H.
2 Unsolder 2 points I, and remove the RF unit.
•
REMOVING THE MAIN UNIT
1 Remove 1 knob C, unscrew 1 nut D, and then remove 1
ring E.
2 Unscrew 1 screw F.
3 Unsolder 2 points G, and remove the MAIN unit in the
direction of the arrow.
