PANEL DESCRIPTION

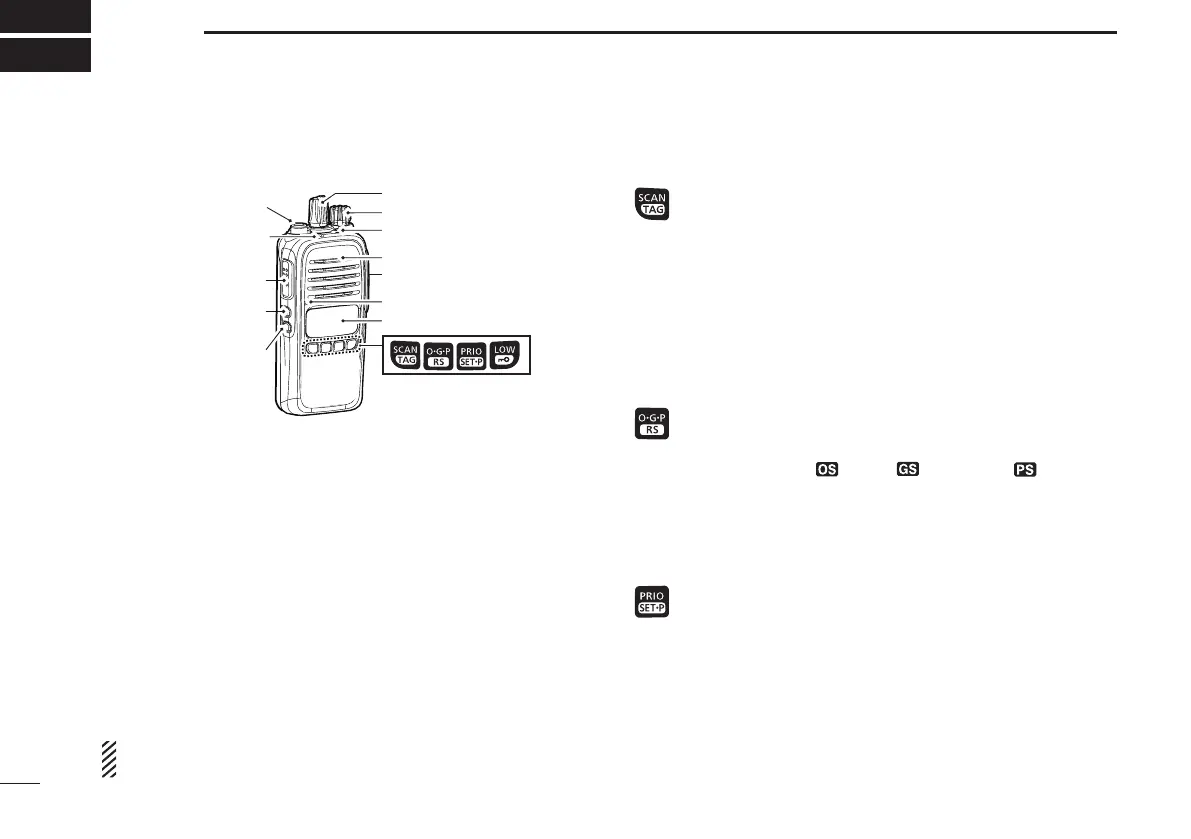

■ Panel description
Microphone
Speaker
[ROTARY SELECTOR]
[VOL]
[TOP]
Speaker-microphone jac
Function Display
[Side 2]
[Side 1]
[PTT]
STATUS INDICATOR
Antenna
connector
[ROTARY SELECTOR]
• Rotate to change the channel or setting value.
[VOL]
• Rotate to turn the transceiver ON or OFF.
• Rotate to adjust the volume level.
[TOP]
• Push to change between Normal mode and Function mode.
Normal mode
• Hold down for 2 seconds to enter the Set mode.
Function mode
• When a receive channel is selected, hold down for 2 seconds to
enter the RX VFO (receive frequency select) mode.
NOTE : In the Function mode, after 30 seconds with no operation,
the transceiver returns to the Normal mode.
Normal mode
• Push to start or stop a scan.
• Hold down for 2 seconds to tag or untag the displayed channel.
The tagged channels will be scanned.
Function mode
• Push to enter the Selcall code channel selection mode.
• Hold down for 2 seconds to transmit the selected Selcall code,
when a CB channel is selected.
Normal mode
• Push to select an Open , Group , and Priority scan.
• Hold down for 2 seconds to start or stop a Repeater scan.
Function mode
• Push to turn the Selcall Quiet mode ON or OFF.
• Hold down for 2 seconds to display the history of received ID codes.
Normal mode
• Push to display the Priority channel, if set.
• Hold down for 2 seconds to set the displayed channel as the Prior-
ity channel.
Function mode
• Push to transmit a Smart-ring signal.
• Hold down for 2 seconds to clear the Priority channel setting.
