Icom IC-730 - Page 45

......
I

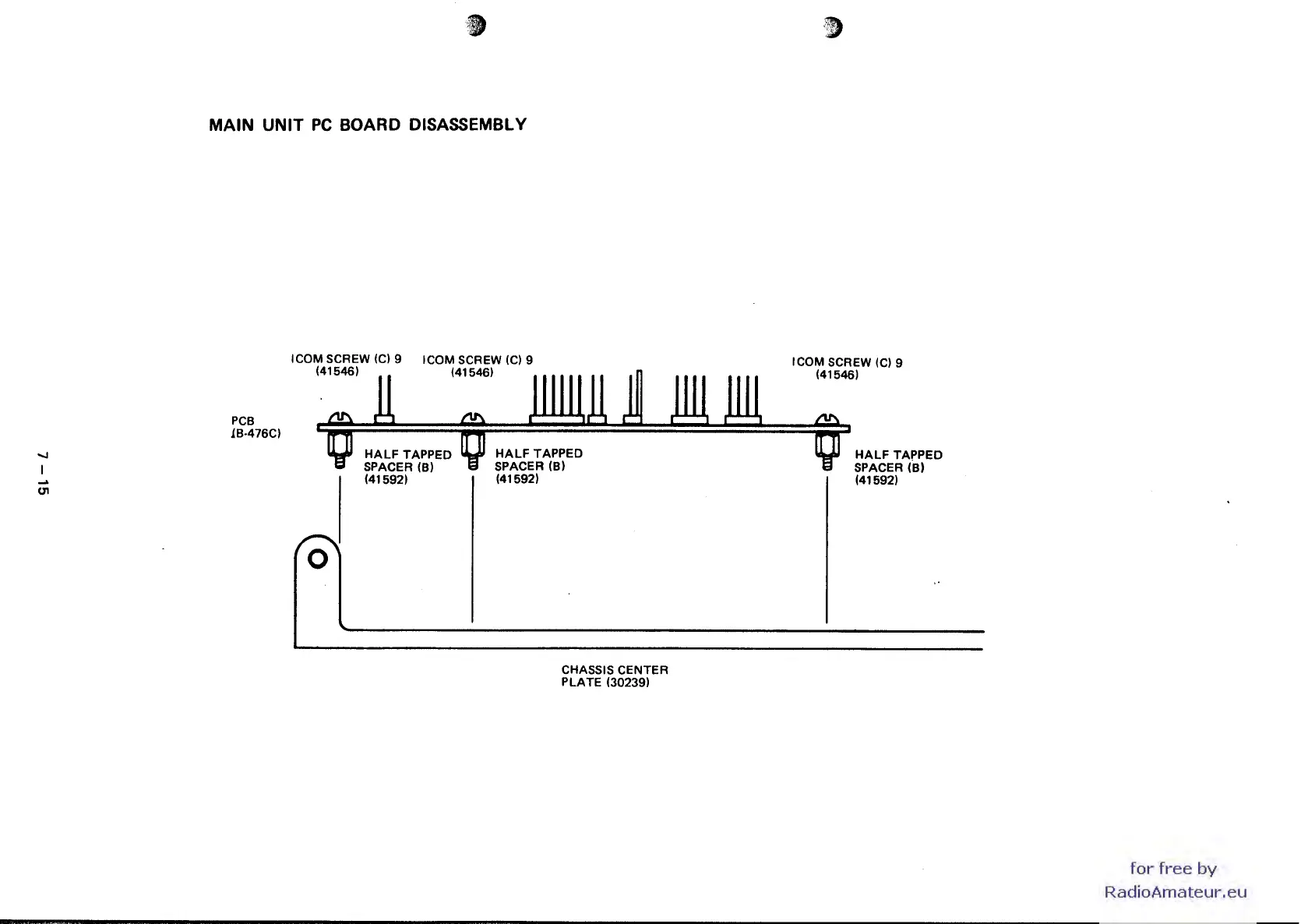

MAIN UNIT PC BOARD DISASSEMBLY
PCB
JB-476C)
ICOM SCREW (C) 9 ICOM SCREW (C) 9
(41546) (41546)
o
HALF TAPPED
SPACER (B)
(41592)
CHASSIS CENTER
PLATE
(30239)
ICOM
SCREW (C) 9
(41546)
HALF TAPPED
SPACER
(B)
(41592)
