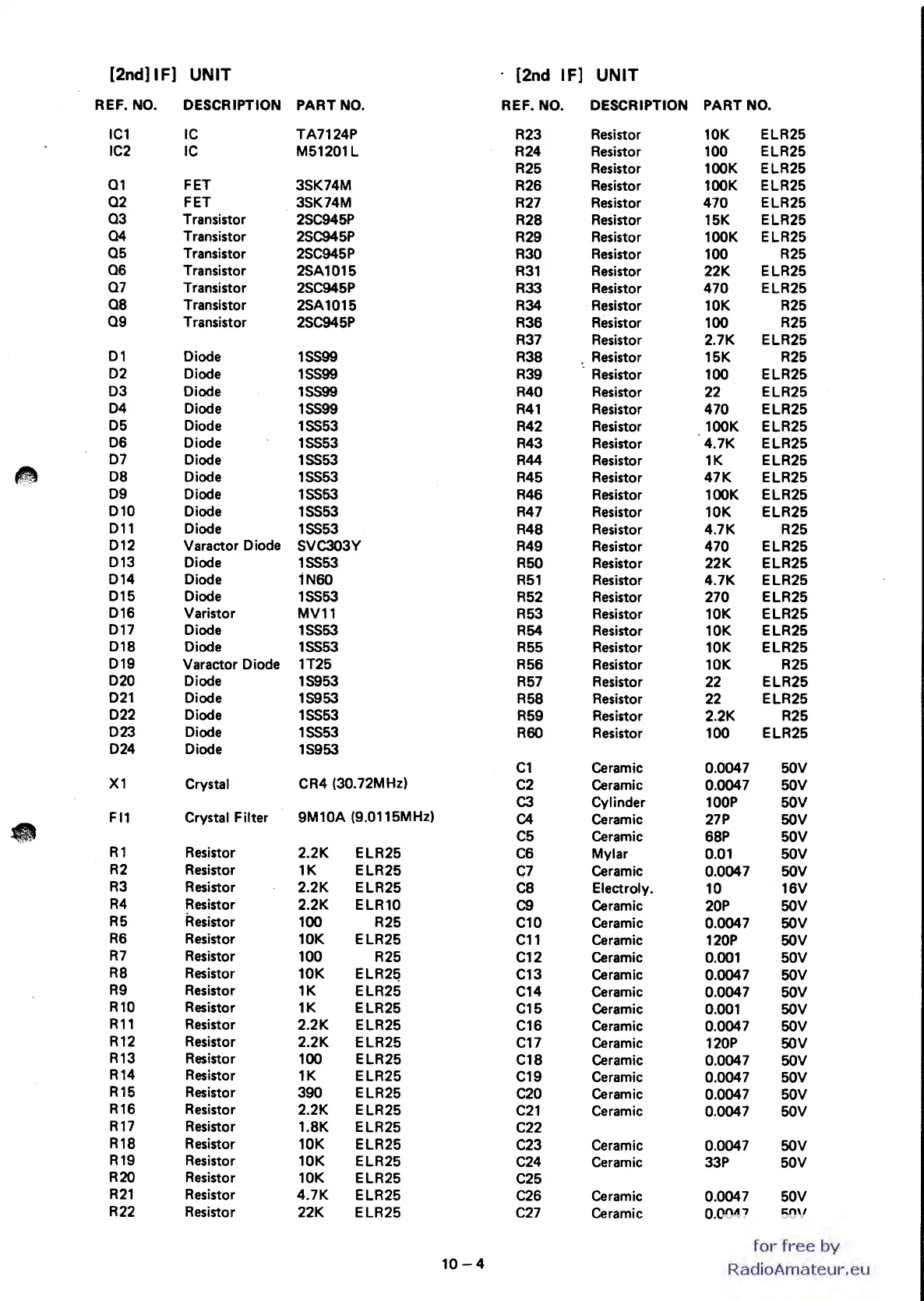

Icom IC-730 - Page 92

[2nd] IF]
UNIT [2nd IF]
UNIT
REF. NO.
DESCRIPTION
PART NO. REF. NO. DESCRIPTION PART NO.
ICl
IC
TA7124P
R23 Resistor
10K ELR25
IC2 IC M51201L R24
Resistor
100
ELR25
R25 Resistor
lOOK ELR25
01
FET
3SK74M R26 Resistor
lOOK ELR25
02 FET
3SK74M
R27 Resistor
470
ELR25
03
Transistor 2SC945P
R28
Resistor 15K ELR25
04 Transistor
2SC945P
R29 Resistor
lOOK ELR25
05 Transistor
2SC945P
R30
Resistor
100
R25
06
Transistor
2SA1015 R31
Resistor 22K
ELR25
07
Transistor
2SC945P
R33 Resistor 470
ELR25
08
Transistor
2SA1015 R34 Resistor 10K R25
09
Transistor
2SC945P R36 Resistor
100
R25
R37 Resistor
2.7K
ELR25
01
Diode
lSS99
R38
Resistor
15K
R25
02 Diode
lSS99
R39 Resistor
100
ELR25
03 Diode
lSS99 R40
Resistor 22
ELR25
04
Diode
lSS99 R41
Resistor 470
ELR25
05 Diode
lSS53
R42 Resistor lOOK ELR25
06 Diode
lSS53
R43 Resistor 4.7K ELR25
07
Diode
lSS53 R44
Resistor
lK ELR25
"
08
Diode
lSS53 R45 Resistor 47K ELR25
09
Diode lSS53
R46 Resistor lOOK ELR25
010 Diode
lSS53 R47 Resistor 10K ELR25
011 Diode
lSS53
R48 Resistor 4.7K R25
012 Varactor 0 iode
SVC303Y
R49 Resistor
470
ELR25
013 Diode
lSS53
R50
Resistor
22K ELR25
014 Diode
1N60
R51
Resistor 4.7K
ELR25
015
Diode
lSS53 R52
Resistor
270
ELR25
016
Varistor MVll
R53 Resistor 10K ELR25
017
Diode
lSS53 R54
Resistor
10K
ELR25
018
Diode
lSS53 R55 Resistor
10K
ELR25
019
Varactor Diode
1T25
R56 Resistor
10K
R25
020
Diode
1S953
R57 Resistor
22
ELR25
021 Diode
1S953
R58 Resistor 22 ELR25
022 Diode
lSS53
R59
Resistor 2.2K R25
023 Diode
lSS53
R60
Resistor
100 ELR25
024 Diode
lS953
Cl Ceramic
0.0047 50V
Xl
Crystal
CR4 (30.72MHz)
C2 Ceramic
0.0047 50V
C3 Cylinder
lOOP 50V
..
Fll
Crystal Filter
9Ml0A (9.0115MHz)
C4 Ceramic
27P 50V
C5 Ceramic
68P
50V
Rl
Resistor
2.2K ELR25
C6
Mylar
0.01 50V
R2
Resistor
lK ELR25
C7
Ceramic
0.0047 50V
R3
Resistor
2.2K
ELR25
C8 Electroly.
10
16V
R4
Resistor 2.2K
ELR10
C9 Ceramic
20P 50V
R5
Resistor
100 R25
Cl0 Ceramic
0.0047 50V
R6
Resistor
10K ELR25
Cll Ceramic
120P 50V
R7
Resistor
100 R25
C12 Ceramic
0.001 50V
R8
Resistor
10K
ELR2~
C13 Ceramic
0.0047 50V
R9
Resistor
lK
ELR25
C14
Ceramic
0.0047 50V
Rl0
Resistor
lK ELR25
C15
Ceramic
0.001 50V
Rll Resistor
2.2K ELR25
C16 Ceramic
0.0047
50V
R12
Resistor
2.2K
ELR25
C17 Ceramic
120P 50V
R13
Resistor
100 ELR25
C18 Ceramic
0.0047
50V
R14
Resistor
lK
ELR25
C19
Ceramic
0.0047 50V
R15
Resistor
390
ELR25
C20 Ceramic
0.0047 50V
R16
Resistor
2.2K ELR25
C21
Ceramic
0.0047 50V
R17
Resistor
1.8K ELR25
C22
R18 Resistor
10K
ELR25
C23 Ceramic
0.0047 50V
R19
Resistor
10K
ELR25
C24
Ceramic
33P
50V
R20
Resistor
10K
ELR25
C25
R21 Resistor
4.7K
ELR25
C26 Ceramic
0.0047 50V
R22
Resistor
22K ELR25
C27
Ceramic
0.0047 50V
10-4
