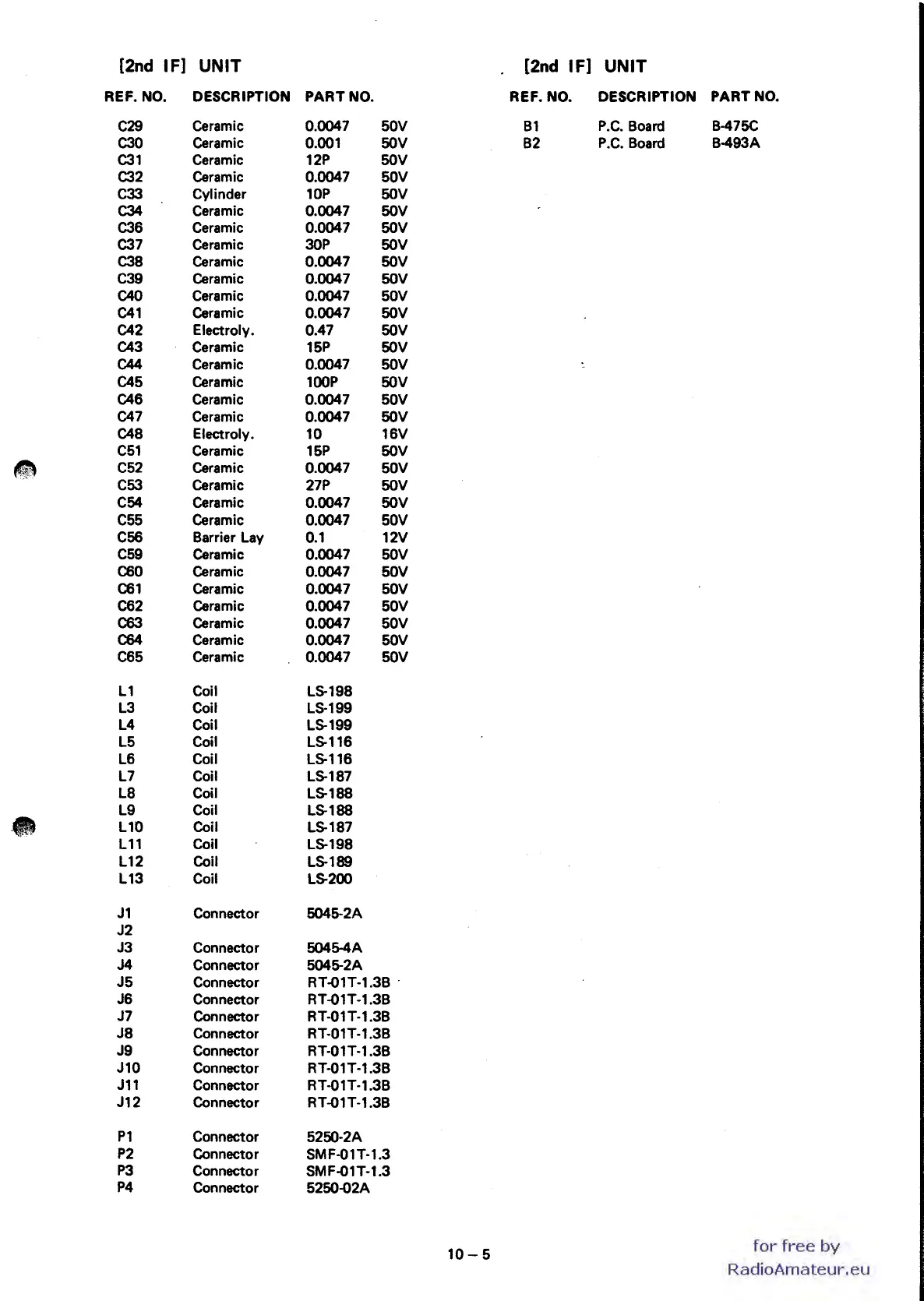

Icom IC-730 - Page 93

[2nd IF]
UNIT
[2nd IF]
UNIT
REF. NO. DESCRIPTION PART NO. REF. NO. DESCRIPTION
PART NO.
C29
Ceramic 0.0047
50V
Bl
P.C. Board B-475C
C30
Ceramic 0.001
50V B2
P.C. Board B-493A
C3l
Ceramic l2P
50V
C32 Ceramic 0.0047
50V
C33
Cylinder
lOP
50V
C34
Ceramic 0.0047
50V
C36
Ceramic
0.0047 50V
C37 Ceramic
30P
50V
C38
Ceramic
0.0047 50V
C39 Ceramic 0.0047 50V
C40
Ceramic
0.0047 50V
C41
Ceramic
0.0047 50V
C42
Electroly.
0.47 50V
C43 Ceramic 15P
50V
C44
Ceramic 0.0047
50V
C45
Ceramic
lOOP 50V
C46 Ceramic
0.0047 50V
C47
Ceramic 0.0047 50V
C48
Electroly.
10 l6V
C51 Ceramic 15P
50V
~
C52 Ceramic 0.0047 50V
C53 Ceramic 27P 50V
C54
Ceramic
0.0047 50V
C55
Ceramic
0.0047 50V
C56
Barrier Lay
0.1 12V
C59 Ceramic
0.0047 50V
C60 Ceramic
0.0047 50V
C61 Ceramic 0.0047
50V
C62
Ceramic
0.0047 50V
C63
Ceramic
0.0047 50V
C64 Ceramic 0.0047 50V
C65
Ceramic
0.0047 50V
L1 Coil
L8-198
L3 Coil
LS-l99
L4 Coil L8-199
L5
Coil
L8-116
L6 Coil
L8-116
L7 Coil
L8-187
L8 Coil
L8-188
L9 Coil
L8-188
••
L10 Coil L8-187
L11 Coil L8-198
L12 Coil
L8-189
L13 Coil
L8-200
Jl Connector
5045-2A
J2
J3
Connector 5045-4A
J4 Connector
5045-2A
J5
Connector
RT-01T-l.3B .
J6 Connector
RT-01T-l.3B
J7 Connector
RT-01T-l.3B
J8
Connector RT-01T-l.3B
J9
Connector
RT-01T-l.3B
Jl0
Connector RT-01T-l.3B
Jll
Connector RT-01T-l.3B
J12
Connector RT-01T-l.38
Pl
Connector
5250-2A
P2
Connector SMF-01T-l.3
P3
Connector SMF-01T-l.3
P4
Connector
5250-02A
