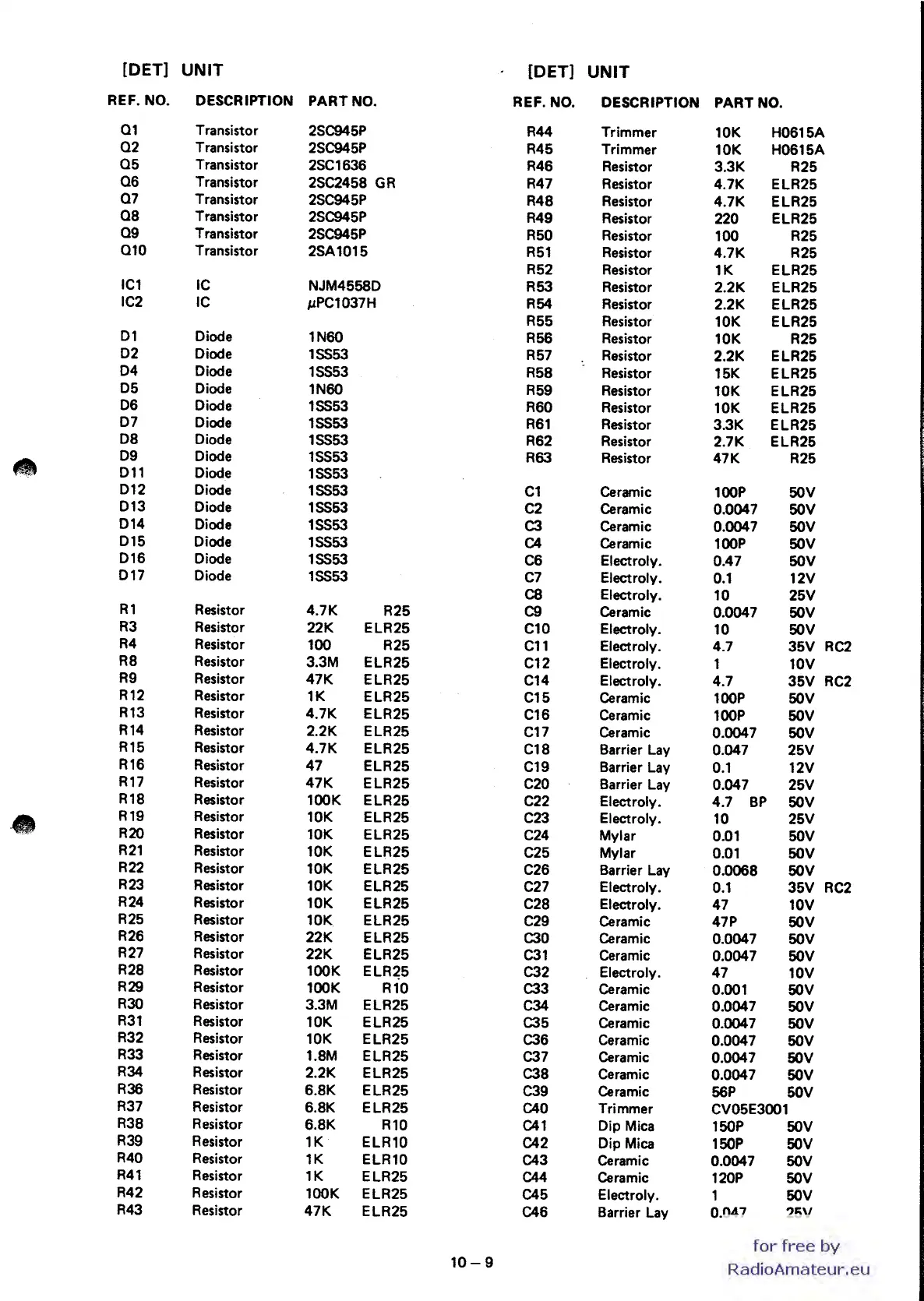

Icom IC-730 - Page 97

[DET]
UNIT
[DET]
UNIT
REF. NO.
DESCRIPTION
PART NO.
REF. NO.
DESCRIPTION
PART NO.
01 Transistor
2SC945P
R44
Trimmer
10K H0615A
02 Transistor
2SC945P
R45
Trimmer
10K
H0615A
05
Transistor
2SC1636
R46
Resistor
3.3K R25
06
Transistor
2SC2458
GR
R47
Resistor
4.7K ELR25
07
Transistor
2SC945P
R48
Resistor
4.7K ELR25
08
Transistor
2SC945P
R49
Resistor
220
ELR25
09
Transistor
2SC945P
R50
Resistor
100 R25
010
Transistor
2SA1015
R51
Resistor
4.7K R25
R52
Resistor
1K ELR25
IC1
IC
NJM4558D
R53
Resistor
2.2K ELR25
IC2
IC
JLPC1037H
R54
Resistor
2.2K ELR25
R55
Resistor
10K ELR25
01
Diode
1N60
R56
Resistor
10K R25
02
Diode
1SS53
R57
Resistor
2.2K ELR25
04
Diode
1SS53
R58
Resistor 15K ELR25
05
Diode
1N60
R59
Resistor
10K ELR25
06
Diode
1SS53
R60
Resistor
10K ELR25
07
Diode
1SS53
R61
Resistor
3.3K ELR25
08
Diode
1SS53
R62
Resistor
2.7K ELR25
--
09
Diode
1SS53
R63
Resistor
47K R25
011
Diode
1SS53
012
Diode
1SS53
C1
Ceramic
100P 50V
013
Diode
1SS53
C2
Ceramic
0.0047
50V
014
Diode
1SS53
C3 Ceramic
0.0047
50V
015
Diode
1SS53
C4 Ceramic
100P 50V
016
Diode
1SS53
C6 Electroly.
0.47 50V
017
Diode
1SS53
C7
Electroly.
0.1 12V
C8 Electroly.
10
25V
R1
Resistor
4.7K
R25
C9
Ceramic
0.0047
50V
R3
Resistor
22K
ELR25
C10 Electroly.
10
50V
R4
Resistor
100 R25
C11 Electroly.
4.7
35V RC2
R8
Resistor
3.3M
ELR25
C12 Electroly.
1
10V
R9
Resistor
47K
ELR25
C14
Electroly.
4.7
35V RC2
R12
Resistor
1K
ELR25
C15
Ceramic
100P 50V
R13
Resistor
4.7K
ELR25
C16
Ceramic
100P
50V
R14
Resistor
2.2K
ELR25
C17
Ceramic
0.0047
50V
R15
Resistor
4.7K
ELR25
C18
Barrier Lay
0.047 25V
R16
Resistor
47
ELR25
C19 Barrier Lay
0.1 12V
R17
Resistor
47K
ELR25
C20 Barrier Lay
0.047 25V
R18
Resistor
100K
ELR25
C22 Electroly.
4.7
BP
50V
•
R19
Resistor
10K
ELR25
C23 Electroly.
10 25V
R20
Resistor
10K
ELR25
C24 Mylar
0.01
50V
R21
Resistor
10K
ELR25
C25 Mylar
0.01
50V
R22
Resistor
10K
ELR25
C26 Barrier Lay
0.0068
50V
R23
Resistor
10K
ELR25
C27
Electroly.
0.1 35V RC2
R24
Resistor
10K
ELR25
C28
Electroly.
47
10V
R25
Resistor
10K
ELR25
C29 Ceramic
47P
50V
R26
Resistor
22K
ELR25
C30
Ceramic
0.0047
50V
R27
Resistor
22K ELR25
C31
Ceramic
0.0047
50V
R28
Resistor
100K
ELR~5
C32 Electroly.
47
10V
R29
Resistor
100K
R10
C33 Ceramic
0.001 50V
R30
Resistor
3.3M
ELR25
C34 Ceramic
0.0047 50V
R31
Resistor
10K
ELR25
C35
Ceramic
0.0047
50V
R32
Resistor
10K
ELR25
C36 Ceramic
0.0047
50V
R33
Resistor
108M
ELR25
C37
Ceramic
0.0047
50V
R34
Resistor
2.2K
ELR25
C38
Ceramic
0.0047
50V
R36
Resistor
6.8K
ELR25
C39 Ceramic
56P
50V
R37
Resistor
6.8K
ELR25
C40 Trimmer
CV05E3001
R38
Resistor
6.8K
R10
C41 Dip Mica
150P
50V
R39
Resistor
1K
ELR10
C42
Dip Mica
150P
50V
R40
Resistor
1K
ELR10
C43
Ceramic
0.0047 50V
R41
Resistor
1K
ELR25
C44
Ceramic
120P
50V
R42
Resistor
100K ELR25
C45 Electroly.
1 50V
R43
Resistor
47K
ELR25
C46
Barrier Lay
0.047
25V
10-9
