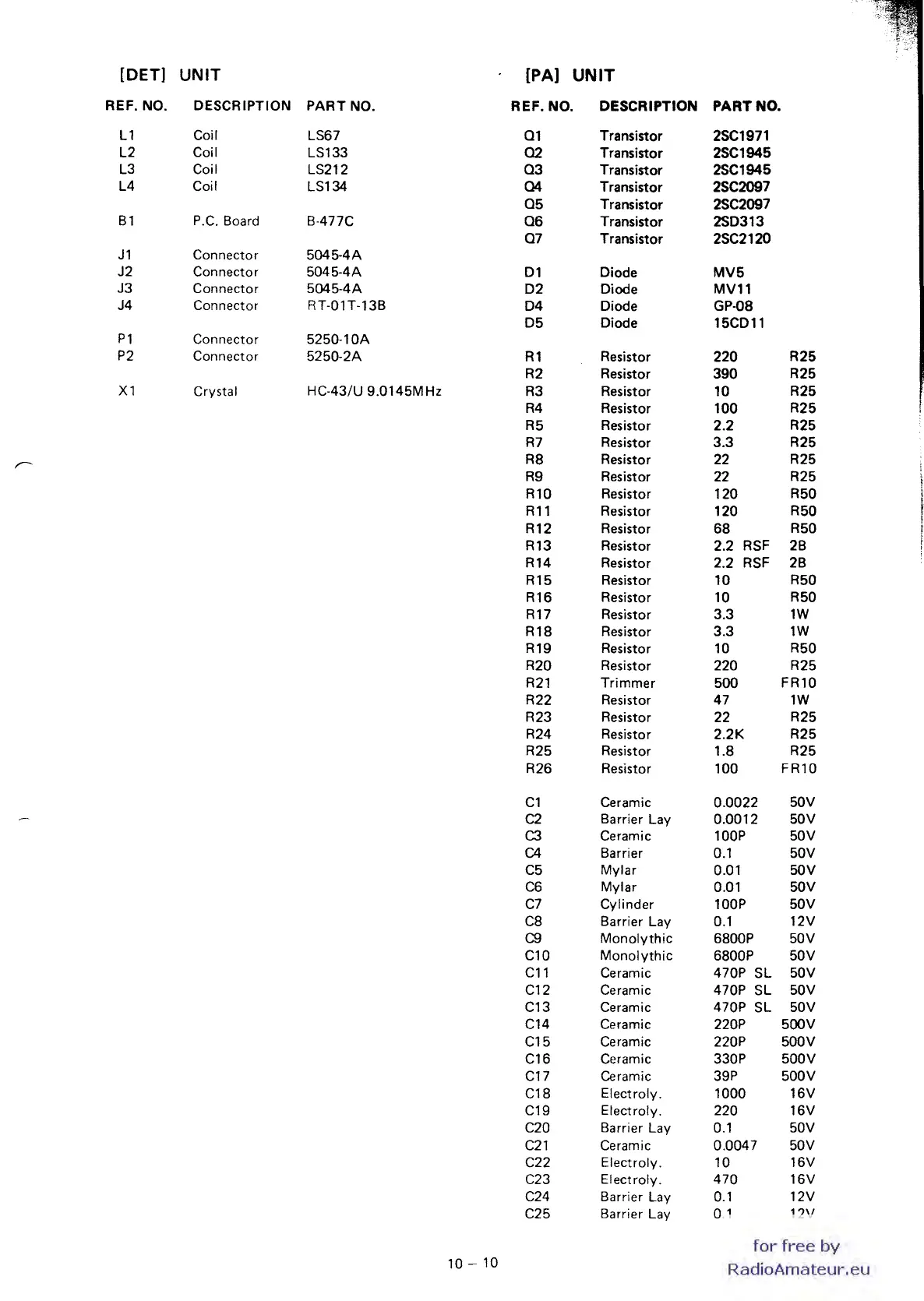

[DET]
UNIT [PA]
UNIT
REF. NO. DESCRIPTION
PART NO.
REF. NO. DESCRIPTION PART NO.
L1
Coil
LS67
01 Transistor 2SC1971
L2 Coil
LS133
02
Transistor 2SC1945
L3 Coil
LS212
03
Transistor 2SC1945
L4 Coil
LSl34
Q4
Transistor
2SC2097
05
Transistor 2SC2097
Bl P.C. Board
BA77C
06
Transistor 2SD313
07 Transistor
2SC2120
Jl Connector
5045-4A
J2 Connector 5045-4A
Dl
Diode MV5
J3
Connector
5045-4A
D2 Diode MV11
J4 Connector RT-OH-13B
D4 Diode GP-08
D5 Diode
15CD11
Pl Connector
5250-10A
P2
Connector 5250-2A
Rl Resistor 220 R25
R2
Resistor
390
R25
Xl
Crystal HC-43/U 9.0145MHz
R3 Resistor
10
R25
R4
Resistor 100
R25
R5 Resistor
2_2
R25
R7 Resistor 3.3 R25
R8
Resistor
22
R25
R9 Resistor
22
R25
Rl0 Resistor
120
R50
Rll Resistor
120
R50
R12 Resistor
68
R50
R13 Resistor
2.2
RSF 28
R14 Resistor 2.2 RSF 28
R15 Resistor 10 R50
R16 Resistor 10
R50
R17
Resistor 3.3
lW
R18 Resistor 3.3
lW
R19
Resistor
10
R50
R20
Resistor 220
R25
R21 Trimmer
500
FR10
R22 Resistor 47 lW
R23 Resistor
22
R25
R24
Resistor
2.2K R25
R25 Resistor
1.8
R25
R26
Resistor
100
FR10
Cl Ceramic 0.0022
50V
C2 Barrier Lay 0.0012 50V
C3
Ceramic
lOOP
50V
C4
Barrier
0.1 50V
C5
Mylar
0.01 50V
C6 Mylar
0.01
50V
C7 Cylinder
lOOP
50V
C8
Barrier Lay
0.1
12V
C9
Monolythic
6800P 50V
Cl0 Monolythic
6800P 50V
Cl1
Ceramic 470P SL 50V
C12
Ceramic 470P SL 50V
C13 Ceramic 470P SL 50V
C14
Ceramic
220P 500V
C15
Ceramic
220P 500V
C16
Ceramic 330P
500V
C17 Ceramic
39P
500V
C18
Electroly.
1000
16V
C19 Electroly. 220 16V
C20 Barrier Lay 0.1 50V
C21 Ceramic 0.0047 50V
C22
Electroly.
10
16V
C23 Electroly.
470 16V
C24 Barrier Lay 0.1 12V
C25
Barrier Lay
0.1 12V
10 - 10
