Icom IC-7300 Quick Guide

Start up procedure for IC 7300 Radio
1. Once all connections are complete , turn on the power supply and
press the “Power” button (1) to turn on the radio.

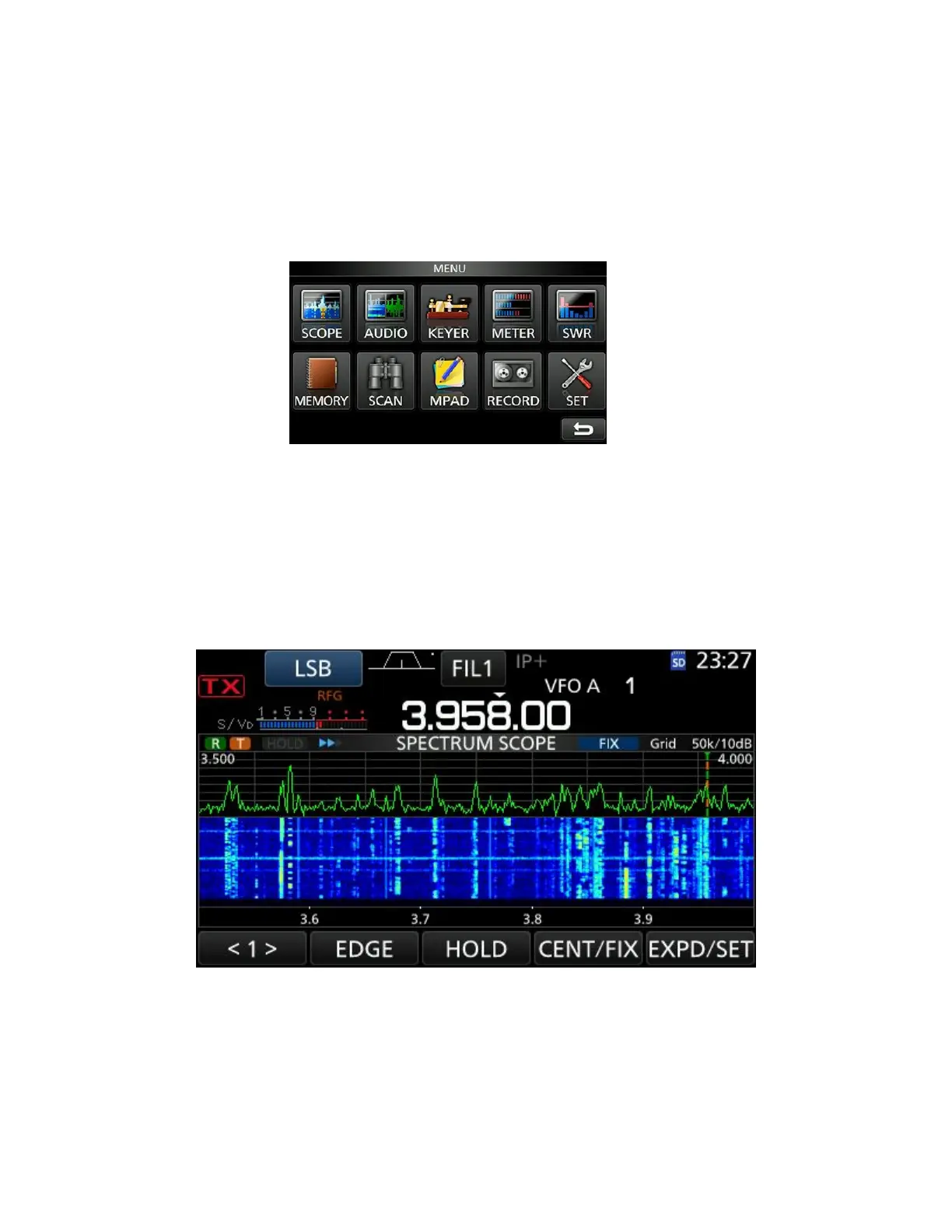

2. Press the “Menu” button (10) and the Menu screen will appear.
3. Press the “Scope” icon to bring up the Waterfall display. Press the
“Return Key” icon [bottom right] to go to the waterfall display.

Icom IC-7300 Specifications

General

Product type	Portable CB radio
Product color	Black
Housing material	Steel
Input voltage	13.8 V
Microphone included	Yes
Output power	100 W
Frequency range	0.5 - 70 MHz
Channels quantity	101 channels
Compatible products	AH-2B; AH-4; AH-5NV; AH-710; AH-740; CT-17; HM-219; MB-118; MB-123; OPC-2321; OPC-420; OPC-599; PS-126; RC-28; SM-30; SM-50; SP-23; SP-33; SP-34; SP-35; SP-35L; SP-38; SP-41;
Display type	LCD

Weight and Dimensions

Depth	238 mm
Width	240 mm
Height	94 mm
