Icom IC-7300 Quick Guide

Plug HF jumper into
Antenna connector on the
radio and the TR input on
the SWR meter
Plug Power Cord
into AC power
Plug power cable into Andersen
Power Pole connector on Power
Supply and into Radio power
connector after verifying you have
13.8 vdc on the power supply
Connect Antenna Feed
Line into the ANT
connector on the SWR
meter
Connect the SWR meter
power cord to the power
jack on the rear of the
SWR meter and to the
Andersen Power Pole
connector on the power
supply

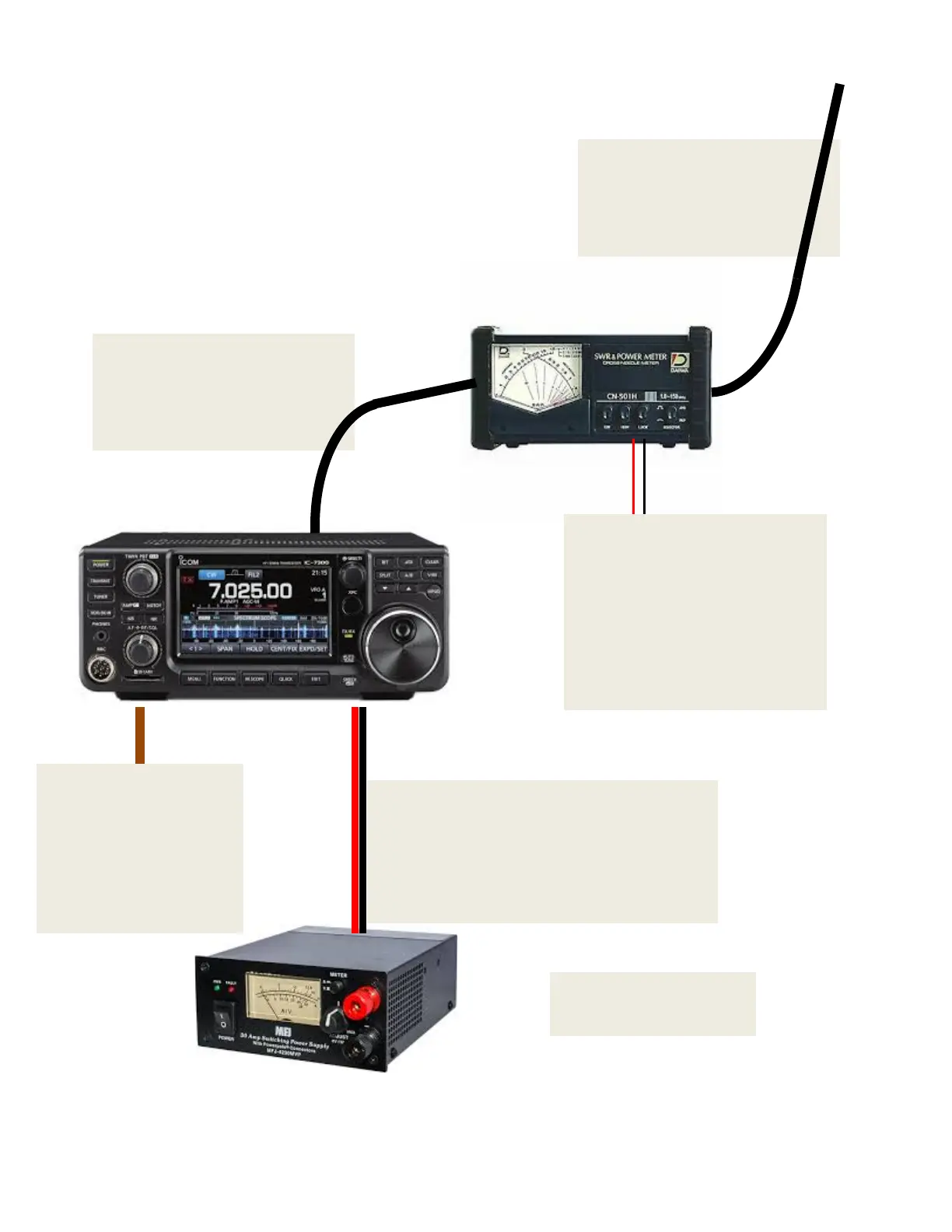

IC-7300 Radio Kit
Connection Diagram
Connect the ground
lead to the
Andersen Power
Pole Connector on
the rear of the radio
and to ground.

Icom IC-7300 Specifications

General

Product type	Portable CB radio
Product color	Black
Housing material	Steel
Input voltage	13.8 V
Microphone included	Yes
Output power	100 W
Frequency range	0.5 - 70 MHz
Channels quantity	101 channels
Compatible products	AH-2B; AH-4; AH-5NV; AH-710; AH-740; CT-17; HM-219; MB-118; MB-123; OPC-2321; OPC-420; OPC-599; PS-126; RC-28; SM-30; SM-50; SP-23; SP-33; SP-34; SP-35; SP-35L; SP-38; SP-41;
Display type	LCD

Weight and Dimensions

Depth	238 mm
Width	240 mm
Height	94 mm
