Its Mostly About The Receiver

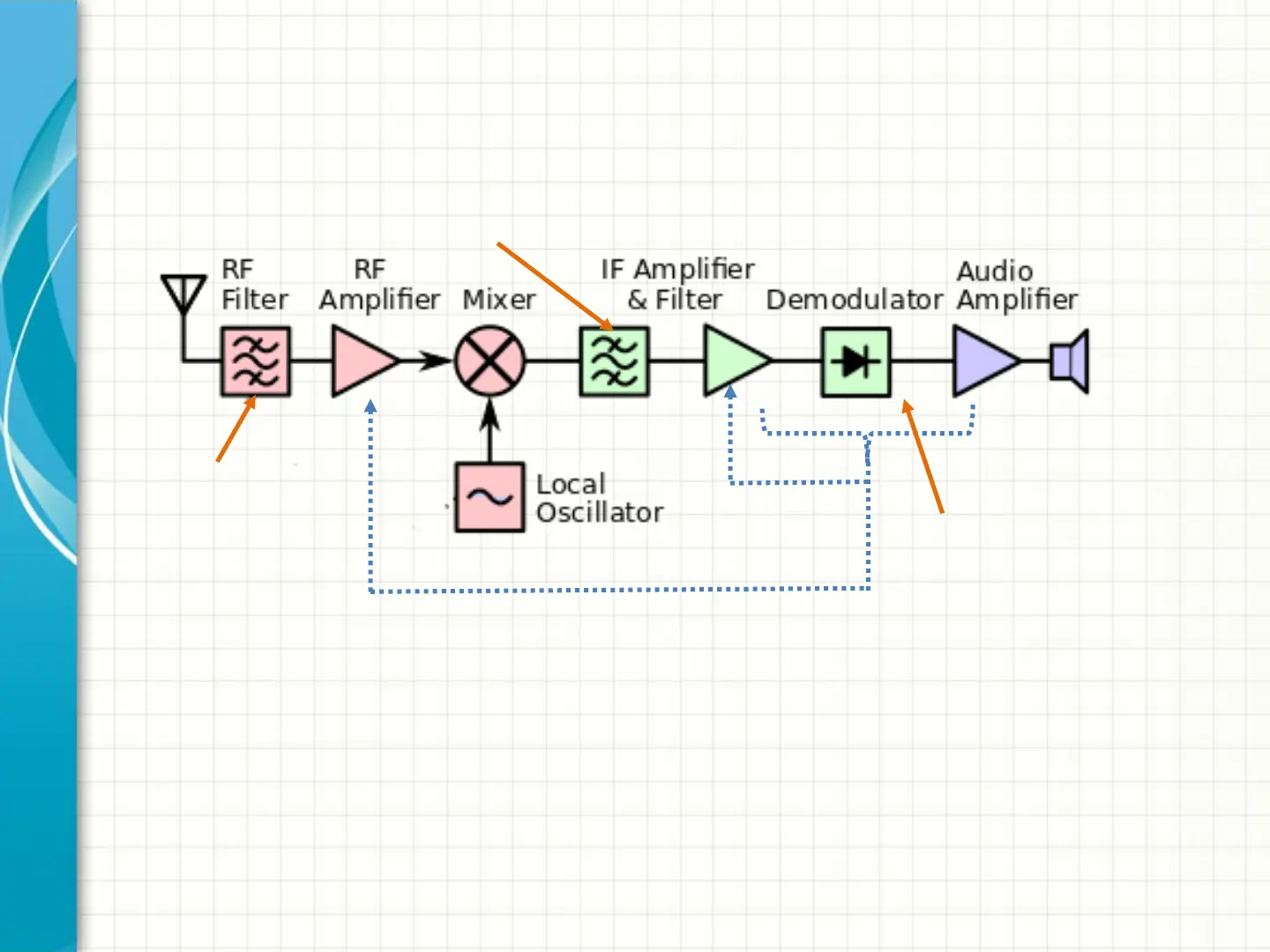

Basic Receiver Elements (Single Conversion Analog)
5
Not to Scale
AGC Loop(s)
Bandpass
Filter
“Roofing”
Filter
“DSP
Filtering
Filters limit Bandwidth to reject unwanted signals, preventing them from
adversely effecting performance
The Automatic Gain Control (AGC) System attempts to maximize Dynamic
Range within Weak Signal Receiver Stages
Critical to maintain linearity to prevent distortion products
DSP Adaptive Filters are use to reduce noise which improves S/N Ratio
(Pre)
