4-2

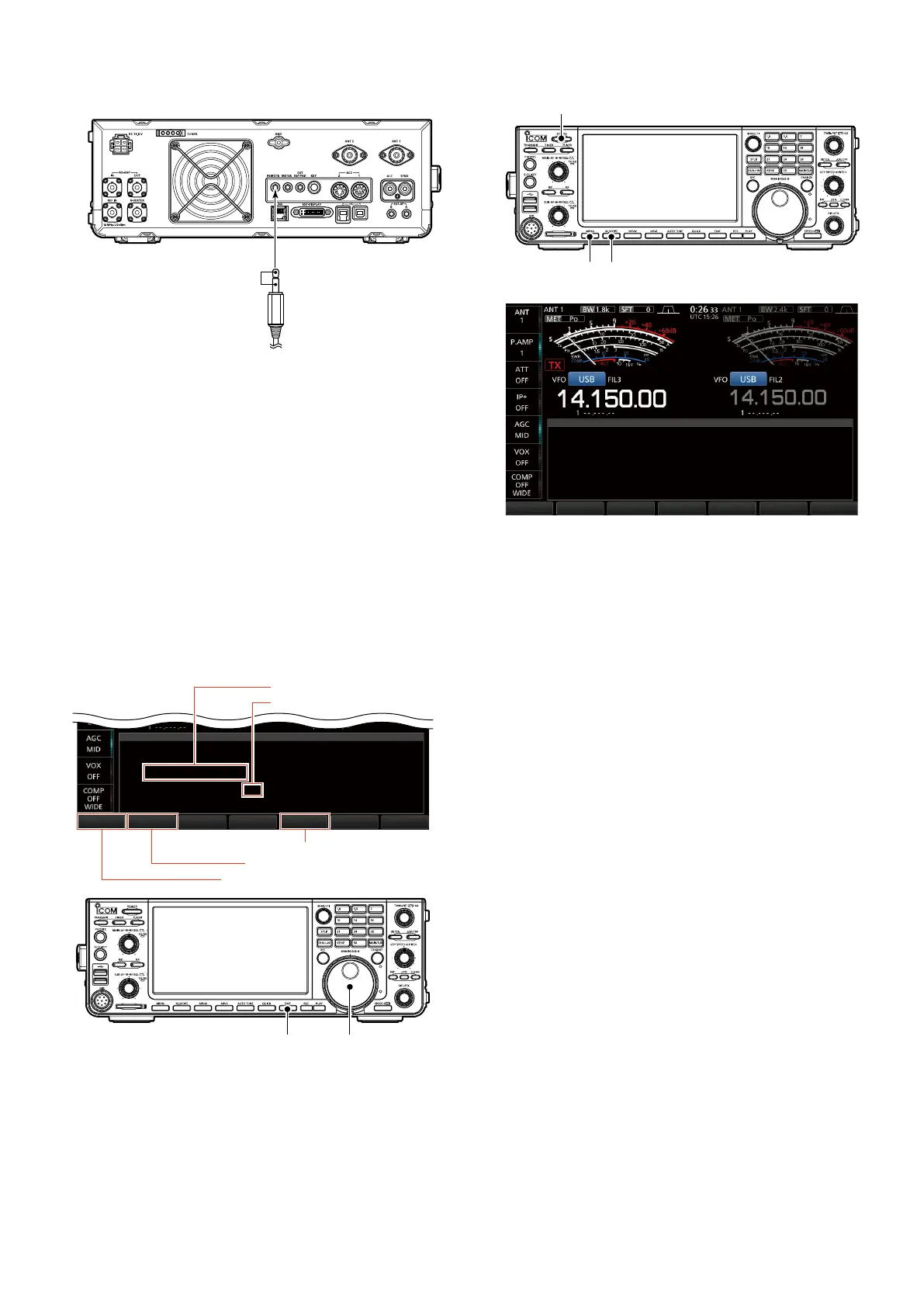

■ ENTERING THE ADJUST MODE
1. Turn OFF the power.
2. Connect the shunt plug to the [REMOTE] connector on
the rear panel. (See below)
to [REMOTE]
3.5 mm (⅛ inch)
monaural plug
(Shunt)
3. While holding down both [MENU] and [M.SCOPE], turn
ON the transceiver power to enter the adjust mode.
4. The adjust mode main menu is displayed.
ADJUST MODE
FRONTPreset TX/ID
)())))
))33
0')3'
X
D'
6
TUNER/REFRX ARX BDSEL ALL
■ KEY ASSIGNMENTS FOR THE ADJUST MODE
• Touch [Z] to select the next adjustment item, touch [Y] to
select the previous adjustment item.
• Rotate [DIAL] to set or modify the adjustment value.
• Touch [SET] to store the adjusted value, and select the
next adjustment item.
• Push [EXIT] to return to the previous screen.
ADJUST MODE
YZ
5;*DLQ
7RWDO*DLQ$35(2))UHI
$
SET
Stores the adjusted value.
Selects the next adjustment item.
Selects the previous adjustment item.
Adjustment item name
Adjustment value
To Next Page
