Icom IC-7610

3-1

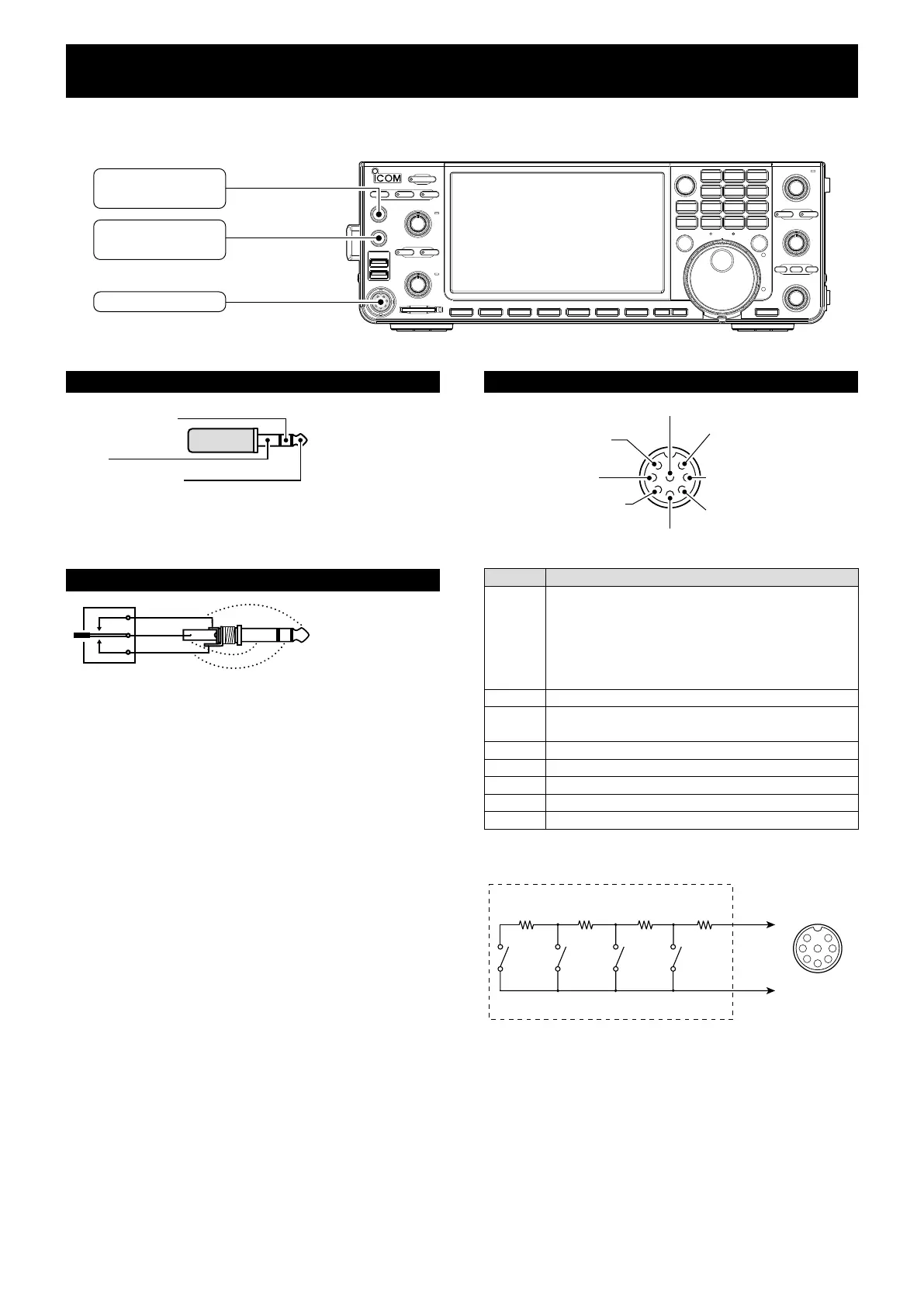

SECTION 3 INTERFACE INFORMATION
● FRONT panel
[PHONES]
• 6.35 mm (¼ in) (d)
[ELEC-KEY]
• 6.35 mm (¼ in) (d)
[MIC]
[PHONES]
Main band audio
Sub band audio
GND
6.35 (d) mm (¼ in)
• Output impedance: 8~16 Ω
• Output level: More than 5 mW into an 8 Ω
load.
[ELEC-KEY]
6.35 (d) mm (¼ in)
Dot
Com
Dash
[MIC]
q
Microphone input
w
+8 V DC output
e
Frequency up/down
r
Squelch line output
t PTT
y GND (PTT ground)
i AF output
u GND
(Microphone ground)
PIN No. DESCRIPTION
q
Microphone input
NOTE: An 8 V DC bias voltage is applied for
Icom microphones. The DC power can
be turned OFF when you use non-Icom
microphones in the “MIC Input DC Bias”
item on the CONNECTORS screen.
w
+8 V DC output (Maximum 10 mA)
e
Frequency up/down
External keypad* input
r
Grounded when squelch opens.
t
PTT
y
PTT/External keypad* ground
u
Microphone ground
i
AF output (varies with the AF control.)
*External keypad
PIN e
PIN y
1.5 kΩ
±5%
1.5 kΩ
±5%
2.2 kΩ
±5%
4.7 kΩ
±5%
S1S2S3S4
1
2
3
4
5
6
7
8
MIC
External keypad
Front panel
view
[MIC]
connector
