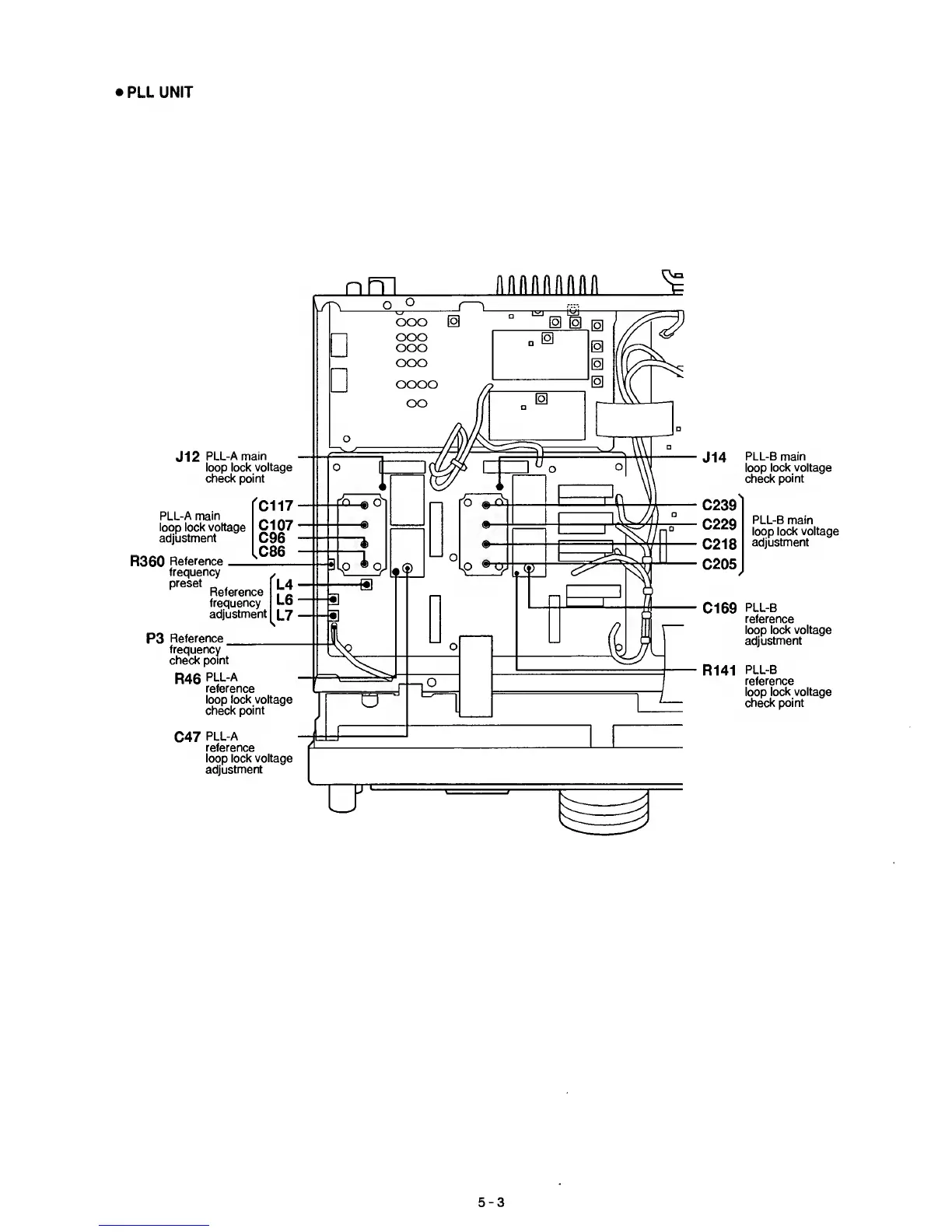

PLL UNIT
J12
PLL-A main
loop lock
voltage
check point
PLL-A main
loop lock voltage
adjustment
R360
Reference
frequency
preset
rcii7
C107
C96
LC86
Reference
frequency
adjustment
L4
L6
L7
P3
Reference
frequency
check point
R46
PLL-A
reference
loop lock voltage
check
point
C47
PLL-A
reference
loop lock
voltage
adjustment
J14
PLL-B main
loop
lock voltage
check
point
C239'
C229
C218
PLL-B main
loop
lock voltage
adjustment
C205J
C169
PLL-B
reference
loop lock voltage
adjustment
R141
PLL-B
reference
loop
lock voltage
check point
5-3
