5-2 TRANSMIT AMPLIFIER ADJUSTMENT (continued)
Select an adjustment item using [2]
/ [8] keys, then set the adjustment value as specifi ed using [DIAL].
ADJUSTMENT ADJUSTMENT CONDITION OPERATION
ADJUSTMENT
ITEM
VALUE
IDLING
CURRENT (@7.4 V)
[PREPARATION]
0 • Supply voltage : 7.4 V 1) Connect an RF power meter
to the antenna connector.
2) Connect a multimeter
between the external power
supply and transceiver.
––
[VHF BAND]
(Hi power)
1 • Displayed freq. : "
"
• TX power : "
*K
"
• Transmitting
• Adjust the current using
[DIAL], then release the PTT
and push [BAND] to store the
adjustment value.
[
KF
]
1.1– 1.2 A
(Mid power) 2 • Displayed freq. : "
"
• TX power : "
/KF
"
• Transmitting
600–700
mA
(Low power) 3 • Displayed freq. : "
"
• TX power : "
.QY
"
• Transmitting
200–300
mA
(S-Low power) 4 • Displayed freq. : "
"
• TX power : "
5.1
"
• Transmitting
[UHF BAND]
(Hi power)
5 • Displayed freq. : "
"
• TX power : "
*K
"
• Transmitting
1.1– 1.2 A
(Mid power) 6 • Displayed freq. : "
"
• TX power : "
/KF
"
• Transmitting
600–700
mA
(Low power) 7 • Displayed freq. : "
"
• TX power : "
.QY
"
• Transmitting
200–300
mA
(S-Low power) 8 • Displayed freq. : "
"
• TX power : "
5.1
"
• Transmitting

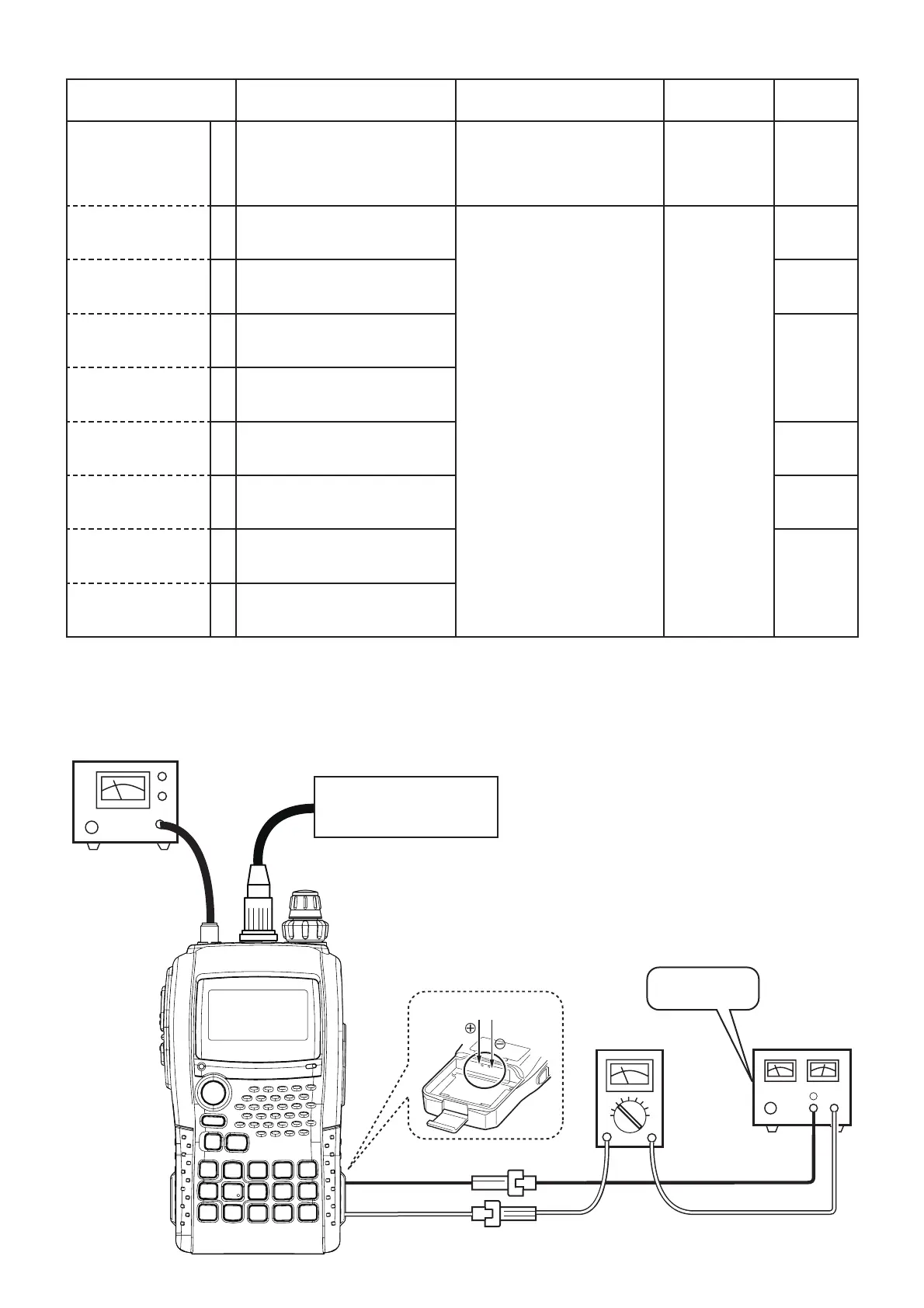

To the battery contact pins
JIG cable
(See the page 5-1)
7.4 V
RF POWER METER
(10 W/50 Ω)
Fusese
(3A)
DC power supply
⊕
−
Black
White
MULTIMETER
(10 mA to 3 A)
+
−
Be sure the polarity.
(4
#(/
5.1
To Next Page
