Icom IC-A23 Service Manual

J1 6510022390 ANT connector BNC-R159 1
S1 7600000210 Encoder TP70N00E20-15F-1903 1
SP1 2510000840 Speaker CS028014-12 1
MP1 8210016991 1903 front panel(C)-1 assembly [ IC-A23 ] 1
8210017131 1903 front panel(C)-1 assembly [ IC-A5 ] 1
MP2 8010017151 1903 chassis-1 1
MP3 8930052580 2378 main seal 1
MP4 8930052601 1903 10-Key (A)-1 1
MP5 8930052650 2378 jack cap 1
MP9 8830001250 ANT connector-101 nut 1
MP11 8930046020 1123 sheet (A)-1 1
MP12 8930044460 1903 contact rubber 1
MP13 8930052620 2378 DC cap 1
MP14 8930044480 1903 lens 1
MP15 8830001340 1903 hexgon nut 1
MP16 8930053150 1903 rear sheet (K) [ IC-A23 ] 1
8930053160 1903 rear sheet (L) [ IC-A5 ] 1
MP17 8930044530 1903 rubber sheet 1
MP19 8610010530 Knob N263 1
MP20 8810008990 Screw PH BT M2 ×10 ZK 2
MP21 8810009510 Screw BT M2 × 4 NI-ZU 10
MP22 8810009630 Screw FH No.0 M2 × 4.5 NI B 2
MP25 8310049350 2378 window plate 1
MP27 8930046000 1903 microphone sponge 1
MP28 8930045940 1903 bottom sheet 1
W1 8900009640 Cable OPC-963 1
EP1 Optional product Antenna FA-B02AR 1
EP2 Optional product Battery BP-200L ACC [A5-USA],[A23-USA]only 1
EP3 Optional product Chager BC-110A [A5-USA],[A23-USA]only 1
MP1 8930044450 1903 belt clip 1
MP2 8010011960 Strap belt HK-005 1
W1 8900009980 Cable OPC-967 ACC [A23-USA]only 1
ZP1 0800005690 Lazer case LC-147 ACC [A23-USA]only 1
7 - 1
Screw abbreviations: PH: Pan head FH: Flat head
NI: Nickel ZK: Black

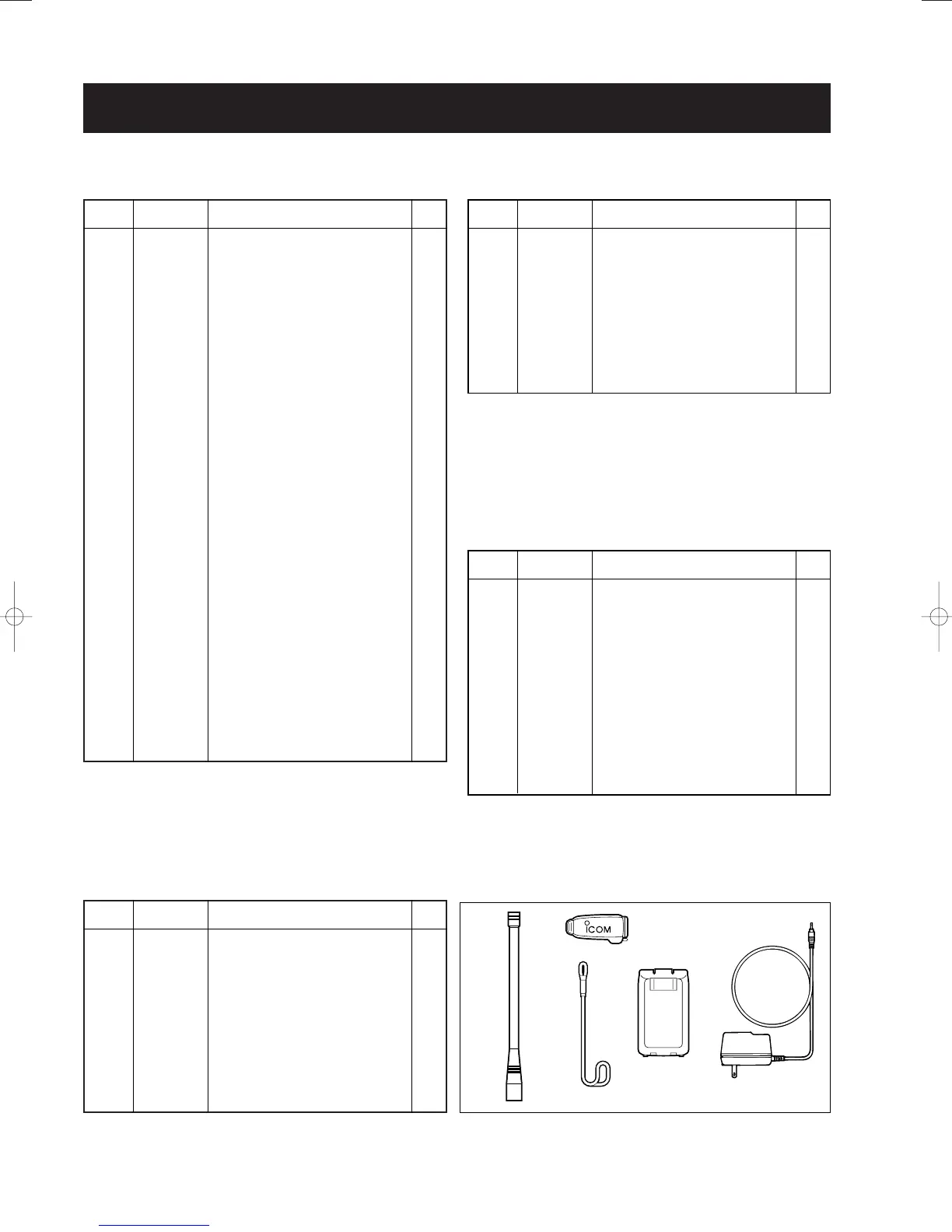

SECTION 7 MECHANICAL PARTS AND DISASSEMBLY
7-1 CABINET PARTS
[CHASSIS PARTS] [RF UNIT]
7-2 ACCESSORIES
EP1
MP1
EP2
EP3
MP2
REF NO.
ORDER
NO.
DESCRIPTION QTY.
QTY.
[LOGIC UNIT]
DS1 5030001860 LCD TTR3845-UPFDCN 1
EP2 8930052880 LCD contact SRCN-2378-SP-N-W 1
MC1 7700002310 Microphone EM-140 1
MP1 8210017030 2378 reflector 1
MP2 8930052681 2378 LCD holder-1 1
MP3 8930053560 Insulation sheet 1
MP4 8930053570 2378 LOGIC sheet 1
MP5 8510013360 2378 LOGIC shield 1
MP6 8930045910 Non-woven sheet BS 1
REF NO.
ORDER
NO.
DESCRIPTION QTY.
MP1 8950004800 1903 contact spring 1
MP2 8410002162 1903 PA heatsink-2 1
MP3 8510013200 2378 VCO case 1
MP4 8510013190 2378 VCO cover 1
MP5 8930053580 2378 RF sheet 1
MP6 8510013340 2378 RF shield 1
MP7 8510013350 2378 VCO shield 1
MP8 8510013450 2378 shield plate 1
MP9 8930041890 Aluminum sheet W 1
REF NO.
ORDER
NO.
DESCRIPTION QTY.
REF NO.
ORDER
NO.
DESCRIPTION
*IC-A5/A23-chg 00.8.23 4:32 PM Page 7 - 1
