Screw abbreviations A, B0, BT: Self-tapping PH: Pan head ZK: Black NI-ZU: Nickel-Zinc SUS: Stainless
7 - 1

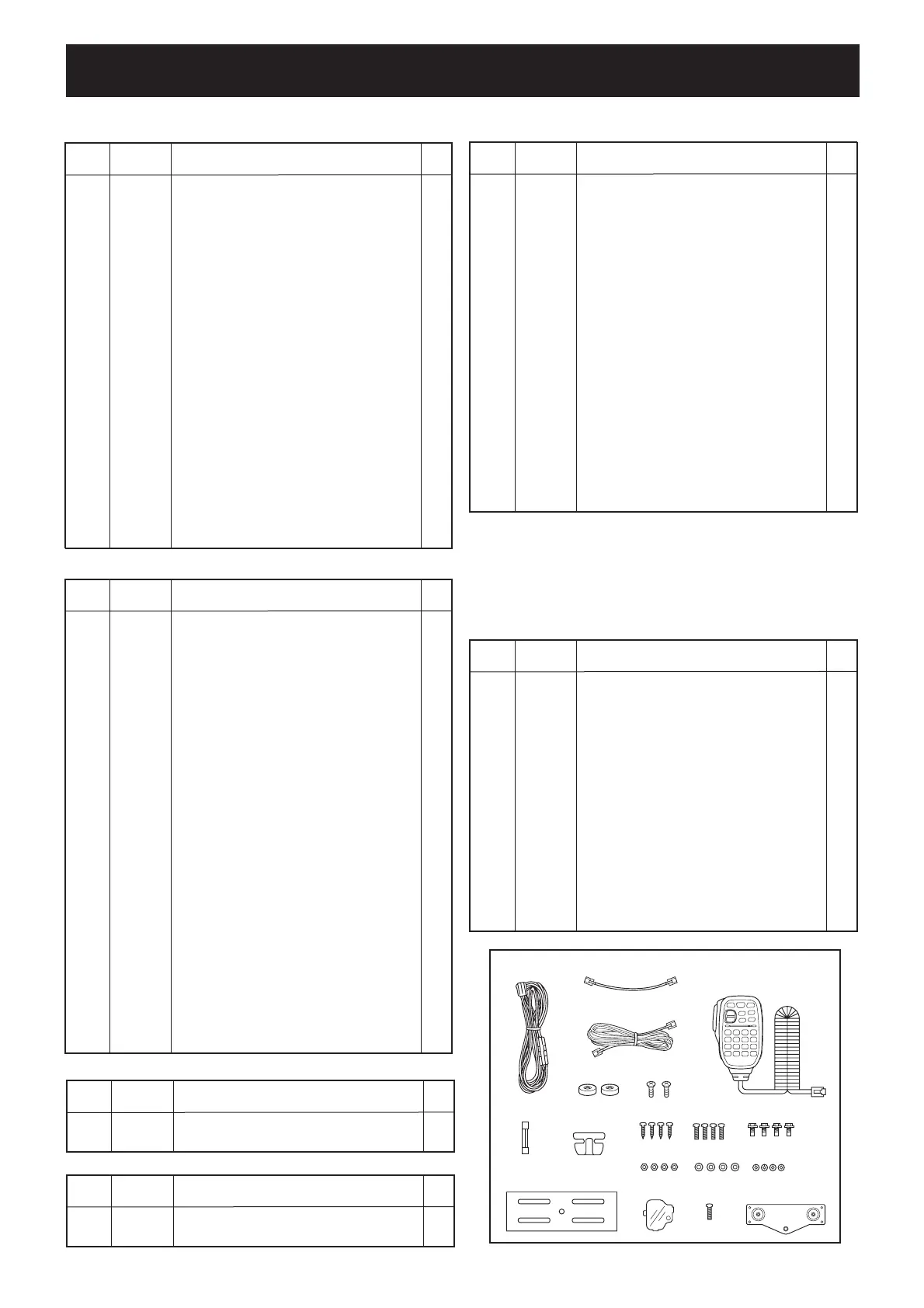

SECTION 7 MECHANICAL PARTS
[CHASSIS PARTS]
REF ORDER
DESCRIPTION
QTY.
NO. NO.
J1 6510004880 MR-DSE-01 1
J2 6510004880 MR-DSE-01 1
P1 6510009580 ZHR-2 1
SP1 2510001160 057P0802 1
MF1 2710000820 EFB0412VHD-6P38 1
W1 9016420020 23/04/140/B09/W01 1
W2 9016420010 23/00/140/B09/W01 1
MP1 8010020640 2969 CHASSIS 1
MP2 8210023550 2969 CHASSIS PANEL 1
MP3 8310068650 2969 MAGNET PLATE 1
MP5 8110009000 2969 U-COVER 1
MP6 8110009010 2969 L-COVER 1
MP7 8110009020 2969 FAN COVER 1
MP8 8930071460 2969 SP SPONGE 1
MP9 8930071380 2969 IC CLIP 1
MP10 8810009611 Screw M2.6X6 ZK3 17
MP12 8810008661 Screw BT B0 3X8 NI-ZC3 (BT) 11
MP13 8810008661 Screw BT B0 3X8 NI-ZC3 (BT) 4
MP14 8810008661 Screw BT B0 3X8 NI-ZC3 (BT) 4
MP15 8810009991 Screw BT B0 3X8 NI-ZK3 (BT) 5
MP16 8810010141 Screw PH M3X30 ZK3 4
MP18 8930014980 59 saran net 1
MP19 8930072260 2969 NET 1
MP20 8930071590 THERMALLY SHEET (BI) 1
MP36 8930016800 Thermal sheet (U) 1
MP38 8930041160 Sheet (BO) 1
MP39 8930018810 Sheet (AA) 1
[CONTROL UNIT]
[ACCESSORIES]
[VR1 UNIT]
REF ORDER
DESCRIPTION
QTY.
NO. NO.
J5 6510025730 HJC0187-010024 1
DS1 5030003040 M6-0103TRM-5 1
S15 2250000570 SW-169 1
S16 2250000570 SW-169 1
MP1 8210023490 2969 FRONT PANEL (Inc. MP19) 1
MP2 8210023500 2969 REAR PANEL (Inc. MP25) 1
MP3 8310068770 2969 WINDOW PLATE(A) 1
MP4 8310068550 2969 WINDOW LINE 1
MP5 8310068560 2969 SUB RING 2
MP6 8310068570 2969 MAIN RING 2
MP7 8610013060 KNOB K-263 1
MP8 8610013070 KNOB K-263 (A) 1
MP9 8610013030 KNOB N-353 2
MP10 8610013040 KNOB N-354 2
MP11 8610013050 KNOB N-355 2
MP12 8310068600 2969 KNOB PLATE 2
MP13 8610011310 KNOB K-229 2
MP14 8610013100 KNOB K-229 (J) 2
MP15 8610013080 KNOB K-229 (K) 1
MP16 8610013090 KNOB K-229 (L) 1
MP17 8610013110 KNOB K-229 (M) 1
MP18 8210023540 2969 REFLECTOR 1
MP19 8930071250 2969 WINDOW SHEET 1
MP20 8930071430 2969 KEY SPONGE 1
MP21 8930071410 2969 KEY SHEET 1
MP23 8930006440 Push spring (F) 2
MP25 8830003020 Bit insert SB-264540-CD 2
MP26 8610007510 Knob spring NO.7800 2
MP27 8610007420 Knob spring NO.6601 2
MP28 8830001010 HEX NUT (A) 2
MP29 8810009221 Screw BT B0 2X8 NI-ZK3 (BT) 8
MP40 8930071860 2969 LCD PLATE 1
MP41 8930072030 2969 LCD FILTER 1
MP42 8930072020 2969 LCD SHEET 1
MP44 8930072050 2969 RBEF SHEET 1
REF ORDER
DESCRIPTION
QTY.
NO. NO.
R1 7210003250 RV-320 1
W1 8900016030 OPC-1666 1
[MAIN UNIT]
REF ORDER
DESCRIPTION
QTY.
NO. NO.
J2 6510023110 3008L-8P8C 1
J3 6510025950 PCB-606 (6P6C) 1
J4 6510023161 DN-508B-6-L 1
J5 6450001430 HSJ1462-01-010 1
J8 6510025940 PJ-3047S 1
J9 6450001440 HSJ1403-01-010 1
W1 8900016070 OPC-1669 1
W2 8900016070 OPC-1669 1
W5 7120000470 ERDS2T0 1
W6 7120000470 ERDS2T0 1
W7 8900016020 OPC-1671 1
MP2* 8510018150 2969 B-VCO CASE 1
MP3* 8510014940 2601 VCO CASE 1
MP4* 8510018150 2969 B-VCO CASE 1
MP5* 8510014940 2601 VCO CASE 1
MP6* 8510016470 2775 VCO CASE 1
MP7* 8510016470 2775 VCO CASE 1
MP8* 8510018140 2969 S-VCO CASE 1
MP9* 8510018140 2969 S-VCO CASE 1
MP10 8510018160 2969 B-VCO COVER 2
MP11 8510014950 2601 VCO COVER 2
MP12 8510016460 2775 VCO COVER 2
MP13 8510016460 2775 VCO COVER 2
MP14 8930060270 2633 M-SHEET 2
MP15 8930059770 2633 M-HOLDER 2
MP16 8930073170 SPONGE(JQ) 1
MP17 8930073180 SPONGE(JR) 1
REF ORDER
DESCRIPTION
QTY.
NO. NO.
MC1 Option HM-133 1
F1 5210000080 FGB 20A 1
W1 Option OPC-1132 1
W2 8900016370 OPC-1712 1
W3 8900016050 OPC-1663 1
MP1 8010016730 150 MOBIL BRACKET (SI) 1
MP2 8930041170 452 FELT (SI) 2
MP3 8820000530 Flange bolt M4X8 NI 4
MP4 8810000951 Screw BT A0 5X16 ZC3 4
MP5 8850000180 Flat washer M5 SUS 4
MP6 8850000500 S-washer M5 SUS 4
MP7 8810000471 Screw PH (+-) M5X12 ZC3 4
MP8 8830000250 Nut M5 SUS 4
MP9 8930007300 MIC hanger 1
MP20 8310068640 2969 CHASSIS PLATE 1
MP21 8810009611 Screw M2.6X6 ZK3 1
MP22 8010020830 2969 BRACKET (Inc. MP2) 1
MP25 6910018710 NDRDY-15060304 2
MP26 8810009611 Screw M2.6X6 ZK3 2
[VR2 UNIT]
REF ORDER
DESCRIPTION
QTY.
NO. NO.
R1 7210003250 RV-320 1
W1 8900016030 OPC-1666 1
*: Refer to SECTION 8 BOARD LAYOUTS.
MC1
F1
W1 W2
MP20
MP3
MP6
MP8
MP5
MP4
MP25
MP26
MP7
MP21
MP1
MP22
MP9
W3
To Next Page
