Icom IC-F2000 series - Panel Description; Front, Top, and Side Panels

■ Front, top and side panels
* Names for the non-display type transceiver
There are three types of transceivers in the IC-F1000 and
IC-F2000 series.
IC-F1000/F2000: Non-display type
IC-F1000S/F2000S: Simple type [display + 4 keys (P0–P3)]
IC-F1000T/F2000T: 10-key type [display + 4 keys + 10-key pad]

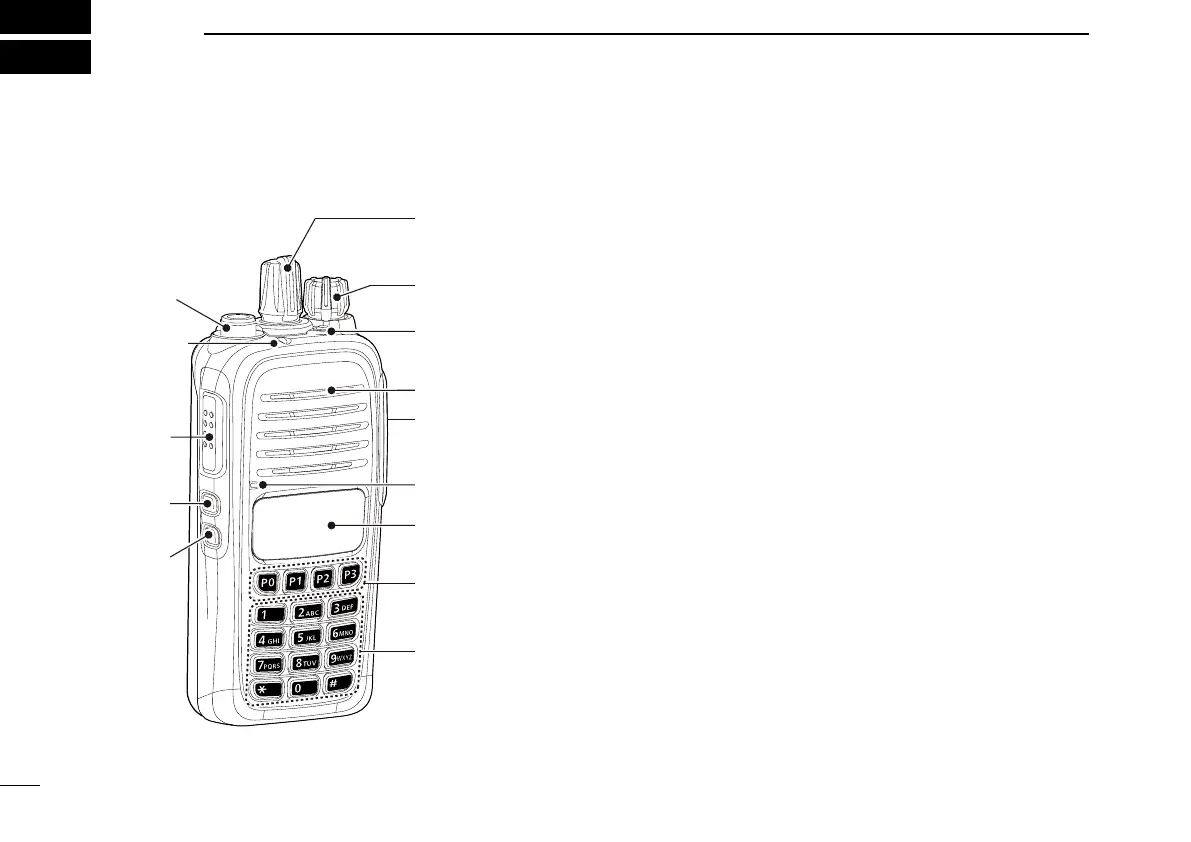

The illustration is for the 10-key type.
Your transceiver may have a FUNCTION DISPLAY, [P0]–
[P3], or 10-KEY PAD, depending on the transceiver version.
q ROTARY SELECTOR
Rotate to select the preset memory channels. ➥
w VOLUME CONTROL [VOL]
Rotate to turn the power ON or OFF and to adjust the ➥
audio level.
e DEALER-ASSIGNABLE KEY [Emer]
A desired function can be programmed by your dealer. ➥
1
1
PANEL DESCRIPTION
w VOLUME
CONTROL [VOL]
e [Emer]
Speaker
r SPEAKER-
MICROPHONE
JACK
Microphone
t FUNCTION
DISPLAY
y [P0], [P1],
[P2], [P3]
10-KEY PAD
i PTT
SWITCH
[PTT]
o LED
INDICATOR
!0 ANTENNA
CONNECTOR
u [UP]/
[Upper]*
u [DOWN]/
[Lower]*
q ROTARY
SELECTOR
