Icom IC-F4003 User Manual

5 - 6

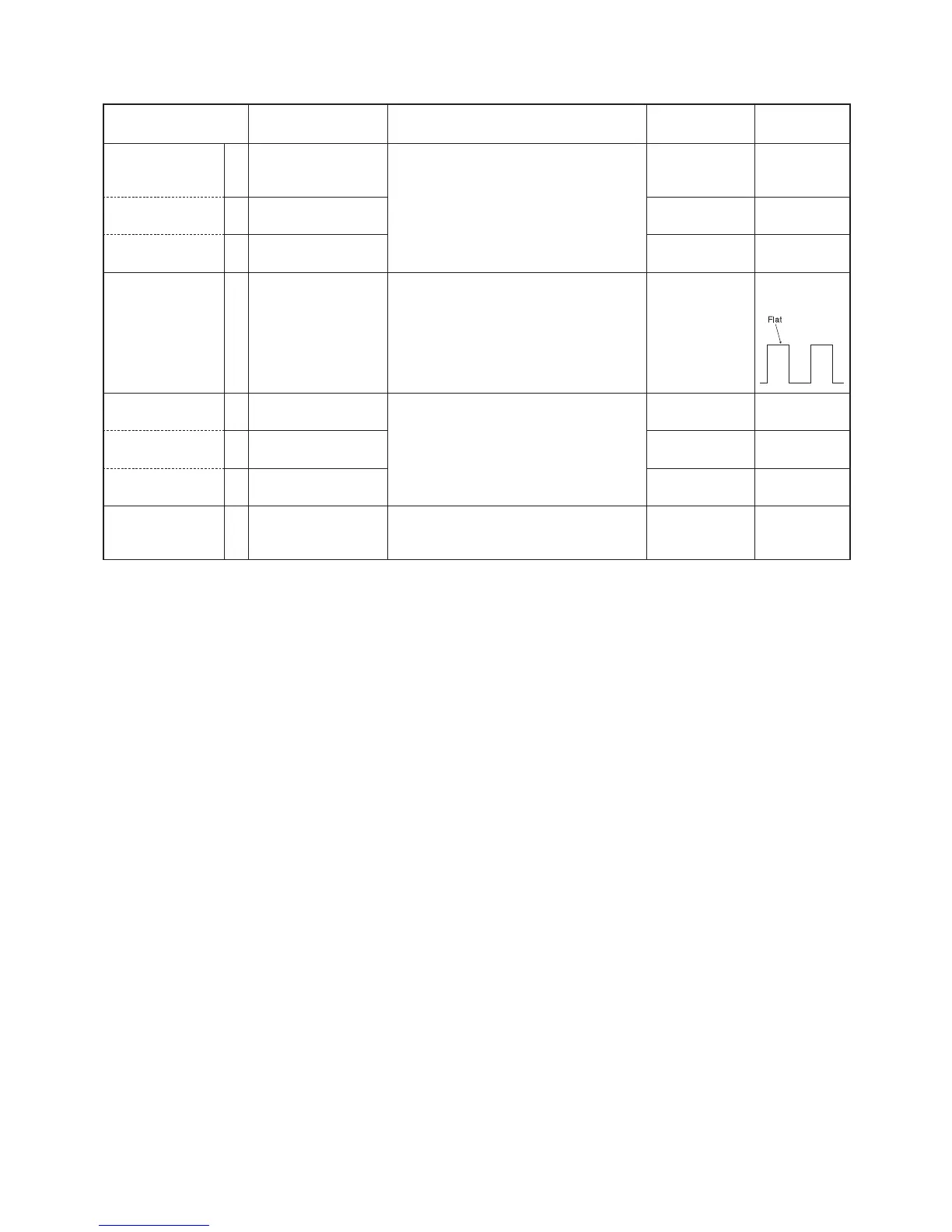

ADJUSTMENT
TRANSCEIVER’S
CONDITION
OPERATION
ADJUSTMENT
ITEM
VALUE
TX OUTPUT
POWER
(Hi power)
1 • CH. : 4
• Transmitting
• Connect an RF power meter to the
antenna connector. [Power (Hi)] 4.0 W
(L2 power) 2
• CH. : 5
• Transmitting
[Power (L2)] 2.0 W
(L1 power) 3
• CH. : 6
• Transmitting
[Power (L1)] 1.0 W
MODULATION
B
ALANCE
1 • CH. : 7
• Transmitting
• Connect a modulation analyzer with an
oscilloscope to the antenna connector
through an attenuator.
[BAL]
Square
waveform
FM DEVIATION
( Narrow mode)
1 • CH. : 8
• Transmitting
• Connect a modulation analyzer to the
antenna connector through an attenuator.
[MOD N C]
±2.05 to ±2.15
kHz
( Mid
dle mode)* 2 • CH. : 9
• Transmitting
[MOD M C]
±3.25 to ±3.35
kHz
( Wide mode) 3
• CH. : 9
• Transmitting
[MOD W C]
±4.05 to ±4.15
kHz
CTCSS/DTCS
DEVIA
TION
1 • CH. : 10
• Transmitting
• Connect a modulation analyzer to the
antenna connector through an attenuator. [CTCSS/DTCS]
±0.65 to ±0.75
kHz
*; [EUR] versions only
5-3 TRANSMIT ADJUSTMENTS
1) Select an adjustment item using [
↑
]/[
↓
] on the PC's keyboard.
2) Set or modify the adjustment value as specifi ed using [
←
]/[
→
] on the PC's keyboard, then push [ENTER].
